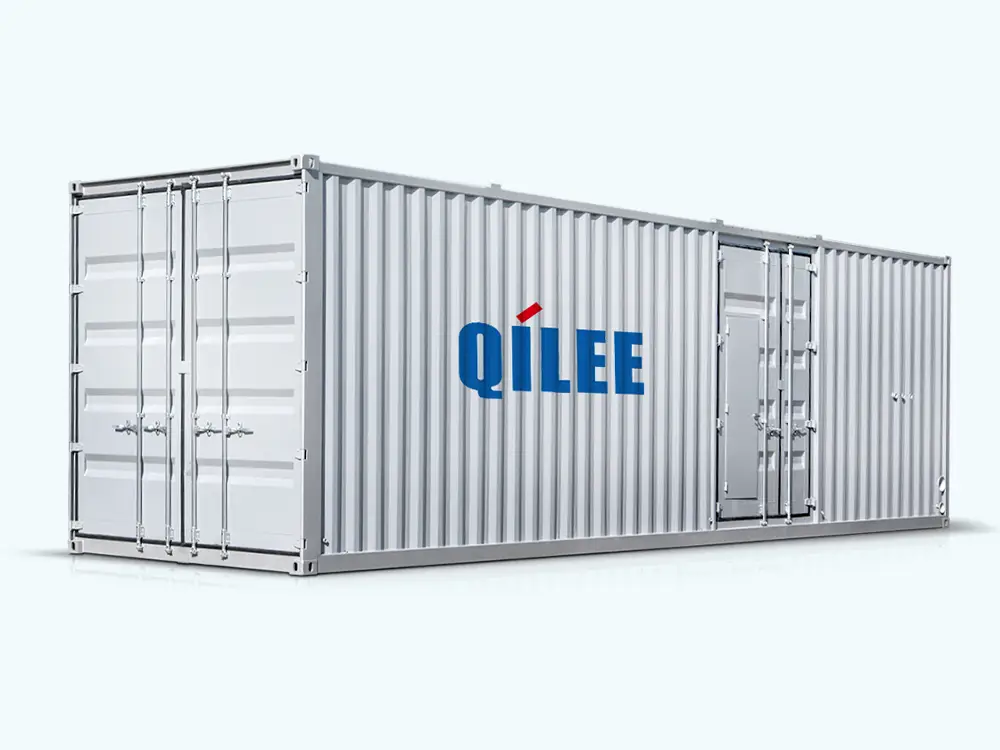

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology) 1

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology) 2

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology) 3

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology) 4

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology)

Efficient, Mobile, and Eco-Friendly Solution for Domestic Sewage Treatment Across Towns, Rural Areas, Resorts & Islands
Our containerized decentralized sewage treatment equipment integrates advanced AO (Anaerobic-Oxic) process with MBR (Membrane Bio-Reactor) technology, offering a turnkey solution for domestic sewage treatment in decentralized scenarios. Designed in strict compliance with international ISO container standards, the equipment features rapid deployment, compact footprint, and intelligent operation. It effectively resolves the challenges of sewage treatment in areas lacking perfect municipal pipe networks, such as rural regions, remote resorts, and island areas, ensuring stable effluent quality that meets or exceeds relevant international and local discharge standards.

Inquiry

Write a Review

Product Features

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology) 5

Rapid Deployment & Plug-and-Play

All components are pre-installed in standard containers, requiring only a solid foundation for placement. It can be put into operation immediately after connecting water and electricity, greatly shortening the construction cycle.

Compact Footprint

The integrated design saves 60% of the area compared with traditional sewage treatment plants, suitable for areas with limited space.

Intelligent Operation & Maintenance

Equipped with IoT monitoring module and intelligent control system, realizing automatic operation, remote monitoring, fault alarm, and diagnosis. It can achieve unattended operation, reducing labor costs.

Durable & Corrosion-Resistant

The container body adopts anti-corrosion materials, and core components (such as aeration discs, MBR modules) are from international well-known brands, ensuring stable operation in harsh environments (high temperature, humidity, etc.).

Modular Expansion

Multiple containers can be connected in parallel to meet the needs of different treatment scales (from 30m³/d to 1000m³/d), suitable for both small-scale villages and large-scale resorts.

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology) 11

Energy-Saving & Low Operating Cost

Adopts high-efficiency submersible blowers and energy-saving pumps, with low power consumption. The simple maintenance process further reduces the overall operating cost.

Core Technology: AO + MBR Integration

The synergy of AO process and MBR technology achieves efficient removal of pollutants while ensuring superior effluent quality, making it a leading solution in decentralized sewage treatment.

AO (Anaerobic-Oxic) Process

Anaerobic Stage

Anaerobic bacteria decompose macromolecular organic substances (such as proteins and polysaccharides) into small-molecule organics (organic acids, alcohols, etc.), reducing the load for subsequent treatment. Polyphosphate-accumulating organisms (PAOs) release phosphorus, laying the foundation for phosphorus removal.

Oxic Stage

Aerobic microorganisms oxidize and decompose organic substances into carbon dioxide and water. Nitrifying bacteria convert ammonia nitrogen (NH₃-N) into nitrates (NO₃⁻) through nitrification, while PAOs absorb phosphorus in excess, realizing effective nitrogen and phosphorus removal.

Technology Advantages

Superior Effluent Quality

The effluent is clear and transparent, meeting the first-class A standard of GB18918-2002 (Discharge Standard of Pollutants for Municipal Wastewater Treatment Plants) or relevant international standards, and can be reused for irrigation, landscape, and other purposes.

High Pollutant Removal Rate

COD, BOD₅, SS, NH₃-N, TN, and TP removal rates reach over 90%, 95%, 99%, 90%, 85%, and 85% respectively.

Low Sludge Production

Operates under high volume load and low sludge load, significantly reducing residual sludge output and sludge disposal costs.

Technical Parameters

Parameter	Specification	Specification
Treatment Capacity	30-100 m³/d ( integrated single container)	100-1000 m³/d ( combine)
Inlet Water Type	Domestic Sewage	Domestic Sewage
COD Removal Rate	≥90%	≥90%
BOD₅ Removal Rate	≥95%	≥95%
SS Removal Rate	≥99%	≥99%
NH₃-N Removal Rate	≥90%	≥90%
TN Removal Rate	≥85%	≥85%
TP Removal Rate	≥85%	≥85%
Effluent Standard	A Standard or Customized International Standards	A Standard or Customized International Standards
Power Supply	380V/50Hz (or customized according to local voltage)	380V/50Hz (or customized according to local voltage)
Container Standard	ISO 20ft/40ft Standard Container	ISO 20ft/40ft Standard Container

Note: The above parameters are based on conventional design using surface water as the raw water source. For special raw water (e.g., high fluoride, high arsenic, brackish water, etc.), additional processes (such as RO Reverse Osmosis, Ion Exchange, etc.) will be equipped. The finished water quality can meet the "Standards for Drinking Water Quality" (GB 5749-2022) or even higher standards.

MBR (Membrane Bio-Reactor) Technology

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology) 18

High-Efficiency Solid-Liquid Separation

MBR membranes with pore sizes ranging from 0.01 to 0.4μm act as a precise "sieve", effectively retaining activated sludge, microorganisms, colloids, and suspended solids. Only water and small-molecule substances can pass through, ensuring effluent turbidity is close to zero.

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology) 19

Stable Effluent Quality

Compared with traditional sedimentation tanks, MBR technology achieves more reliable sludge-water separation, eliminating the risk of sludge bulking. The extended sludge retention time (SRT) facilitates the decomposition of refractory organics by slow-growing microorganisms, further improving treatment efficiency.

Containerized Decentralized Sewage Treatment Equipment (AO+MBR Technology) 20

Membrane Fouling Control

Equipped with automatic aeration scouring system, the equipment effectively prevents excessive membrane fouling, ensuring long-term stable operation and reducing maintenance costs.

Wide Applications

The containerized design and flexible operation make the equipment suitable for various decentralized scenarios, providing customized solutions for different water treatment needs:

19a4a38a-1def-4cb0-b3b1-8121e67284e3 (2)

Rural & Town Areas

Ideal for villages, towns, and communities lacking municipal sewage treatment facilities, resolving the problem of scattered domestic sewage discharge and protecting rural water environments.

Resorts & Scenic Spots

Meets the sewage treatment needs of resorts, guesthouses, and scenic spots, ensuring environmentally friendly operation without affecting the ecological landscape.

0-Containerized Decentralized Sewage Treatment Equ

Islands & Remote Areas

Compact structure, easy transportation by sea or land, and independent operation capability make it suitable for island settlements, offshore platforms, and other remote areas.

Other Scenarios

Also applicable to construction camps, military camps, rural schools, and small-scale commercial facilities (such as rural supermarkets and hotels).
