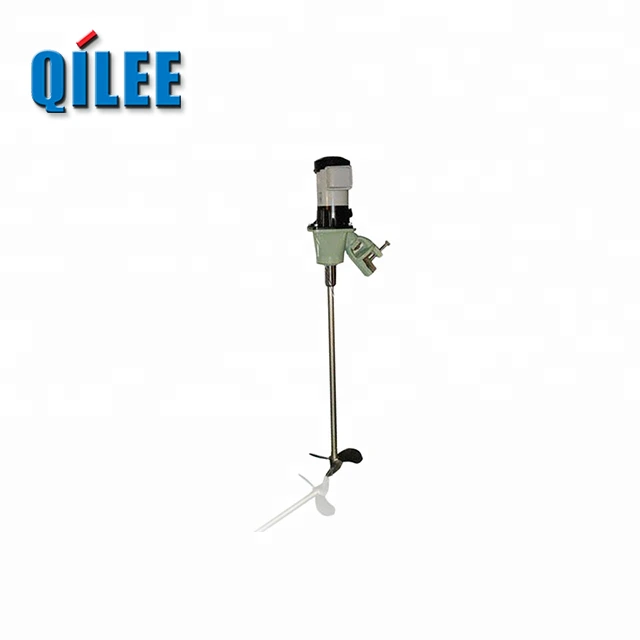

Portable Water Tank Industrial Agitator Cycloid Gear 0.1-1.5kW 1

Portable Water Tank Industrial Agitator Cycloid Gear 0.1-1.5kW 2

Portable Water Tank Industrial Agitator Cycloid Gear 0.1-1.5kW 3

Portable Water Tank Industrial Agitator Cycloid Gear 0.1-1.5kW 4

Portable Water Tank Industrial Agitator Cycloid Gear 0.1-1.5kW 5

Portable Water Tank Industrial Agitator Cycloid Gear 0.1-1.5kW 6

Portable Water Tank Industrial Agitator Cycloid Gear 0.1-1.5kW

A compact portable water tank industrial agitator with a cycloid gear drive, available in 0.1–1.5 kW, designed for efficient mixing in tanks, basins and small industrial vessels. Key selling points: cycloid gear gives high torque, smooth low-noise operation and long service life; multiple power options and compact portable design make it easy to install and match different mixing needs; energy-efficient and low-maintenance construction reduces downtime. Users benefit from corrosion-resistant materials, stable speed control and wide applicability across wastewater, chemical, food and fermentation processes.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Place of Origin:

China

Inquiry

Write a Review

Max. Loading Volume (L)

600

barrel volume (l)

200

Customerization

Yes

Rarefied Liquid(L)

600

Certification

Max. Loading Capacity

600L

Warranty

1YEAR

After-sales Service Provided

Online support

Medium Viscosity(L)

200

Diameter of Blade

200mm

Diameter of shaf

19mm

Length of shaft

800mm

Material

SUS304

key selling points

Automatic

Power (kW)

0.1

dimension(l*w*h)

customize

additional capabilities

Mixing

product type

Paint

mixer type

Agitator

voltage

220V/380V

Power

100W

Application

Chemicals Processing, Liquid

Product name

Industrial Agitator

Applicable Industries

Construction works

Condition

New

weight (kg)

place of origin

Shanghai, China

Portable, Compact, Sealed, Efficient

The Portable mixer with a cycloid-geared 0.1–1.5 kW drive delivers steady medium-low speed agitation and high torque for consistent, efficient blending of low-to-medium viscosity liquids in tanks and portable water systems. Its compact, portable form comes in vertical, side-entry or handheld styles with robust stainless-steel construction (standard SUS304, optional SUS316 or rubber coating) and customizable motors (including ex-proof) for chemical compatibility and long service life. Packaged in standard export cartons with 3–20 day lead times and expert model-selection support, it ensures secure delivery and the right mini-agitator performance for your application.

Here are six four-word subtitle options:

This Portable mixer is a compact cycloid-geared industrial agitator for portable water tanks, delivering 0.1–1.5 kW and optimized for medium‑low speed agitation with a wide range of reduction ratios to handle low- to medium-viscosity liquids. Built with SUS304 as standard (SUS316 or rubber-coated options available) and offered in vertical, side-entry, portable or pneumatic configurations with optional explosion-proof motors, its customizable shaft lengths and blade diameters adapt to different tank sizes and mixing tasks. The cycloidal gearbox, mini-agitator form factor and accessory options provide efficient power transmission, easy installation, low maintenance and fast delivery, adding practical value for dosing, sludge handling and general tank agitation.

Portable Cycloid Agitator Drive

Featuring a cycloid geared speed reduction motor and power options from 0.1 to 1.5 kW, this industrial agitator delivers reliable medium–low speed agitation for both viscous and rarified liquids. As a Portable mixer and popular mini-agitator it provides a wide range of reduction ratios, multiple shaft and blade sizes, and configurable materials (SUS304/SUS316 or rubber coating) with electric or pneumatic and ex-proof motor options. Model selection is supported by specifying mixing media and tank dimensions, and units ship in standard export packing with typical delivery in 3–20 days.

◎ Compact Cycloid Agitator

◎ Flexible Mounting Options

◎ Durable Material Choices

High-torque, Smooth, Compact, Durable

From a decades-old industrial fluid equipment brand, the Portable Water Tank Industrial Agitator Cycloid Gear 0.1-1.5kW combines proven engineering and compact design to deliver a reliable Portable mixer that adapts to a variety of tank sizes. Its 0.1–1.5 kW cycloidal gearbox offers high torque at low speed for gentle yet thorough agitation, with sealed construction and adjustable speed for corrosion resistance and long service life. Key features and advantages include high torque efficiency, low vibration and noise, lightweight portability for fast field deployment, simple mounting and maintenance, and energy-saving operation for industrial and mobile mixing tasks.

Material introduction

Constructed mainly from corrosion‑resistant SUS304 stainless steel, this Portable mixer features cycloid gear reduction components with stainless shafts and blades designed for reliable medium‑low speed agitation. For aggressive or chloride‑rich media it can be supplied in SUS316 or with rubber‑coated blades and shafts to prevent pitting and extend service life. Critical wear parts and seals are chosen to suit the mixing medium, and the 0.1–1.5 kW gearmotor can be specified to match site requirements.

◎ SUS304 Standard

◎ SUS316 Upgrade

◎ Rubber‑Coated Protection

FAQ

What kinds of tanks and liquids is a Portable Water Tank Industrial Agitator (cycloid gear, 0.1–1.5 kW) typically used for?

These agitators are designed for low- to medium-viscosity fluids in portable or stationary tanks: potable water, process water, wastewater, thin chemical solutions, suspensions, and light slurries. The cycloid gear gives high starting torque and smooth motion, making it good for blending, keeping solids in suspension, preventing stratification, and accelerating chemical dissolution in tanks from small portable containers up to medium-sized process tanks. For very viscous fluids, heavy solids loading, or aggressive chemicals, select a model and materials rated for those conditions.

How do I choose the right power (0.1–1.5 kW) and impeller for my application?

Match power to tank volume, fluid viscosity, desired mixing intensity, and impeller type. Lower-power units (0.1–0.3 kW) suit small portable tanks and gentle circulation; mid-range (0.3–0.9 kW) for medium tanks and moderate mixing; higher power (0.9–1.5 kW) for larger portable tanks or tougher suspension tasks. Choose impellers by function: axial‑flow propellers for bulk circulation, radial/turbine impellers for shear and gas dispersion, and pitched paddles for gentle blending. Use manufacturer selection charts or provide tank dimensions, fluid properties, and target mixing time to get an optimal match.

What mounting and installation options are available for portable use?

Portable models commonly offer top-entry mounts with clamped flanges, adjustable brackets, or a trolley/stand mount for moving between tanks. Shafts are available in different lengths; quick-install couplings or cam-lock flanges speed setup. Ensure the shaft immersion depth reaches the correct position (typically a fraction of tank diameter from the bottom) for effective circulation. Confirm motor supply (single- or three-phase) and cable length; for truly mobile installations, integrate a suitable portable power source or extension rated for the motor.

Can this cycloid-gear agitator handle corrosive environments, high temperatures, or food/water applications?

Material compatibility and sealing matter. Stainless steel (304/316) shafts and impellers and food-grade coatings are common for potable and food-contact applications. For corrosive chemicals, specify higher-grade alloys, special coatings, or compatible seal materials. Check mechanical seal ratings and IP enclosure for the motor (e.g., IP55 or better for wet environments). For high temperatures, verify motor and seal temperature limits. Always confirm with the supplier that the specific model and materials meet your chemical, temperature, and regulatory requirements.

What routine maintenance is required and what are common troubleshooting steps?

Routine maintenance: inspect seals and shaft for wear, clean impeller and shaft to prevent buildup, check fasteners and mountings, and lubricate gearbox per manufacturer instructions. Replace worn mechanical seals and bearings promptly. Troubleshooting: if agitation weakens, check for clogged or damaged impeller, loose coupling, gearbox oil level, or motor supply voltage. Unusual noise can indicate bearing or gearbox issues — stop and inspect. Overheating often points to overloading or poor ventilation. Keep a small stock of common spare parts (seals, impeller, coupling) for quick service.

Are there safety or regulatory considerations for portable tank agitation?

Yes. Ensure electrical connections meet local codes and use GFCI protection where required. When working with hazardous, flammable, or toxic liquids, choose explosion-rated motors/certified equipment and follow grounding/bonding procedures to prevent static buildup. Install guards over rotating parts, lock out power before service, and follow confined-space rules when entering tanks. For potable water, use NSF/food-grade materials if required. Always consult the agitator manufacturer’s documentation and applicable safety standards for your industry.
