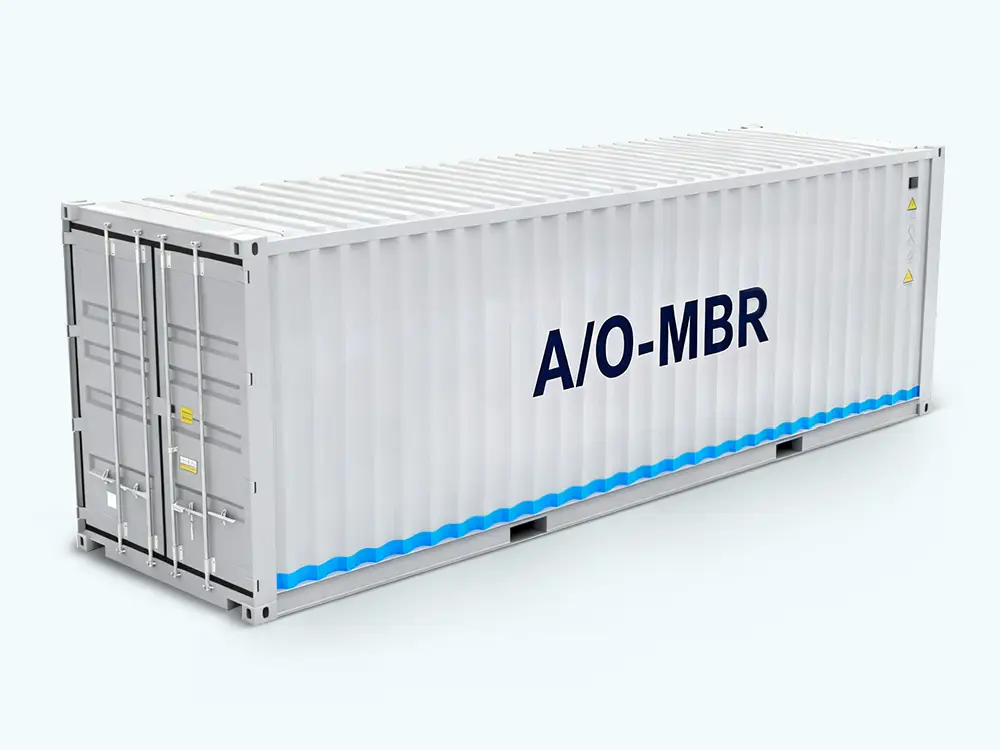

Containerized A/O + MBR Integrated Wastewater Treatment Plant 1

Containerized A/O + MBR Integrated Wastewater Treatment Plant 2

Containerized A/O + MBR Integrated Wastewater Treatment Plant 3

Containerized A/O + MBR Integrated Wastewater Treatment Plant

The QILEE QL-AOMBR Series represents a breakthrough in decentralized, high-efficiency wastewater treatment. This fully integrated system masterfully combines the robust Anoxic-Oxic (A/O) process, renowned for superior nutrient removal, with the solid-liquid separation power of Membrane Bioreactor (MBR) technology.

Housed within a standard 20ft or 40ft shipping container, this plug-and-play solution delivers exceptional effluent quality that meets the most stringent reuse standards. It is engineered for applications where space is limited, deployment speed is critical, and reliable, high-performance treatment is non-negotiable.
● Advanced Biological
● Nutrient Removal with Enhanced Phosphorus Removal in a Single, Mobile Unit

Inquiry

Write a Review

Key Features & Benefits

Exceptional Effluent Quality

The submerged ultrafiltration membranes act as an absolute barrier, producing crystal-clear, disinfected effluent with turbidity < 0.5 NTU and virtually zero suspended solids. Ideal for direct non-potable reuse applications.

High-Efficiency Nutrient Removal

The integrated A/O process is specifically designed for simultaneous removal of BOD, Ammonia Nitrogen, and Total Nitrogen, effectively preventing eutrophication in receiving waters.

Dramatically Reduced Footprint

By eliminating the need for secondary clarifiers and tertiary filters, the MBR system reduces the plant's footprint by up to 60% compared to conventional activated sludge plants.

Plug-and-Play Deployment

Every unit is fully assembled, piped, wired, and factory-tested before shipment. On-site installation is reduced to simple placement, connection to power, and linking inlet/outlet pipes, slashing project timelines from months to weeks.

Containerized A/O + MBR Integrated Wastewater Treatment Plant 9

Full Automation & Remote Intelligence

A comprehensive PLC-based control system manages all operations, including aeration, mixed liquor recycling, and critical membrane cleaning cycles. Optional IoT remote monitoring provides real-time data access and control from anywhere in the world.

Enhanced Process Stability

he MBR system maintains a very high Mixed Liquor Suspended Solids (MLSS) concentration, leading to a resilient process that is highly resistant to shock loads and seasonal variations.

Model Specifications & Capacity List

The table below outlines our standard QL-AOMBR model range, designed to cater to various project scales.

AO-MBR Process Flow Diagram

AO Process Flow Chat

Specifications

Model Number	Avg. Daily Capacity (m³/d)	Avg. Flow Rate (m³/h)	Peak Flow Capacity (m³/h)	Recommended Container Size
QL-AOMBR-5	5	0.25	0.75	20 Ft
QL-AOMBR-10	10	0.5	1.5	20 Ft
QL-AOMBR-20	20	1	2	20 Ft
QL-AOMBR-50	50	2.5	5	40 Ft
QL-AOMBR-100	100	5	7.5	40 Ft
QL-AOMBR-150	150	7.5	11	40 Ft High Cube
QL-AOMBR-200	200	10	15	40 Ft High Cube

Note: Average flow rate is based on 24 hours of operation. All systems are designed to handle peak flows.

Technical Specifications

Containerized A/O + MBR Integrated Wastewater Treatment Plant 15

MBR Modules

High-performance, reinforced PVDF (Polyvinylidene Fluoride) hollow-fiber.

Aeration System

Energy-efficient rotary lobe blowers for bio-zone aeration and dedicated blowers for membrane scouring.

Control System

Centralized PLC with Color Touchscreen HMI (Human-Machine Interface). Pre-programmed with operational and maintenance alarms.

Pumps

All pumps (feed, permeate, recycle, sludge) are from reputable brands, sized for duty and often with standby capability.

Construction

Carbon steel container with international-standard corner castings. Interior and exterior coated with anti-corrosion paint.

Product Application

Decentralized Municipal Sewage Treatment for small communities, suburban neighborhoods, and remote towns.

Wastewater Treatment & Reuse for tourist resorts, hotels, ski resorts, and campsites.

Industrial Wastewater Pre-treatment for food processing, beverage, and poultry plants.

Temporary & Emergency Treatment for construction camps, military bases, and disaster relief operations.

Retrofit & Upgrade Projects for expanding capacity or improving effluent quality at existing plants.

Tell Us More About Your Project !

If you have any questions about water treatment systems, please feel free to contact QILEE.

Stable equipment

Mature technology

Automated operation

Simple operation

Do You Have any Questions? Welcome to Leave Us a Message.

Parameter	Design Influent Value	Guaranteed Effluent Value
Chemical Oxygen Demand (COD) (mg/L)	≤ 500 mg/L	≤ 50 mg/L
Biological Oxygen Demand (BOD₅) (mg/L)	≤ 300 mg/L	≤ 30 mg/L
Suspended Solids (SS) (mg/L)	≤ 350 mg/L	≤ 10 mg/L
Ammonia Nitrogen (NH₃-N) (mg/L)	≤ 35 mg/L	≤ 8 mg/L
Total Nitrogen (TN) (mg/L)	≤ 45 mg/L	≤ 15 mg/L
Total Phosphorus (TP) (mg/L)	≤ 8 mg/L	≤ 0.5 mg/L
Turbidity (NTU)	-	≤ 0.2 NTU
Total Coliforms (CFU/L)	-	≤ 1000 CFU/L
