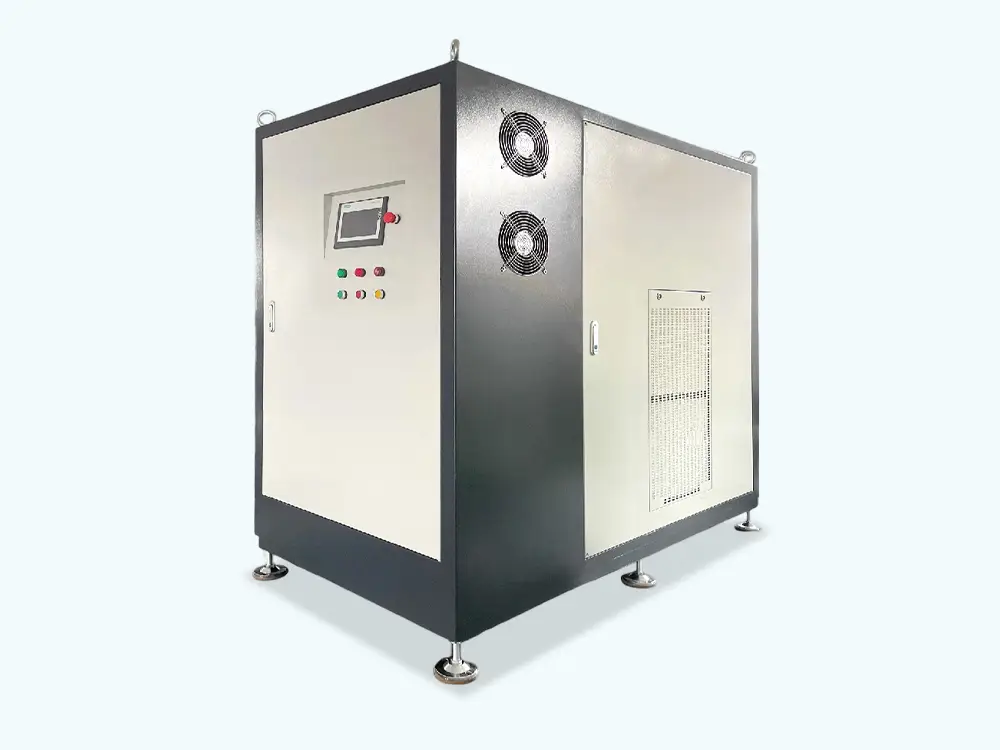

Air Suspension Centrifugal Blower GPT-V5

Drawing on the turbine engine technology of aircraft, the air suspension centrifugal blower is a new-concept single-stage high-speed centrifugal blower. It adopts three core technologies including "high-speed direct-drive motor", "air suspension bearing" and "high-precision ternary flow impeller", opening a new era of high-efficiency, high-performance, low-noise and low-energy-consumption blowers. It is a green and environmentally friendly product with an oil-free lubrication system, long service life and maintenance-free operation.

Inquiry

Write a Review

Six Core Advantages

High Energy Efficiency

Compared with traditional roots blowers, it can reduce power consumption by more than 30%.

Simple Operation & Intelligent Control

Equipped with an intelligent and user-friendly touch screen, it features 5 operating modes and 5-fold protection functions.

Low Noise & Vibration-Free

With noise level below 80 decibels and no vibration, it is eco-friendly and requires no foundation or anchor bolts for installation.

Lubrication-Free & Maintenance-Free

The 100% oil-free air suspension bearing system prevents secondary pollution, eliminating the need for regular maintenance and bearing replacement.

Highly Integrated & Easy Installation

The whole unit is highly integrated with small size and light weight, enabling convenient installation.

Long Service Life & Semi-Permanent Operation

Adopting air suspension bearing technology, it achieves semi-permanent service life of over 20 years with no efficiency loss throughout its lifecycle.

Core Technologies

The air suspension centrifugal blower is a type of single-stage centrifugal blower that does not require a gearbox, speed increaser, or coupling. It is directly driven by a high-speed permanent magnet synchronous motor (PMSM), and the motor's speed is regulated by a variable frequency drive (VFD). The blower impeller is directly connected to the motor, while the rotating shaft is suspended on active air bearings.

High-Speed Permanent Magnet Motor

● Adopts a high-efficiency permanent magnet synchronous motor (PMSM) with an efficiency of ≥96% and a compact overall dimension.
● Enables precise speed regulation, with a maximum speed of up to 100,000 r/min.
● Features a direct connection design between the motor shaft and the impeller, achieving 100% transmission efficiency.
● Has an insulation class of H (maximum temperature resistance of 170°C).
● Motor pole number: 2 poles, suitable for AC 380V/50HZ power supply.

Ternary Flow Impeller

● Made of high-hardness heat-treated aviation aluminum alloy AL7075 (aviation aluminum).
● Precisely manufactured via a 5-axis machining center, with tolerance controlled within 5/1000 mm.
● Boasts a smooth and clean surface, delivering higher efficiency compared with cast impellers.
● Offers high strength, making it suitable for harsh working conditions of high temperature and high pressure.
● Lightweight with low power consumption.
● Realizes 100% power transmission efficiency due to the direct connection between the impeller and the shaft.

Air Suspension Bearing

● Suspends itself by utilizing centrifugal force generated from high-speed rotation.
● Features a simple structure, eliminating the need for auxiliary devices such as lubricating oil supply systems.
● Operates in a non-contact mode, requiring no maintenance or repair.
● Ensures vibration-free operation of the bearing.
● Guarantees start/stop durability, having passed 20,000 ON/OFF cycle tests.

High-Efficiency Cooling System

Adopts an advanced two-stage air-cooled self-cooling method. Separate and well-designed air flow channels are arranged inside and outside the main unit respectively, maximizing the cooling effect of the main unit. This ensures that the blower system can still operate stably and reliably even in hot summer conditions.

parameter

MODEL		GPT-V5	GPT-V8	GPT-V15	GPT-V25	GPT-V30	GPT-V40 G	PT-V45	GPT-V55	GPT-V75	GPT-V90	GPT-V110	GPT-V15	GPT-V185	GPT-V220	GPT-V300
Operating Voltage (+/-15%)V		380V	380V	380V	380V	380V	380V	380V	380V	380V	380V	380V	380V	380V	380V	380V
Permanent Magnet Motor Power (KW)		5	8	15	25	30	40	45	55	75	90	110	150	185	220	300
Flow Rate m³/min
Outlet Pressure Boost (kpa)	25Kpa	9	15	25	30	/	/	/	/	/	/	/	/	/	/	/
	40kpa	6.5	10	20	25	32	38	46	70	95	120	150	200	250	300	400
	50kpa
	60kpa	4.5	8.5	14	18	25	28	34	52	69	82	104	140	158	208	269
	70kpa
	80kpa	3	5	11	15	18	22	28	40	49	70	86	108	133	162	214
	90kpa
	100kpa	/	/	/	/	15	17	22	34	45	53	65	86	104	132	170
	110kpa
	120kpa									39	47	58	77	/	/	/
Noise ( dB )		68	68	78	78	78	78	78	78	78	78	78
Outlet Caliber		DN100	DN100	DN150	DN150	DN200	DN200	DN200	DN200	DN200	DN200	DN300
Control Mode		Automatic/Manual Control
Cooling Method		Natural Air Cooling
LxWxH (mm)	L	700	700	1100	1100	1100	1350	1350	1350	1350	1770	1950
	W	650	650	750	750	750	900	900	900	900	850	1250
	H	970	970	1092	1092	1092	1462	1462	1462	1462	1550	1700
Annotation		For centrifugal fans, the air volume is inversely proportional to the pressure—the lower the pressure, the larger the air volume. Please select the specific model reasonably according to the application requirements.
Annotation		Our company can also provide customized solutions according to customer needs.

Core Technologies

Intelligent Control System

● Maintains stable pressure, flow rate, and rotational speed via a PLC control system for simplified operation, with a Chinese-language human-machine interface; customers can monitor equipment operation in real time through the touchscreen interface.
● Supports remote control via multiple communication protocols through the RS485 port.
● Features anti-surge protection to maximize product safety; offers multiple operating modes and automatic fault alarms for convenient fault cause analysis.

High-Efficiency Frequency Converter

● Adopts a well-known brand frequency converter for high stability and reliability.
● Integrates a minimization algorithm for high-speed rotation.
● Achieves energy-saving high-speed rotation by adjusting frequency (Hz); built-in DC reactor suppresses power harmonics for precise operation and soft start.
● Enables stepless air volume adjustment of the blower within the range of 10–100%.
● The operating frequency of the converter generally ranges from 400Hz to 800Hz depending on blower specifications.
● Equipped with an internal kinetic energy backup capacitor for rapid and safe deceleration and shutdown in case of power failure.

Permanent Magnet High-Speed Main Unit

● The PMSM permanent magnet synchronous motor features an optimized design for high-speed rotation, delivering an efficiency of over 97% with long-term sustained performance and no efficiency degradation; precise speed control is achievable via the frequency converter.
● Precision-machined ternary flow impeller.
● Non-contact air suspension bearing.
● Two-stage air-cooled self-cooling method.

Two-Stage Compression Main Unit

● After first-stage compression, air is not directly supplied to air-consuming equipment but is cooled via a water cooling tank to reduce the suction temperature of the second stage. This enables isothermal compression of air, lowers compression work, and achieves energy-saving effects, resulting in over 30% energy savings compared to existing oil-free screw compressor products.
● The unique two-stage compression design achieves discharge pressures unattainable by conventional single-stage blowers, meeting end-user air supply requirements.

Industry Applications

● Air suspension centrifugal blowers can be used for gas combustion-supporting, metal oxidation, desulfurization oxidation, fermentation, sewage treatment, etc., and are widely applicable to various industrial sectors including metallurgy, chemical industry, chemical fertilizer, petrochemical industry, food, building materials, petroleum, mining, textile, gas station, pneumatic conveying, sewage treatment and so on.

● They are also extensively applied in industries such as high-density aquaculture, municipal sewage treatment, cement, steel, chemical powder conveying, solidification treatment, desulfurization, electroplating, sandblasting, electronics, food, medicine, papermaking, textile, printing and dyeing, biological fermentation, and air conditioning fresh air systems.

a01 (10)

a02 (8)

a03 (2)

a04

a05

a06

a07

a08

a09

a10

Tell Us More About Your Project !

If you have any questions about water treatment systems, please feel free to contact QILEE.

Stable equipment

Mature technology

Automated operation

Simple operation

Do You Have any Questions? Welcome to Leave Us a Message.

MODEL		MPT-22	MPT-30	MPT-37	MPT-45	MPT-55	MPT-75	MPT-90	MPT-110	MPT-150	MPT-185	MPT-220	MPT-300	MPT-375	MPT-450	MPT-600	MPT-750
Power(kW)		22	30	37	45	55	75	90	110	150	185	220	300	375	450	600	750
Pressure Boost(kPa)		Flow Rate m3/min:1atm,20℃；Humidity 65%
40kpa		30	40	50	60	75	100	125	150	200	250	300	/	/	/	/	/
60kpa		20	27	34	42	52	69	82	105	140	160	210	272	320	420	545	640
80kpa		17	23	28	34	43	56	71	84	109	135	164	216	270	325	430	540
100kpa		/	/	22	26	35	48	57	73	96	118	145	190	225	270	360	452
120kpa		/	/	/	/	/	39	48	58	78	95	117	156	200	240	318	400
Size	L	780	780	950	950	950	1250	1250	1350	1350	1450	1450	1450	1450	1450	1800	1800
(mm)	W	1820	1820	1860	1860	1860	1950	1950	2080	2080	2650	2650	2650	2650	2650	3500	3500
	H	1390	1390	1780	1780	1780	2000	2000	2200	2200	2600	2600	2600	2600	2600	3000	3000
Weight(kg)		470	470	470	700	1250	1250	1450	1500	1500	2300	2900	2900	2900	2900	3500	3500
Pipe Diameter		DN150	DN150	DN200	DN200	DN200	DN300	DN300	DN300	DN400	DN400	DN400	DN400	DN500	DN500	DN600	DN600
