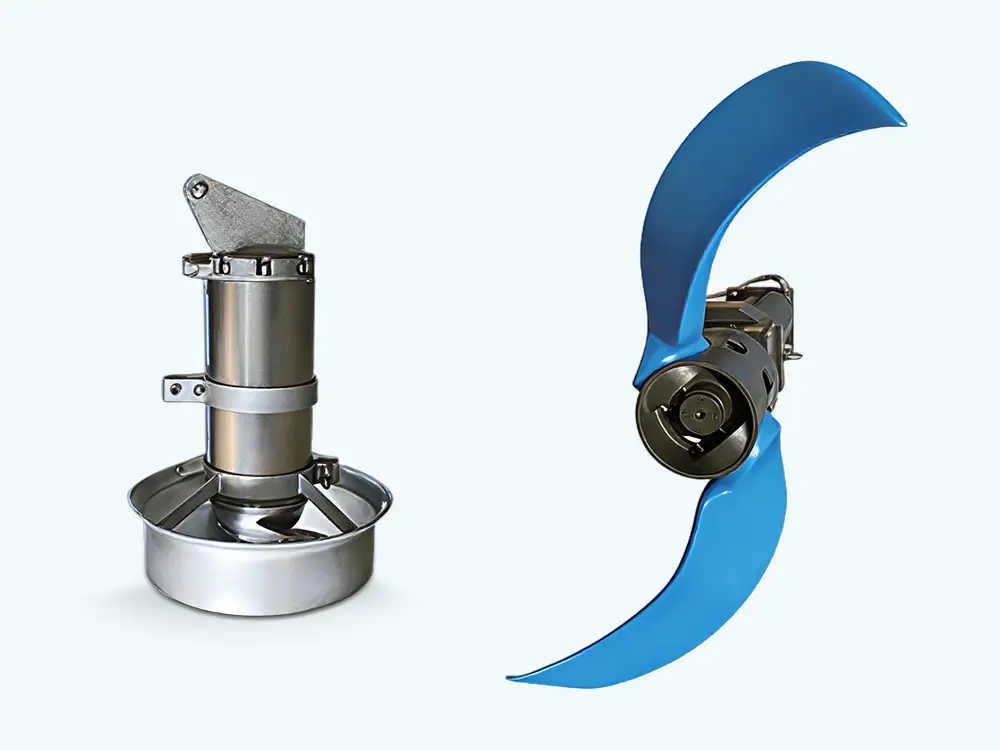

Submersible mixer

Purpose

The submersible mixers in our company include mixing agitator and low-speed flow propeller, mainly used for: The purposes of mixing, agitating and making ring flows in the process of municipal and industrial sewage treatment: activated sludge tank, bioreactor tank, mixing tank,sludge silos, equalizing reservoir, sewage tank and etc. ;

The maintenance equipment for the landscape water environment, improving the quality of the water body; Creating water flow, effectively preventing the sedimentation of the suspended substances.

Inquiry

Write a Review

Features

● The two rows of independent mechanical sealing ensure the long-term and reliable operation of the submersible motor.

● The international well-known high-quality bearings have longer service life, which are maintenance free.

● The unique sealing design for the cables removes the hidden danger of water leakage for the cables.

● The shaft of the motor employs the stainless steel, and the rotors are inspected with the use of dynamic balancing,

● leading to smooth rotation.

● The in-built leakage sensor and the device for the overtemperature protection for the windings of the stator( No leakage sensor for PJ 0.37/6 or PJ 0.55/4).

● The mixer agitators have the stainless steel pressing impeller, which are of the sweptback shape through the optimized design, resulted in high efficiency and self-cleaning function.

● The vanes of the low-speed flow propeller are made of enhanced PU, which are sweptback shape, have the self-cleaning function, the smooth and streamlined propeller surface distributes the propelling power equally.

Mixing agitator (With dome)

Mixing agitator

● On the low-speed flow propeller, all the tightening pieces which will contact media employ the stainless-steel material;

● The decelerator employs integrated reducer with high safty coefficient, whose standard configuration is CYCLO, you can also choose helical gear speed reducer.

Low-speed flow propeller

Conditions of usage

● The highest temperature of the media shall not exceed 40℃

● The pH value of the media: 5~9

● The density of the media shall not exceed 1150kg/m3

● The depth of submersion shall not exceed 20m

● The electric power supply: 380V, 50Hz

● The motor: F class insulation and in accordance with IP68, continuous operating in 24hr

● The submersible mixer must operate in the complete submersion into water

Parameters

Construction

The structure will be different according to the power.

NO.	Name	Material
NO.	Name	GB	JIS
1	Propeller	0Cr19Ni10	SUS304
2	Lock nut	0Cr19Ni10	SUS304
3	Mechanical seal	SiC-SiC	SiC-SiC
4	Mechanical seal stand	0Cr19Ni10	SUS304
5	Front bearing support	HT200	FC200
6	Main shaft	2Cr13	SUS420J1
7	Watertight head	Vulcanized rubber	VR
8	Roller	0Cr19Ni10	SUS304
9	Frame	0Cr19Ni10	SUS304
10	Bearing	-	-
11	Inner hexagonal screw	0Cr19Ni10	SUS304
12	Sheath	0Cr19Ni10	SUS304
13	O-type sealantring	Nitrile butadiene-70/NBR-70	NBR-70
14	General flat key	45	S45C
15	Wheel clamp ring	0Cr19Ni10	SUS304

NO.	Name	Material
NO.	Name	GB	JIS
1	Propeller	GRP	GRP
2	Output shaft	2Cr13	SUS420J1
3	End cap	HT200	FC200
4	Bolt	0Cr19Ni10	SUS304
5	Deceleration cabinet	HT200	FC200
6	Bearing	-	-
7	Stator shaft	2Cr13	SUS420J1
8	Sheath	HT200	FC200
9	Splicing kits for power cable	-	-
10	Mechanical sealing	SiC-SiC	SiC-SiC
11	Wheel boss	HT200	FC200

Pump model		Motor power(kW)	Rated current(A)	Rpm of propeller (mm)	Diameter of propeller (r/min)	Thrust(N)	Weight (kg)
	PJ0.37/6-220-980	0.37	1.5	220	980	138	45/50
	PJ0.55/4-220-1450	0.55	1.6	220	1450	145	45/50
	PJ0.85/6-280-740	0.85	3.2	260	740	180	55
	PJ1.5/6-280-980	1.5	4	260	980	260	55
	PJ2.2/6-300-740	2.2	5.9	320	740	780	110
	PJ4-6/8-320-980	4	10.3	320	980	690	115
	PJ5.5/8-400-740	1.5	5.2	400	740	600	100
	PJ2.5/8-400-740	2.5	7.1	400	740	800	110
	PJ3/8-400-740	3	8.6	400	740	900	115
	PJ4-6/8-400-980	4	10.3	400	980	1100	115
	PJ4/12-620-480	4	14	620	480	1200	184
	PJ5/12-620-480	5	18.2	620	480	1500	184
	PJ7.5/12-620-480	7.5	28	620	480	1900	229
	PJ10/12-620-480	10	32	620	480	2200	229
	PJ11/12-620-480	11	34	620	480	2450	229
	PJ15/12-620-480	15	42	620	480	3300	250
	PJ18/12-620-480	18.5	55	620	480	3500	270
	PJ22/12-620-480	22	65	620	480	3900	290
Pump model		Motor power(kW)	Rated current(A)	Rpm of propeller(mm)	Diameter of propeller (r/min)	Thrust (N)	Weight (kg)
Two vanes	PJMJ-3/4-1100-43	1.5	3.7	1100	43	865	135
	PJMJ-2/4-1100-52	2.2	4.9	1100	52	1100	135
	PJMJ4-4/1100-87	3	6.7	1100	87	1700	140
	PJMJ4-4/1100-115	4	8.7	1100	115	1860	140
	PJMJ-2/4-1400-43	2.2	4.9	1400	43	1420	140
	PJMJ-3/4-1400-63	3	6.7	1400	63	1870	140
	PJMJ4-4/1400-87	4	8.7	1400	87	2300	140
	PJMJ-2/4-1600-38	2.2	4.9	1400	38	1600	145
	PJMJ-3/4-1600-43	3	6.7	1600	43	1850	145
	PJMJ-4/1600-52	4	8.7	1600	52	2520	145
	PJMJ-2/4-1800-38	2.2	4.9	1800	38	1750	158
	PJMJ-3/4-1800-43	3	6.7	1800	43	1960	158
	PJMJ4-4/1800-52	4	8.7	1800	52	2750	162
	PJMJ-5/4-1800-63	5	11.3	1800	63	3120	162
	PJMJ-2/4-2200-34	2.2	4.9	2200	34	1810	165
	PJMJ-3/4-2200-38	3	6.7	2200	38	2140	165
	PJMJ-4/4-2200-43	4	8.7	2200	43	2750	170
	PJMJ-5/4-2200-52	5	11.3	2200	52	3500	170
	PJMJ-2/4-2500-34	2.2	3.7	2500	34	1750	175
	PJMJ-3/4-2500-38	3	6.7	2500	38	2090	175
	PJMJ-4/4-2500-43	4	8.7	2500	43	3200	205
	PJMJ-5/4-2500-45	5	11.3	2500	45	1750	205
Three vanes	PJMJ4-4/1600-3-43	4	8.7	1600	43	3110	160
	PJMJ4-4/1600-3-52	5	11.3	1600	52	3400	160
	PJMJ4-4/1800-3-43	4	8.7	1800	43	3110	180
	PJMJ4-4/1800-3-52	5	11.3	1800	52	3500	180
	PJMJ-5/4-1800G-57	7.5	15.5	1800	57	4010	210
	PJMJ4-4/2500-3-38	4	8.7	2500	38	3290	230
	PJMJ4-4/2500-3-43	5	11.3	2500	43	3940	235
	PJMJ-5/4-2500G-52	7.5	15.5	2500	52	4280	245

In the above table,the value listed in the column of "weight" respectively contains the weight of without or with the dome.
