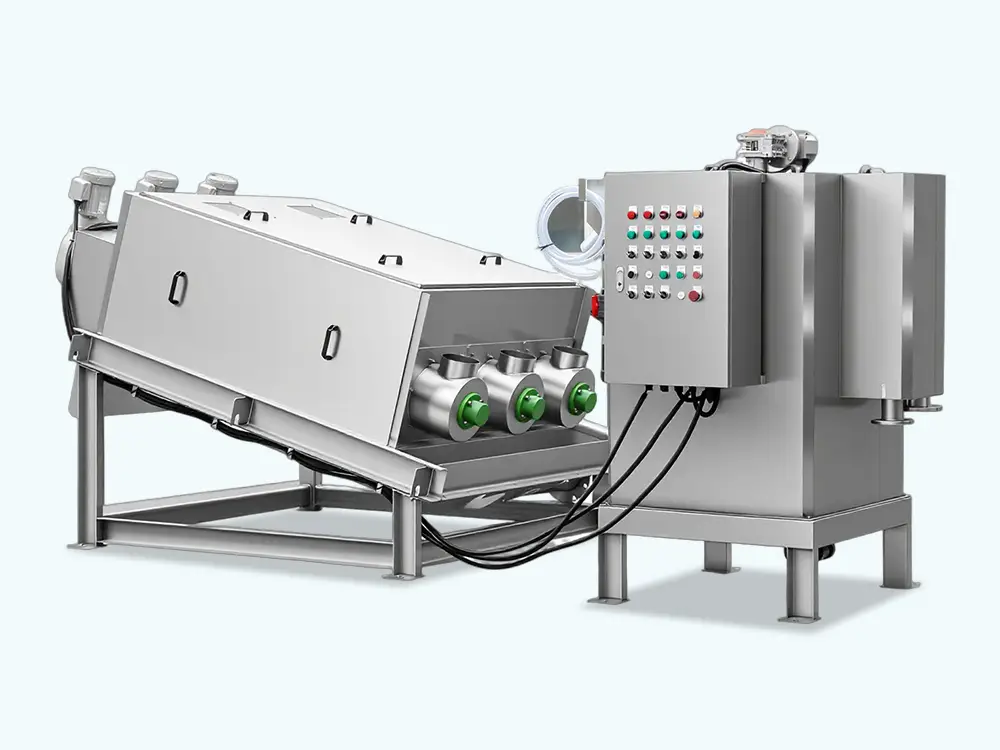

Screw Sludge Dewatering Machine for Industrial Wastewater QILEE 1

Screw Sludge Dewatering Machine for Industrial Wastewater QILEE 2

Screw Sludge Dewatering Machine for Industrial Wastewater QILEE 3

Screw Sludge Dewatering Machine for Industrial Wastewater QILEE 4

Screw Sludge Dewatering Machine for Industrial Wastewater QILEE 5

Screw Sludge Dewatering Machine for Industrial Wastewater QILEE 6

Screw Sludge Dewatering Machine for Industrial Wastewater QILEE

Name: Screw Sludge Dewatering Machine for Industrial Wastewater QILEE
Brand: QILEE

Product Features:
● Suitable for sludge treatment of high/low consistency.
● There is no need to worry about jam up. Reduce the cleaning water consumption.
● The electrical cabinet, disposal tank and dehydrator are integrated,reducing the covering area and brings convenience to installment.
● The dehydrator is enclosed working, reducing the bad smell and improving the working environment.
● Automatically working for 24 hours, reducing the labor strength of workers.
● The slow running speed of screw shaft reduces the power consumption and noise.
● It is made with stainless,extending the service life.
● lt is convenient for daily maintenance.

Inquiry

Write a Review

Product Structure

● The main part of the dehydrator is a filter device that a screw runs through the stacked fixed rings and moving ring.

● The small gaps between fixed rings and moving ring can filter the sludge, and the lumen between screw and rings is filled with polymer grains. The moving ring transfers the sludge to the end of the machine with pressure and extrudes sludge cakes.

● The running of the screw drives the moving ring to clean the gaps and avoid jam.

Product Application

City mixed raw sewage, Food & beverage industry, Chemical industry, Stone & mine sewage, Leather & tannery sewage, Paper & pulp sewage, Elecro-plating sewage, Pringting & dyeing sewage, Power plant, Petrochemical industry

Parameters

No	Name	Material
①	Dehydrating subject	SUS304
②	Mud cake discharge plate	SUS304
③	Support seat of dehydrating subject	SUS304
④	Metering tank	SUS304
⑤	Flocculation mixing tank	SUS304
⑥	Agitator of mixing tank	SUS304
⑦	Liquid level compensating pipe	SUS304
⑧	Solenoid valve of water supply	SUS304
⑨	Liquid level switch	SUS304

No	Name	Connecting parts
N-1	Sludge conveyor exit	connector(SUS)
N-2	Filter liquor discharge exit	connector(SUS)
N-3	Water supply exit	Notch connector(PVC)
N-4	Agent conveyor exit	Notch connector(PVC)
N-5	Reflux inlet	connector(SUS)
N-6	Drain outlet of mixing tank	Ball valve(PVC)

Product Parameters
Treating Capacity	3-300 (DS-kg/h)	DS Standard Capacity= Sludge flow* Sludge Consistency(DS refers to Dried Sludge)
Power Consumption	0.2-6.0kW/h
Cleaning Water Consumption	24-216L/h
Macromolecule Polymer Addition	2.0-4.0kg/(ton D.S)
Maintenance Frequency	Semimonthly
Water Pressure	0.2-0.3MPa	In actual operation, the features of slurry, disposing approaches, running stateand running time will affect the replacement cycle of the wearing parts. (thereplacement period ofwearing parts is calculated as 365 days/year, 8hours/day)
Distance of Outlet Exit to Ground	215-500mm
Replacement Period of Screw Axis	3-11 year
Replacement Period of Moving Ring	1-4 year

Our in-house designers and engineers have produced countless great designs for customers from different industries

MODEL	Ds Standard Treating Capacity		Sludge Flow
MODEL	Low-high consistency		2000mg/L	5000mg/L	10000mg/L	20000mg/L	25000mg/L	50000mg/L
QLD101	~3kg/h	~5kg/h	~1.5m3/h	~0.6 m3/h	~0.5 m3/h	~0.25 m3/h	~0.2 m3/h	~0.1 m3/h
QLD201	~6kg/h	~18kg/h	~4.5 m3/h	~1.8 m3/h	~1.5 m3/h	~0.75 m3/h	~0.6 m3/h	~0.3 m3/h
QLD202	~18kg/h	~30kg/h	~9 m3/h	~3.6 m3/h	~3 m3/h	~1.5 m3/h	~1.2 m3/h	~0.6 m3/h
QLD301	~30kg/h	~50kg/h	~15 m3/h	~6 m3/h	~5 m3/h	~2.5 m3/h	~2 m3/h	~1 m3/h
QLD302	~60kg/h	~100kg/h	~30 m3/h	~12 m3/h	~10 m3/h	~5 m3/h	~4 m3/h	~2 m3/h
QLD303	~90kg/h	~150kg/h	~45 m3/h	~18 m3/h	~15 m3/h	~7.5 m3/h	~6 m3/h	~3 m3/h
QLD352	~120kg/h	~200kg/h	~60 m3/h	~24 m3/h	~20 m3/h	~10 m3/h	~8 m3/h	~4 m3/h
QLD353	~180kg/h	~300kg/h	~90 m3/h	~36 m3/h	~30 m3/h	~15 m3/h	~12 m3/h	~6 m3/h

DS Standard Capacity= Sludge flow* Sludge Consistency (DS refers to Dried Sludge)

Model	Screw Axis Specification	Outlet Position(ground distance)(mm)	Dimensions(mm)			Net weight	Operatig Weight
Model	Screw Axis Specification	Outlet Position(ground distance)(mm)	L	W	H	Net weight	Operatig Weight
QLD-101	Φ100x1	215	1816	756	1040	210kg	300kg
QLD-131	Φ130x1	215	1920	766	1080	280kg	400kg
QLD-201	Φ200x1	350	2300	785	1270	410kg	560kg
QLD-202	Φ200x1	350	2500	935	1270	670kg	950kg
QLD-301	Φ300x1	495	3256	985	1600	870kg	1280kg
QLD-302	Φ300x2	495	3455	1295	1600	1250kg	2150kg
QLD-303	Φ300x3	495	3605	1690	1600	1970kg	2960kg
QLD-351	Φ350x1	585	4140	1550	2250	1550kg	1950kg
QLD-352	Φ350x2	585	4140	1000	2250	2450kg	3400kg
QLD-353	Φ350x3	585	4420	2100	2250	3350kg	4850kg
QLD-401	Φ400x1	585	4700	1400	2460	2800kg	3560kg
QLD-402	Φ400x2	585	5060	1800	2460	4400kg	6500kg
QLD-403	Φ400x3	585	5060	2200	2460	5300kg	7500kg
QLD-404	Φ400x4	585	5060	2600	2460	6200kg	9500kg

*Note: Shanghai QILEE has the right to revise the specification.

Model	Power Consumption			Water Pressure for Cleaning	Water Pressure for Cleaning (L/h)	Maintenance period	Replace Period for wearing Parts(year)
Model	Screw Axis	Agitator	Total	Water Pressure for Cleaning	Water Pressure for Cleaning (L/h)	Maintenance period	Screw Axis	Moving Ring
QLD-101	0.1	01	0.2	0.1Mpa-0.2Mpa (No high-pressure flushing device required)	24	5 minutes/day	3.4	1.7
QLD-131	0.1	0.1	0.2		24		3.4	1.7
QLD-201	0.2	0.2	0.3		32		3.4	1.7
QLD-202	0.4	0.4	0.8		64		11	3.4
QLD-301	0.4	0.4	1.12		40		11	3.4
QLD-302	0.8	0.75	1.49		60		11	3.4
QLD-303	1.2	0.75	1.86		120		11	3.4
QLD-352	3.0	0.75	3.75		144		11	3.4
QLD-353	4.5	1.5	6.0		216		11	3.4
*Note:In actual operation,the features of slurry,disposing approaches,running state and running time will affect the replacement cycle of the wearing parts.

Flow Chart

● The sludge in the sludge sump is carried to the measuring tank by sludge pump.And the sludge inlet volume can be controlled by adjusting the liquid level tube.

● Sludge and flocculant will form alum floc in the disposal tank after agitator mixing, the ideal diameter of alum floc is about 5mm.

● After gravity thickening in the thickening part, large amount of filtrate will discharge from the gaps between rings.

● The thickened sludge is carried forward by the screw and dehydrated sufficiently under the pressure of the back pressure plate.

● The dehydrated mud cake is discharged from the gaps between back pressure plates and screw body. The treating capacity of sludge and water content’s rate of mud cake can be controlled by adjusting the running speed of screw and gaps between back pressure plates.
