Belt Filter Type Thickeners: Efficient Solid-Liquid Separation Solution

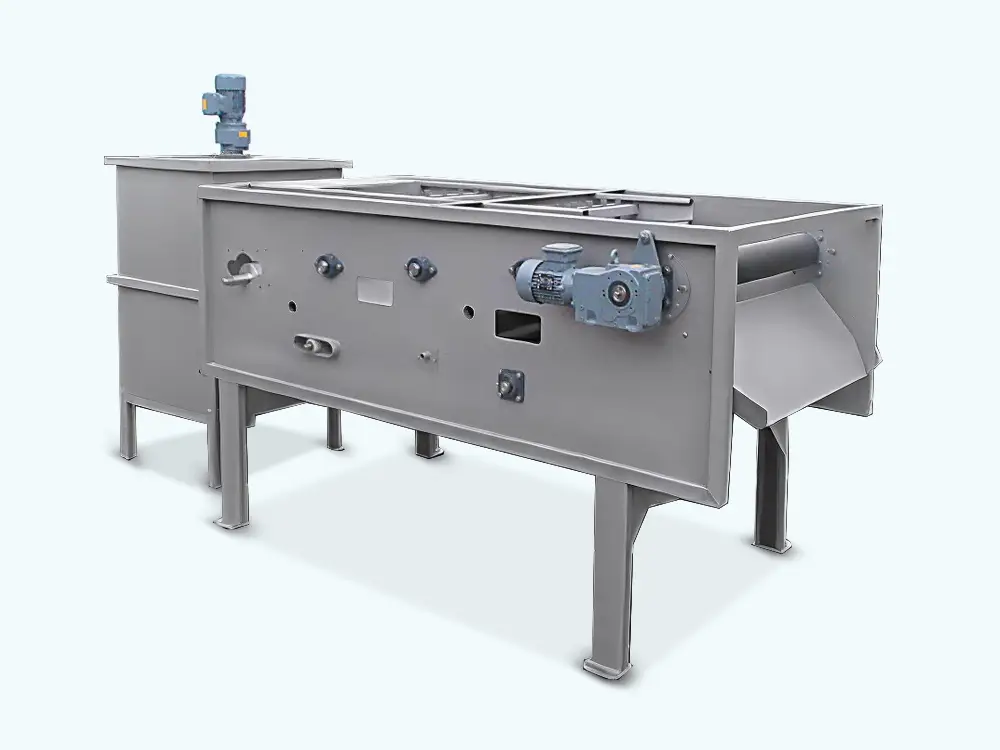

The Belt Filter Type Thickeners is a high-efficiency solid-liquid separation equipment designed for concentrating and dewatering various slurries in industrial processes. It integrates advanced filtration technology with stable mechanical structure, providing reliable performance for customers in different industries. With its compact design and easy operation, this equipment effectively reduces the moisture content of materials, improves production efficiency, and lowers overall operating costs.

Inquiry

Write a Review

Function Description

The core function of the Belt Filter Type Thickeners is to separate solid particles from liquid in slurries through a combination of gravity concentration and pressure filtration. The working process mainly includes the following steps:

Slurry Feeding

The slurry to be treated is evenly fed onto the gravity concentration zone of the filter belt through the feeding device.

Gravity Concentration

In the gravity zone, most of the free water in the slurry is removed by gravity, and the slurry gradually forms a filter cake with a certain thickness.

Pressure Filtration

The filter cake enters the pressure filtration zone, where it is squeezed by the upper and lower filter belts under pressure. This further removes the capillary water in the filter cake, reducing its moisture content.

Filter Cake Discharge

The dewatered filter cake is continuously discharged from the end of the filter belt, while the filter belt is cleaned by the cleaning device to ensure the next filtration cycle's efficiency.

Product Features

High Concentration Efficiency

Adopts a scientific gravity concentration structure and optimized pressure filtration system, which can quickly concentrate the slurry and achieve a high filter cake solid content.

Stable Operation

The equipment is equipped with a high-precision transmission system and tension control device, ensuring the filter belt runs smoothly without deviation, and the operation is stable and reliable.

Low Energy Consumption

The design of the drive system and pressure device is energy-saving, which effectively reduces power consumption compared with similar products.

Easy Maintenance

The key components are designed with easy disassembly and assembly, and the filter belt replacement is simple and fast, reducing the maintenance time and labor intensity.

Wide Adaptability

It can handle various slurries with different concentrations and particle sizes, and can be customized according to the specific needs of customers.

Environmentally Friendly

The closed filtration process effectively prevents the spread of dust and odor, and the filtered water can be recycled after treatment, meeting environmental protection requirements.

Technical Parameters

Model SPEC.			QTBN-1000	QTBN-1500	QTBN-2000	QTBN-2500	Remark
Machine Frame Material		Standard	(SUS304)
Machine Frame Material		Option	(SS400/SS41), (SUS316), (OTHER SPECIAL MATERIALS)
Belt Width(mm)			1000	1500	2000	2500
Treating Capacity(m³/hr) Inlet Consistency(s.s.1.5~2.5%)			10-15	15-25	20-35	30-50	(depends on the slurry feature)
D.S. (kg/hr)Dried Sludge			150-230	200-375	300-500	400-600
Sludge Outlet Consistency(%)			4.0-12	4.0-12	4.0-12	4.0-12	(depends on the slurry feature)
Power Consunption(hp)	Standard Accessories	Drum Driving Motor (Speed Variable)	3/4	3/4	1/2	1y₂
	Standard Accessories	DisposalAgitator Motor	3/4	3/4	3/4	3/4	(collocate with static mixer)
	Option Accessories	Washing Pump	2	2	2	3
Lower Collecting Tray For Pressed Filtrate			None	None	None	None
		L1	1600	2600	3200	4000	Pls Ask Far The Actual Dimension Before Ordering
		L2	800	1000	1200	1500
Extemal Dimensions(mm)		L	3000	3200	4600	6500
(Reference)		W	1500	2100	2550	3100
		H	1400	1700	1900	2200
Reference Weight(kgs)			690	8900	1250	1750

Remark: Our company will reserve the modifying right of the above specifications.

Application Fields

The Belt Filter Type Thickeners is widely used in various industries due to its excellent performance. Its main application fields include:

Mining Industry

Concentration and dewatering of mineral slurries such as iron ore, copper ore, gold ore, and coal slurry.

Environmental Protection

Treatment of sludge from municipal sewage treatment plants, industrial wastewater treatment sludge (such as printing and dyeing sludge, chemical sludge, electroplating sludge).

Chemical Industry

Separation of solid-liquid mixtures in chemical production processes, such as the concentration of catalyst slurries and the dewatering of chemical by-products.
