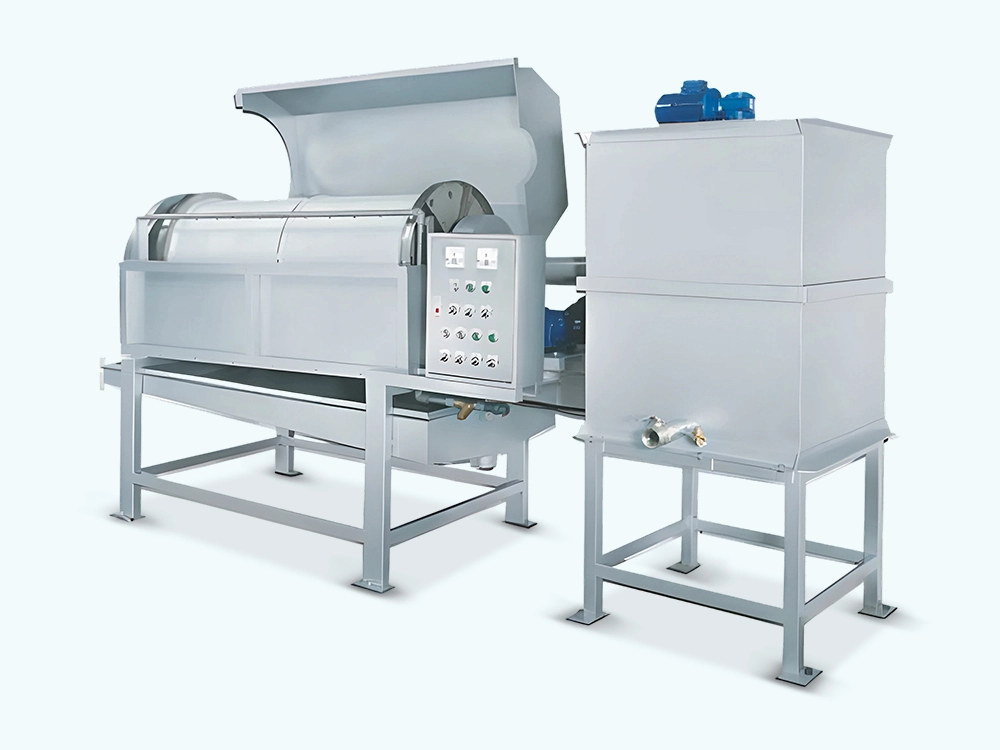

Drum Sludge Thickener - Efficient Sludge Concentration Solution 1

Drum Sludge Thickener - Efficient Sludge Concentration Solution 2

Drum Sludge Thickener - Efficient Sludge Concentration Solution 3

Drum Sludge Thickener - Efficient Sludge Concentration Solution 4

Drum Sludge Thickener - Efficient Sludge Concentration Solution 5

Drum Sludge Thickener - Efficient Sludge Concentration Solution

The drum sludge thickener is a high-efficiency solid-liquid separation equipment widely used in the wastewater treatment and environmental protection industries. It adopts advanced drum filtration technology to effectively reduce the water content of sludge, thereby reducing the subsequent treatment load and improving the overall treatment efficiency of the sewage treatment system. With its stable performance, simple operation and low maintenance cost, it has become an indispensable key equipment in modern sludge treatment processes.

Inquiry

Write a Review

Product Features

Wide Adaptability: It can be applied to various types of sludge, such as municipal sewage sludge, industrial wastewater sludge (including chemical, printing and dyeing, food processing, etc.), and has good concentration effect on both organic and inorganic sludge.

High Concentration Efficiency

Adopting optimized drum structure and filter cloth material, the water content of sludge can be reduced from 99% - 99.5% to 95% - 97% in a short time, and the sludge volume is reduced by 3 - 5 times, greatly reducing the subsequent treatment cost.

Stable and Reliable Operation

The equipment adopts a frequency conversion speed regulation system, which can adjust the rotation speed of the drum according to the sludge concentration and flow, ensuring stable operation under different working conditions. The key components are made of high-quality stainless steel and corrosion-resistant materials, with long service life and low failure rate.

Simple Operation and Maintenance

The whole machine adopts automatic control, which can realize unmanned operation after setting parameters. The filter cloth replacement is simple and quick, and the daily maintenance only needs to check the lubrication and cleaning system, reducing the labor intensity of operators.

Energy Saving and Environmental Protection

Compared with traditional sludge concentration equipment (such as centrifuges), the energy consumption is reduced by 30% - 50%. The filtrate can be recycled to the front-end treatment process, realizing the reuse of water resources and meeting the requirements of environmental protection and energy saving.

Function Description

The core function of the drum sludge thickener is to concentrate the dilute sludge generated in the wastewater treatment process. The specific working process is as follows: First, the dilute sludge is evenly introduced into the drum filter area. The drum is covered with a special filter cloth, and under the action of gravity and negative pressure (or positive pressure), the water in the sludge passes through the filter cloth to form filtrate, which is discharged through the filtrate collection system. The sludge solids are intercepted on the surface of the filter cloth to form a sludge cake. As the drum rotates, the sludge cake is continuously carried to the discharge area, and then scraped off by the scraper to complete the sludge concentration process. In addition, the equipment is also equipped with a filter cloth cleaning system to regularly clean the filter cloth, ensuring the continuous and stable operation of the filtration effect.

0-Drum Sludge Thickener - Efficient Sludge Concent (2)

Technical Parameters

Model			QTN-350	QTN-500	QTN-600	QTN-500-2	QTN-600-2
SPEC.			(SUS304)
Machine Frame Material		Standard
Machine Frame Material		Option	(SS400/SS41), (SUS316), (OTHER SPECIAL MATERIALS)
Fitor Opening(Mesh)			30-80	30-80	30-80	30-80	30-80
Treating Capacity(m³/hr) Inlet Consistency(s.s.1.5~2.5%)			3-7	5-10	8-20	18-30	25-40
D.S. (kg/hr) Dried Sludge			63-105	80-158	140-300	270-450	300-600
Sludge Outlet Consistency			3.5-11	3.5-11	3.5-11	3.5-11	3.5-11
Power Consunption(hp)	Standard Accessories	Drum Driving Motor(Speed Variable)	1/2	1/2	3/4	1/2×2	3/4×2
	Standard Accessories	Disposal Agitator Motor	1/2	1/2	3/4	1	1
	Option Accessories	Washing Pump	1	1	1	2	2
Lower Collecting Tray For Pressed Filtrate			None	None	None	None
L			1800	2400	2800	3700	4200
Extemal Dimensions(mm)
W			700	900	1200	1300	1600
(Reference)
H			1400	1500	1600	1600	1800
Reference Weight (kg)			260	350	450	600	800

Remark: Our company will reserve the modifying right of the above specifications.

Application Fields

Municipal Wastewater Treatment Plants

Used for concentrating primary sludge, surplus activated sludge and mixed sludge in municipal sewage treatment, providing qualified concentrated sludge for subsequent anaerobic digestion, dehydration and drying processes.

Industrial Wastewater Treatment

Applied to sludge concentration in various industrial fields, such as chemical industry (treatment of sludge from chemical production wastewater), printing and dyeing industry (treatment of dyeing sludge), food processing industry (treatment of starch, dairy and beverage wastewater sludge), papermaking industry (treatment of papermaking sludge), and mining industry (treatment of mineral processing wastewater sludge).

Environmental Remediation Projects

Used for concentrating sludge generated in soil remediation, river and lake dredging projects, reducing the volume of sludge and facilitating subsequent transportation and treatment.

Water Supply Plants

Concentrating the sludge generated in the process of water purification (such as sludge), reducing the amount of sludge and reducing the pressure of sludge disposal.

Other Fields

Also used in sludge treatment in pharmaceutical factories, breeding farms, and wastewater treatment in scenic spots, etc., which has a wide range of applications.
