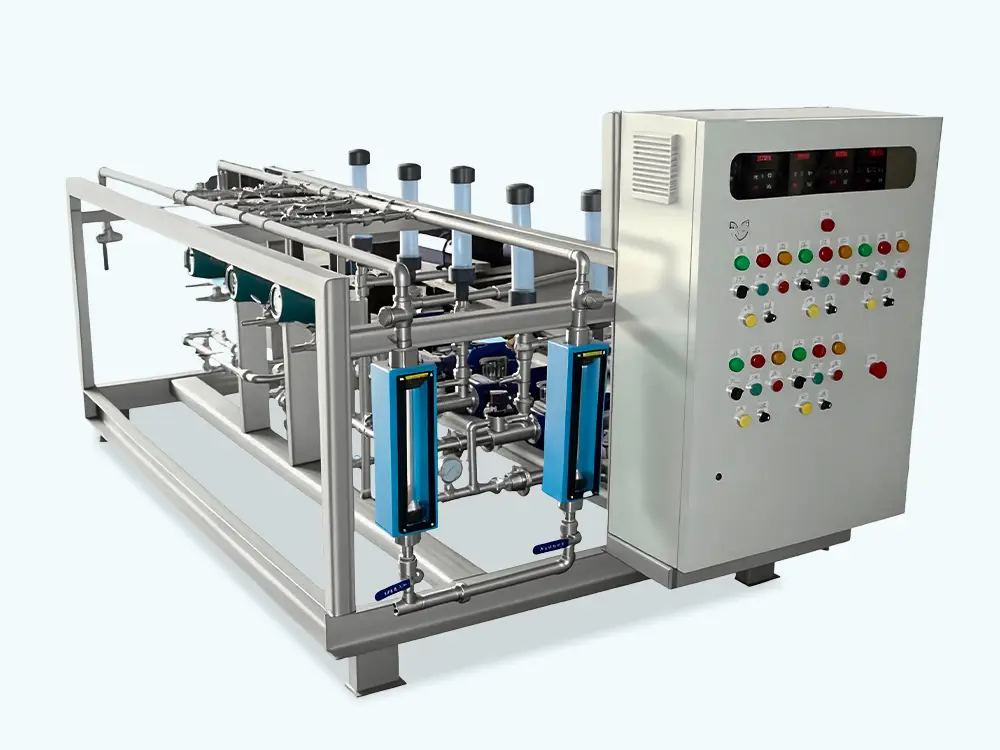

Chemical Aid Dosing Device For Paper-Making 1

Chemical Aid Dosing Device For Paper-Making 2

Chemical Aid Dosing Device For Paper-Making 3

Chemical Aid Dosing Device For Paper-Making

Pulp and paper making is an indispensable part of the paper-making process, and it plays a crucial role in the quality and cost of paper. Chemical aids refer to a general term for small amounts of chemical substances added to the main materials to improve certain properties of pulp or paper, reduce material consumption and optimize operating conditions. They can be divided into pulping aids, paper-making aids, coating and processing paper aids, etc. Therefore, high requirements are put forward for the accuracy, operability and stability of the aid dosing device.

The Paper-Making Chemical Aid Dosing Device is a professional automatic dosing equipment developed for the paper-making industry. It is designed to realize the quantitative and automatic dosing of various chemical aids in the paper-making process, ensuring the precise control of chemical aid dosage and improving the stability of paper quality. The device integrates dosing, mixing, control and other functions, and is suitable for various scenarios in the paper-making production line, providing reliable support for efficient and high-quality paper production.

Inquiry

Write a Review

Core application scenarios

Pulping process (adding cooking aids, bleaching aids), paper-forming process (adding sizing agents, reinforcing agents, retention and drainage aids), paper finishing process (adding softeners, waterproof agents), and paper machine maintenance (adding bactericides, cleaning agents), etc.

Product Classification & Application Scope

Product Classification

Dry-End Dosing Device

Mainly used in the dry end of the paper machine, it is suitable for the dosing of aids such as softeners, waterproof agents, anti-yellowing agents and surface sizing agents. It has the characteristics of precise control of low dosage and good compatibility with surface coating processes.

Wet-End Dosing Device

Applied to the wet end of the paper machine, it is used for the dosing of sizing agents, reinforcing agents, retention and drainage aids, bactericides and cleaning agents. It can adapt to the complex working conditions of high humidity and high pulp concentration in the wet end, and ensure stable dosing under dynamic production conditions.

Applicable Aids

Sizing agents (rosin sizing agent, AKD sizing agent, ASA sizing agent), reinforcing agents (cationic starch, polyacrylamide, guar gum), retention and drainage aids (anionic polyacrylamide, bentonite), bactericides (isothiazolinones, glutaraldehyde), cleaning agents (alkaline cleaning agents, chelating cleaning agents), etc.

Core Features & Advantages

Chemical Aid Dosing Device For Paper-Making 7

PLC Control System, Stable Operation

Adopting high-performance PLC control system, it has the characteristics of flexible parameter setting and stable operation. It can realize real-time monitoring of dosing process, automatic adjustment of dosage according to production load changes, and ensure the consistency of paper quality.

Dual Control Modes, Flexible Adjustment

Configurable with automatic control and manual control modes, and the metering pump has two-way adjustment function. In automatic mode, it can be linked with the paper machine's production speed and pulp flow to realize closed-loop control; in manual mode, operators can directly adjust the dosage according to on-site conditions, which is convenient for debugging and emergency handling.

Skid-Mounted Integration, Space-Saving

The control cabinet, metering pump, mixing device and other metering components are integrated on a single rack to form a skid-mounted unit. This design is convenient for on-site management and maintenance, and occupies a small area, which is suitable for the limited space layout of paper mills.

Multiple Control Options, Customizable

A variety of control methods are available for selection, including manual adjustment, PLC independent control and DCS system linkage control. Customers can configure the corresponding control mode according to their actual production management needs and existing control system conditions. QILEE Environmental Protection provides reliable and stable paper-making chemical aid dosing devices with specially designed structures.

On-Line Dilution & Mixing, Precise Dosing

Equipped with a special on-line dilution and mixing device, it can dilute concentrated chemical aids to the required concentration on line and fully mix them, avoiding the problem of uneven dosing caused by direct addition of concentrated aids. Combined with DCS or manual control, it can realize accurate dosing of various aids.

Corrosion-Resistant Material, Long Service Life

6.Key components such as metering pumps, mixing tanks and pipelines are made of corrosion-resistant materials (316L stainless steel, PTFE) to resist the corrosion of various acidic, alkaline and organic chemical aids, ensuring long-term stable operation of the device and reducing maintenance costs.

Complete Monitoring & Alarm Functions

Equipped with complete monitoring functions for liquid level, pressure, flow rate and dosage. When abnormal conditions such as low liquid level of aids, blockage of pipelines or overload of metering pumps occur, the system will automatically issue an alarm to remind operators to handle them in time, avoiding production accidents caused by abnormal dosing.

Standard Configuration

Dosing System

Diaphragm metering pump (with pressure relief valve), dosing pipeline (PTFE or 316L stainless steel), check valve, filter (stainless steel mesh, 100 mesh)

Mixing & Dilution System

Mixing tank (with liquid level sensor), agitator (stainless steel impeller), on-line dilution nozzle, flow control valve

Control System

PLC controller, touch screen (10-inch, multi-language switchable), signal input/output module, alarm device (sound and light)

Skid-Mounted Frame

Carbon steel frame with anti-rust and anti-corrosion treatment, with foot pads for level adjustment

Monitoring System

Flow meter (electromagnetic type), pressure gauge, liquid level switch (high/low level alarm)

Safety Accessories

Emergency stop button, overload protection for motor, leakage protection switch, explosion-proof junction box (optional)

Customization Options

Capacity Customization

According to the actual dosage demand of the paper mill, customize the dosing capacity (0.5 - 5000 L/h) and the number of metering pumps (single pump, dual pumps or multi-pumps).

Material Upgrade

For highly corrosive aids (such as strong acid and alkali bactericides), the metering pump, mixing tank and pipeline can be upgraded to Hastelloy or PFA-lined materials.

Control System Upgrade

Add IoT remote monitoring module to realize real-time monitoring of device operation status, data recording and fault early warning through mobile APP or computer terminal; support seamless connection with various brand DCS systems (Siemens, ABB, Emerson, etc.).

Special Function Addition

Add automatic aid replenishment system (linkage with storage tank), online concentration detection and feedback system, and automatic cleaning system for pipelines and mixing tanks to reduce manual maintenance workload.

Environmental Adaptation

For high-temperature and high-humidity workshops, configure high-temperature resistant motors and moisture-proof control cabinets; for cold regions, add heating devices in mixing tanks to prevent aid crystallization.

Multi-Aid Integration

Integrate multiple sets of dosing units into one skid-mounted device to realize simultaneous dosing of multiple aids (up to 8 types) and reduce the occupied space of the equipment.

Installation & Commissioning

Installation Requirements

● Site Requirements: Flat concrete ground with load-bearing capacity ≥ 2 times the net weight of the device; good ventilation and lighting; away from strong vibration equipment and high-temperature heat sources.

● Power Supply: Voltage stability ±5%; equipped with independent power distribution cabinet and grounding device (grounding resistance ≤4Ω).

● Medium Supply: The inlet pressure of the chemical aid is 0.1 - 0.3 MPa; the inlet pipeline is equipped with a filter (filter precision ≤50μm) to prevent impurities from blocking the metering pump.

● Space Requirements: Reserve a maintenance space of ≥500mm around the device for daily inspection and component replacement.

0-Chemical Aid Dosing Device For Paper-Making1

Routine Maintenance & Service

Daily Maintenance

Check the liquid level of the chemical aid storage tank, clean the filter at the inlet of the metering pump, and record the operation parameters (flow rate, pressure, etc.).

Weekly Maintenance

Inspect the sealing performance of the metering pump diaphragm, check the operation noise of the agitator, and clean the inner wall of the mixing tank.

Monthly Maintenance

Calibrate the dosing accuracy of the metering pump, add lubricating oil to the agitator bearing, and check the tightness of electrical connections.

Quarterly Maintenance

Inspect the corrosion of pipelines and tanks, test the sensitivity of the alarm system, and replace the filter element of the inlet filter.
