Liquid-Solid Separator Sludge Dewatering 500L/h Motor 1yr

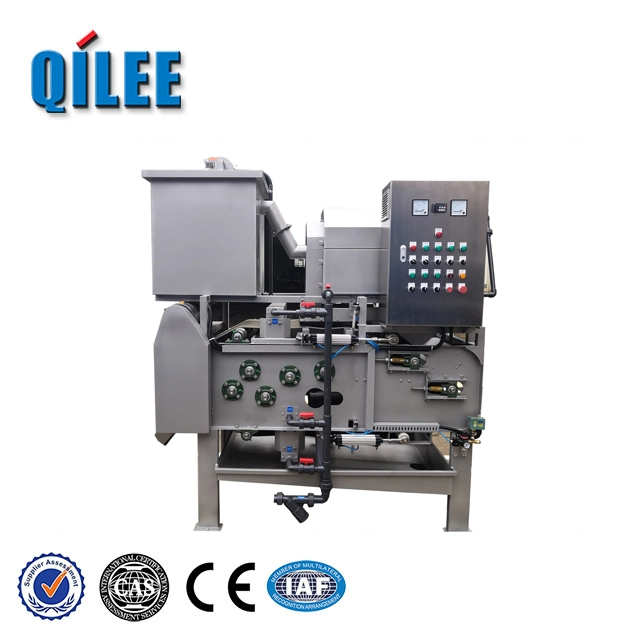

Liquid-Solid Separator Sludge Dewatering 500L/h Motor 1yr is a compact, motor-driven unit that separates solids from sludge at up to 500 L/hour. It quickly removes free water from sludge to cut volume, lower disposal cost, and make handling easier. The unit is simple to operate, needs low maintenance, and includes a one-year warranty for peace of mind.

Usage scenarios:

- Municipal sewage works for thickening and dewatering primary or secondary sludge before disposal.

- Industrial sites such as food & beverage, textile, paper, and chemical plants for treating process wastewater and recovering solids.

- Aquaculture, septic services, construction sites, and oilfield/mud management to reduce hauling costs and reclaim material.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):30(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Reference Weight(kg)

660

Powder Consumption(kw)

0.75

Water Content's Rate(%)

75~85

Inlet Consistency(%)

1.5~2.5

Dried Sludge(kg/hr)

30~50

Treating Capacity(m3/hr)

2.0~3.3

Belt Width(mm)

500

Dimensions(mm)

2150*1050*2350

Processing Type

desalination

Power(W)

1 kW

Product name

Effluent Treatment Plant

Voltage

220 V, 380 V

weight (kg)

660

productivity

500L/Hour

warranty

1 Year

place of origin

Shanghai, China

core components

Motor

machinery test report

Provided

video outgoing-inspection

Provided

Compact Stainless Reliable Dewatering

The QTA Dewatering Machine delivers fast, low-energy liquid-solid separation with high dryness and stable operation to cut disposal costs and simplify wastewater management. Built from SUS304 stainless steel with imported Swiss filter cloth, air-chamber cloth tracking and safety monitors, it provides durable, low-noise (≤75dB) performance and consistently low moisture cake. Compact, modular in shape and packed in standard export cartons, it offers plug-and-play installation, high-quality finish and a one-year motor warranty for reliable on-site service.

Motorized 500L/h Sludge Separator

The QTA Dewatering Machine combines a SUS304 stainless-steel main structure with Swiss-imported filter cloth, motor-driven operation, an air-chamber automatic filter-cloth deviation correction device and a one-year motor warranty to deliver high strength, corrosion resistance, low energy consumption and noise ≤75 dB(A). Engineered for efficient liquid–solid separation in industrial, municipal, food and chemical applications, it produces low-moisture filter cake (typical water content 75–85%), offers excellent washing and low-maintenance performance, and supports continuous high-throughput operation. Its compact, modular frame features a lower filtrate-collecting tray, safety monitoring with automatic stop, flexible belt-width model options and easy integration with pumps, dosing systems and conveyors for turnkey effluent treatment.

Motorized 500L/h Sludge Separator

The QTA Dewatering Machine is a stainless-steel (SUS304) liquid–solid separator for industrial and municipal sludge dewatering, equipped with Swiss-imported filter cloth and an air-chamber automatic deviation correction device to ensure stable cloth operation. It delivers high throughput with low-moisture cake, low energy consumption, low noise (≤75 dB(A)), good washing effect and integrated safety monitoring with automatic stop functions. Available in multiple belt widths (including the QTA-500 model), the system is easy to operate and maintain and can be paired with polymer dosing pumps, sludge pumps and washing pumps for complete effluent treatment solutions.

◎

Efficient Reliable Compact Energy-saving

The QTA Dewatering Machine is a liquid-solid separator engineered for sludge dewatering at 500L/h, combining sturdy construction with precision components and a motor backed by a one-year warranty to ensure reliable field performance. Its high-efficiency separation system and optimized flow paths reduce residual moisture and energy use while a compact, corrosion-resistant chassis and straightforward controls simplify installation and maintenance. Key advantages include 500L/h throughput, durable motor (1yr warranty), low operating noise, minimal footprint, easy-clean design, and measurable reductions in disposal costs and downtime for wastewater and industrial applications.

Material introduction

The QTA Dewatering Machine is built primarily from SUS304 stainless steel, providing high strength and excellent corrosion resistance for long-term operation in harsh wastewater and sludge conditions. Its filtration modules use Swiss-imported filter cloth and precision-fabricated support frames, delivering wear resistance and stable cloth tracking for low-maintenance performance. Robust low-speed motors, stainless steel trays and durable fittings minimize leakage, reduce noise and energy use, and simplify cleaning and service.

◎ material introduction 1

◎ material introduction 2

◎ material introduction 3

FAQ

What is the "Liquid-Solid Separator Sludge Dewatering 500L/h Motor 1yr" and what does 500L/h refer to?

It is a compact mechanical dewatering unit designed to separate water from sludge (liquid-solid separation) so solids can be handled or disposed of more easily. The 500L/h rating indicates the nominal processing rate of slurry (about 500 liters of feed slurry per hour) under typical conditions; actual throughput depends on feed solids concentration, particle size and any pretreatment (e.g., flocculation).

What kinds of sludges and wastes can this machine handle?

It is suitable for a wide range of slurries: municipal wastewater sludge (primary/secondary), industrial effluents, food-processing waste, brewery residues, aquaculture and hatchery solids, septic tank sludge, agricultural manure and many mineral slurries. Very large debris or long fibrous material should be screened or pre-shredded before feeding.

How dry is the discharged cake and do I need to add chemicals?

Cake dryness varies by feed type and pretreatment. Typical results are in the range of about 18–35% total solids (TS) for many biological and food-industry sludges. Adding a polymer flocculant or coagulant often substantially increases cake dryness and processing rate. Exact performance will depend on your specific sludge — we recommend lab or on-site trials to determine optimal dosing.

What are the installation, power and warranty details I should know?

The unit comes with a motor included and a 1‑year motor warranty as stated. It is usually supplied in single‑phase or three‑phase variants — confirm the required voltage and frequency for your site. Installation requires a stable, level mounting area, inlet feed and separated discharge connections, and access to a water source for cleaning/flushing. Check the product spec sheet for the exact motor power, dimensions and electrical requirements before installation.

What routine maintenance and operational checks are required?

Daily/weekly checks: inspect and clear inlet screens, remove trapped debris, check torque and tension on moving parts, inspect seals and bearings, and ensure the motor ventilation is unobstructed. Periodic tasks: lubricate bearings per schedule, replace wear components (screws, liners, screens) as needed, and flush the machine after extended use. Keep a small stock of common wear parts and consult the manual for recommended service intervals.

In what real-world scenarios does this machine provide the most benefit?

It is ideal where reducing sludge volume and disposal costs is important: small municipal treatment plants, remote or decentralized systems, food and beverage plants, breweries, aquaculture farms, construction/site dewatering, and industrial workshops. Benefits include lower transport/disposal costs, easier solid handling and storage, reduced wastewater load, and improved compliance with disposal regulations.
