1yr Warranty Auger Screw Vacuum Powder Conveyor Municipal WW

A compact auger-screw vacuum powder conveyor designed for municipal wastewater use that moves dry powders and solids cleanly and continuously. Its vacuum-assisted, enclosed transfer minimizes dust and spillage while the robust, easy-to-service auger ensures reliable, low-maintenance operation in demanding environments. Backed by a 1-year warranty, it delivers energy-efficient, low-noise performance and simple installation to reduce downtime and operating costs.

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):60(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Floor area Length*Width

12.0m*6.0m

Total powder

20KW

Dissolving tank Diameter/Height

2.6m/2.5m

Treating Capacity(kg/h)

100-1000

Silo Diameter/Height

4.0m/11m

Silo volume(m3)

10-300

Processing Type

desalination

Power(W)

1 kW

Product name

Vacuum Powder Conveyor

Weight

1000

Voltage

220 V, 380 V

weight (kg)

1000

productivity

500L/Hour

warranty

1 Year

Reliable Hygienic Compact Durable

This 1yr-warranty Auger Screw Vacuum Powder Conveyor delivers dust-free, accurate feed and pneumatic transport tailored for municipal wastewater and Activated carbon dosing equipment applications. Robust carbon-steel epoxy finish with optional stainless-steel, multiple silo sizes (10–100 m3), compact floor layouts, bag filters and bin-activation provide durable quality, precise dosing (50–2000 L/h) and space-saving style. Packed in standard export cartons and shipped in 3–20 days for fast, turnkey installation and dependable on-site performance.

Reliable Auger Vacuum Conveyor

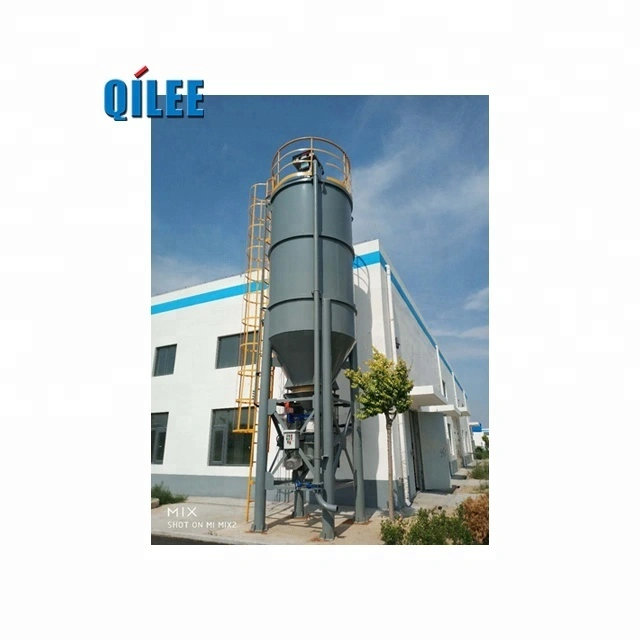

This 1yr warranty auger screw vacuum powder conveyor for municipal wastewater serves as Activated carbon dosing equipment, featuring large-capacity silos (10–100 m3), vacuum-assisted pneumatic transport, and a screw auger metering system with bin-bottom activation and bag filtration to contain dust. It meters, conveys, dissolves and mixes dry chemicals (lime, activated carbon) with dosing ranges roughly 50–2000 L/h depending on model, and offers options such as inlet water control, dissolving tanks and epoxy‑coated or stainless steel construction. The sealed vacuum design and modular layout reduce operator exposure, improve dosing accuracy and uptime, and simplify integration into municipal WW plants while being backed by a one-year warranty.

1-Year Warranty Auger Conveyor

The Auger Screw Vacuum Powder Conveyor for municipal wastewater serves as Activated carbon dosing equipment, handling bulk dry chemicals with pneumatic conveyance to reduce dust while offering silo volumes of 10–100 m3 and dosing rates of 50–2000 L/h. It features bin-bottom activation, powder metering and transporting devices, a bag filter, and carbon-steel epoxy-painted construction (stainless steel optional), with optional inlet water control and lime dissolving/mixing tanks. Multiple capacity and screw specifications provide flexible, low-dust metering and transport solutions for municipal wastewater treatment applications.

◎ Durable Transfer System

◎ Precise Dosing Control

◎ Modular Treatment Options

Efficient, Dust-Free, Reliable Conveying

Backed by a 1yr warranty and built by a brand with decades of municipal wastewater experience, the Auger Screw Vacuum Powder Conveyor WW is engineered for robust, dust-controlled handling of powdered reagents. As Activated carbon dosing equipment, it integrates a variable-speed auger feeder with a vacuum transfer chamber to deliver precise, continuous metering, prevent bridging, and minimize segregation during feed to treatment systems. Key features and advantages include modular stainless-steel construction for corrosion resistance, quick-access maintenance ports, PLC-compatible controls for accurate dosing, low energy consumption, and sealed operation that reduces spill risk and downtime in municipal WW plants.

Material introduction

The 1yr Warranty Auger Screw Vacuum Powder Conveyor for municipal wastewater is constructed from carbon steel with an epoxy paint finish as standard, with stainless steel available as an option for corrosive or sanitary applications. Critical contact components— including the auger, powder metering and transporting devices, bin-bottom activation unit and bag filter—are made or finished with corrosion-resistant materials and protective coatings to reduce dust, abrasion and contamination during handling. These material choices make the system well suited as Activated carbon dosing equipment, delivering durable, low-maintenance performance across the range of silo sizes and dosing capacities required in municipal wastewater treatment.

◎ Carbon Steel Epoxy

◎ Stainless Wetted Parts

◎ High Grade Sealing

FAQ

What is the "1yr Warranty Auger Screw Vacuum Powder Conveyor Municipal WW" and what municipal wastewater tasks is it best suited for?

It is a powder/conveying system combining a vacuum inlet with an auger (screw) feeder to move dry powders and granules in a sealed, low-dust way. In municipal wastewater (WW) plants it is commonly used for transferring and dosing chemicals such as lime, activated carbon, polymer powders, coagulants/flocculants, and dry sludge conditioners between silos, hoppers, day bins, and dosing stations.

Which materials and particle types can this conveyor handle in wastewater applications?

The unit is designed for a broad range of dry bulk materials used in WW treatment — fine to coarse powders and small granules that do not cake excessively. Common examples include hydrated lime, PAC/activated carbon, polymer powders, and powdered ferric/chloride blends. Always verify material abrasiveness, moisture/aglomeration tendency and chemical compatibility with the vendor to confirm suitability.

How is the conveyor typically installed and integrated into a municipal treatment line?

Typical installation places the vacuum pickup near the feed source (bag, hopper or silo) and the auger section between the receiving hopper and the dosing point or storage. It should be mounted on a stable frame, connected to the plant electrical and vacuum systems, properly grounded, and piped/ducted to minimize bends. Coordinate control signals with upstream feeders and downstream dosing pumps so the conveyor runs only as needed for batch or continuous transfer.

What routine maintenance and cleaning are required for reliable municipal operation?

Regular checks include inspecting and cleaning the vacuum pickup, filters and hopper; checking auger flighting and trough for wear; lubricating bearings and gearboxes per manufacturer schedule; and replacing wear parts (seals, gaskets, filters) as needed. For dosing chemicals, periodic internal cleaning helps prevent buildup and contamination between batches. Keep a small stock of critical wear parts and follow the supplier’s maintenance interval recommendations.

What common problems occur in municipal use and how can they be fixed?

Typical issues are clogging or bridging (caused by moist or sticky powders), loss of vacuum (blocked filters or leaks), inconsistent feed rate (incorrect screw speed or inlet feed), and excessive wear (abrasive materials). Remedies include drying or conditioning the material, cleaning/replacing filters, checking seals and ducting for leaks, adjusting screw speed or feed arrangement, and changing to harder-wearing screw/trough materials when needed.

What does the 1-year warranty cover and what should I do if something goes wrong?

The one-year warranty usually covers manufacturing defects in materials and workmanship under normal use. It commonly excludes routine wear parts (e.g., seals, filters, auger flighting), damage from improper installation, misuse, or corrosive/abrasive attack beyond design specs. If a problem occurs, stop use, document the issue (photos, operating conditions, serial number, installation date) and contact your supplier or service center promptly to arrange diagnostics, authorized repairs or replacement under warranty.
