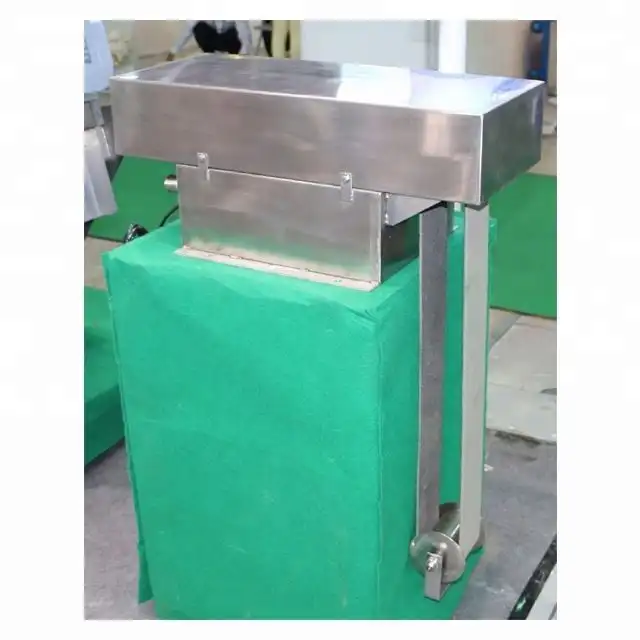

220V Floating Scum Skimmer Oil Recovery Belt - 1yr Warranty 1

220V Floating Scum Skimmer Oil Recovery Belt - 1yr Warranty 2

220V Floating Scum Skimmer Oil Recovery Belt - 1yr Warranty 3

220V Floating Scum Skimmer Oil Recovery Belt - 1yr Warranty 4

220V Floating Scum Skimmer Oil Recovery Belt - 1yr Warranty 5

220V Floating Scum Skimmer Oil Recovery Belt - 1yr Warranty 6

220V Floating Scum Skimmer Oil Recovery Belt - 1yr Warranty

The 220V Floating Scum Skimmer Oil Recovery Belt is a compact floating unit that continuously skims surface oil and scum from ponds, tanks, or wastewater and transfers it onto a belt for easy collection. Selling points: high recovery efficiency with continuous automated operation, corrosion‑resistant and durable construction, easy installation and low maintenance, energy‑efficient motor and adjustable skimming height for versatile use. Comes with a 1‑year warranty for reliability and peace of mind, helping cut cleanup costs and meet environmental requirements.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):30(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Powder(w)

Belt width(mm)

400

Recycling Capacity(L/h)

180-500

External Dimensions(mm)

800*785*524

Processing Type

desalination

Power(W)

1 kW

Material

SUS304

Weight(kg)

110

Product name

Floating Scum Skimmer

Voltage

220 V, 380 V

weight (kg)

productivity

500L/Hour

warranty

1 Year

place of origin

China

Fast, Reliable, Compact Design

The 220V Floating Scum Skimmer Oil Recovery Belt (Oil Skimmer) delivers high-efficiency oil recovery with a directional flocking fibre belt that stores up to four times more oil than steel belts, reducing downtime and boosting recovered oil purity through a secondary separation stage. Built from anti-abrasion, anti-corrosion SUS304 with a compact floating shape and multiple model sizes, it provides long service life, easy installation, and effective oil removal for reservoirs, cooling systems, separation pools, and machining fluid tanks. Packaged in standard export cartons, shipped within typical 3–20 day lead times and backed by a one-year warranty, it’s a low-maintenance, transport-ready solution that lowers disposal costs and protects equipment.

Reliable 220V Floating Skimmer

The 220V Floating Scum Skimmer Oil Recovery Belt is an Oil Skimmer built around a directional flocking fibre belt that traps oil in long-and-short fiber pockets, offering up to four times the recovery capacity of an equivalent steel belt and constructed from anti‑abrasion, anti‑corrosion materials (SUS304) with a 1‑year warranty. Its structural design pairs a non‑contact scraper with a secondary separation stage to minimize wear, maximize recovered‑oil purity, and enable continuous skimming for cooling reservoirs, flotation pools, machine cleaning tanks and cutting‑fluid systems. As a low‑maintenance, high‑efficiency Oil Skimmer available in multiple belt widths and flow capacities, it reduces disposal costs and downtime by accelerating oil separation and recycling.

Efficient 220V Oil Recovery

The 220V Floating Scum Skimmer Oil Skimmer uses a directional flocking fibre recovery belt that traps and stores oil, offering up to four times the recycling capacity of an equal-length steel belt. Made from anti-abrasion, anti-corrosion materials with minimal scraper contact, the design extends service life and performs secondary separation to significantly improve the purity of recovered oil. Available in multiple belt widths and capacities for reservoirs, cooling circuits, flotation pools and machine tool fluid tanks, the unit is compact, easy to deploy and backed by a 1-year warranty.

◎ High Capacity Flocking

◎ SUS304 Durable Design

◎ Enhanced Separation Purity

Automatic Efficient Oil Recovery

Born from years of wastewater remediation experience, this 220V Floating Scum Skimmer Oil Recovery Belt was engineered with industrial-grade materials and precision machining to ensure consistent surface‑oil capture and minimal upkeep. Its buoyant platform, sealed motor and durable recovery belt deliver continuous skimming across ponds, tanks and treatment basins while the 1yr warranty supports dependable operation and straightforward installation. As an efficient Oil Skimmer, it offers adjustable belt speed, corrosion-resistant components, energy-saving 220V performance and modular parts for quick servicing, providing faster oil recovery, lower operating costs and improved environmental compliance.

Material introduction

The 220V Floating Scum Skimmer features a directional flocking fibre belt made of long and short fibers that creates abundant oil-storage spaces, enabling the Oil Skimmer to achieve far greater recycling capacity than comparable steel belts. The flocked material is inherently anti-abrasion and anti-corrosion, and its gap-filled structure keeps the scraper from directly contacting fibers to minimize wear and extend service life. Key structural parts and housings are fabricated from durable SUS304 stainless steel, while an integrated secondary separation stage improves the purity of recovered oil.

◎ SUS304 stainless steel frame

◎ Direction flocking fiber recovery belt

◎ Non‑contact scraper & secondary separation

FAQ

What is the 220V Floating Scum Skimmer Oil Recovery Belt used for and where can it be applied?

The unit is designed to remove floating oil, grease, and surface scum from water bodies by skimming and carrying contaminants up a collecting belt for discharge. Typical applications include oil-water separators, industrial wastewater tanks, stormwater retention ponds, sewage treatment plants, lagoons, refinery sumps, and any open or contained surface where free-floating oil or scum accumulates. It is best for surface films and scum rather than finely dispersed or fully emulsified oils.

How do I install and set up the floating scum skimmer?

Mount the floating assembly so the belt rides on the water surface where oil collects (near inflow, weirs, or skimming zones). Secure the control box and 220V supply in a dry, grounded location following local electrical codes. Adjust floatation and belt height/tension so the belt just contacts the surface without submerging. Connect the discharge outlet or trough to your collection tank or drum. Always follow the manufacturer’s detailed installation guide and shut off power during adjustments.

What routine maintenance is required and how often should I replace the belt?

Perform a visual inspection weekly to check floats, belt tension, scraper, and discharge path. Clean accumulated debris and clean the belt surface as needed (frequency depends on contamination). Lubricate moving parts per the manual and inspect electrical connections monthly. Belt life varies with operating conditions and contaminant abrasiveness — typical service life ranges from months to years. Replace the belt when it becomes torn, heavily saturated, or its oil pickup efficiency drops noticeably. Keep spare belts and wear parts on hand for critical applications.

What kinds of oils and contaminants can it recover, and what are the limitations?

The skimmer excels at collecting free-floating oils, grease, scum, and light sludge on the water surface. It works best with non-emulsified, low-to-moderate viscosity oils. It is less effective on finely emulsified oil-in-water mixtures, dissolved hydrocarbons, or heavy, heavy sludge that sinks. Extremely viscous or tar-like materials may require pre-treatment or a specialized recovery method. If you plan to process unusual fluids, consult the manufacturer for compatibility.

What electrical and safety considerations should I follow when using a 220V unit?

Use a properly sized, grounded 220V circuit with suitable overcurrent protection. Install a residual-current device (RCD/GFCI) where required and follow local electrical and safety codes. The unit is not necessarily explosion-proof — do not operate in atmospheres with flammable vapors unless you have an approved explosion-proof model. Keep power disconnected before servicing, avoid running the unit in frozen conditions, and ensure stable mounting to prevent tipping or entanglement. Provide trained personnel for installation and maintenance.

What does the 1-year warranty cover and how do I make a claim?

The one-year warranty typically covers manufacturing defects in materials and workmanship under normal use for 12 months from purchase. It does not usually cover normal wear items (belts, seals, brushes), damage from misuse, improper installation, corrosion from improper chemical exposure, or unauthorized repairs. To make a claim, retain your proof of purchase and contact the vendor or manufacturer’s service department with the model and serial number. They will advise on diagnostics, return authorization, and remedy options (repair, replacement, or parts). Always check the specific warranty document provided with your unit for exact terms and procedures.
