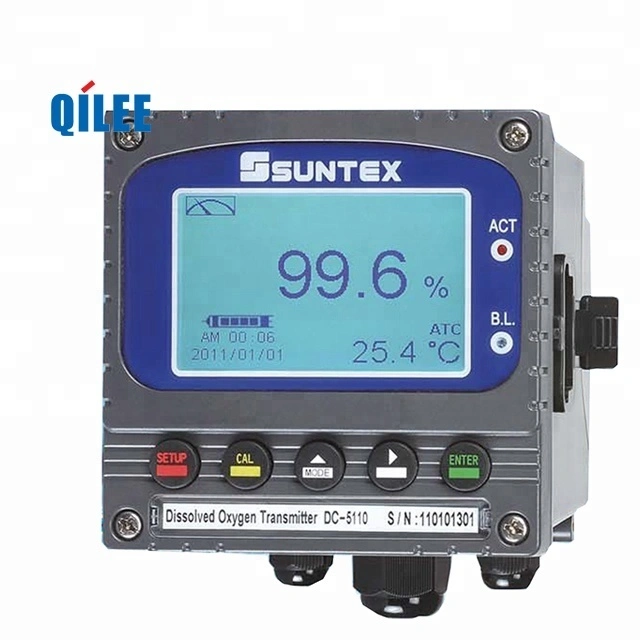

Aquarium Dissolved Oxygen Analyzer IP65 96x96mm 1

Aquarium Dissolved Oxygen Analyzer IP65 96x96mm 2

Aquarium Dissolved Oxygen Analyzer IP65 96x96mm 3

Aquarium Dissolved Oxygen Analyzer IP65 96x96mm

The Aquarium Dissolved Oxygen Analyzer IP65 96x96mm is a compact panel‑mount instrument that continuously measures dissolved oxygen to keep aquariums and aquaculture systems healthy. Its IP65 rating guards against dust and water splashes, the standard 96×96 mm size makes installation quick, and it delivers accurate real‑time readings with alarm and control outputs for automated management. Rugged construction and simple operation give reliable, low‑maintenance monitoring that reduces manual testing and protects fish and coral.

shipping:

Ocean freight

brand name:

SUNTEX

model number:

DC5100

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Place of Origin:

China

Inquiry

Write a Review

Dimensions

96 mm *96 mm *132 mm

Voltage output

DC±8V Max. 0.5W

Storage temperature

-10~70°C

Ambient temperature

0~50°C

Pressure correction

0.500 ~ 2.500 bar / 7.25 ~ 36.25 psi / 500~2500 mmHg manual adjustment

Salinity correction

0.0 ~ 45.0 ppt

Accuracy

±0.5%±1Digit

Resolution

0.1 %

Measuring range

0 ~ 600%

Product name

dissolved oxygen analyzer

Weight

1 kg

place of origin

Taiwan, China

Accurate

This Control Meter aquarium dissolved oxygen analyzer delivers reliable, IP65 waterproof monitoring in a compact 96×96mm panel, offering accurate %/ppm/mg/L readings with automatic temperature, salinity and pressure correction for stable process control in water, wastewater and fermentation. Its user-focused style—large LCM with auto backlight, text/graphic/trace modes, password protection, programmable relay outputs and automatic sensor clean—reduces downtime and simplifies maintenance. Packaged in standard export cartons with flexible wall/pipe/panel mounting and industrial-grade construction, this Control Meter ensures easy installation, long-lasting quality and faster delivery to keep operations running smoothly.

Here are six 4-word subtitle options:

This Control Meter is a compact 96 × 96 mm microprocessor dissolved oxygen analyzer with IP65 (NEMA 4X) waterproof and dustproof construction, compatible with WTW TriOxmatic or Mettler Toledo InPro D.O. sensors and capable of reporting in %, ppm and mg/L. It provides automatic temperature compensation, salinity and atmospheric pressure correction, sensor self-diagnostics, programmable auto-clean and password-protected multi-key operation while displaying measurement and temperature on a large LCM with trace/chart modes and logging (DC-5110RS). Functionally aimed at water and wastewater treatment, fermentation and industrial process control, the unit offers two isolated 0/4–20 mA outputs, configurable relay alarms, RS-485/Modbus communication and flexible wall/pipe/panel mounting for robust field deployment.

IP65 Aquarium Oxygen Analyzer

The Aquarium Dissolved Oxygen Analyzer IP65 96x96mm is a compact Control Meter designed for water and wastewater treatment, fermentation, and industrial process monitoring, featuring a waterproof IP65 (NEMA 4X) housing and a 96×96mm microprocessor transmitter. It supports WTW TriOxmatic and Mettler Toledo InPro sensors, measures in %, ppm, mg/L and temperature with salinity and atmospheric pressure corrections, and includes automatic temperature compensation, sensor self-diagnosis, and programmable auto-clean functions. With a large LCM display, dual isolated 0/4–20 mA outputs, alarm relay contacts, RS-485 interface and logbook on the DC-5110RS, and password-protected multi-key operation, this Control Meter provides reliable, user-friendly monitoring and control.

◎ product nicety 1

◎ product nicety 2

◎ product nicety 3

Accurate, Compact, Waterproof Monitoring

Crafted by a specialist instrumentation brand, the IP65-rated, 96x96mm Aquarium Dissolved Oxygen Analyzer doubles as a precision Control Meter for aquaculture and laboratory water management. It delivers fast, stable dissolved-oxygen readings with effortless calibration, a clear panel display, configurable alarms and standard outputs (4–20 mA, RS485) for reliable process control. Rugged waterproof housing, low-maintenance sensors and a compact panel-mount form factor provide easy installation, long-term stability and reduced operating costs.

Material introduction

The Aquarium Dissolved Oxygen Analyzer Control Meter is built with a watertight IP65-rated enclosure using durable ABS/polycarbonate housing, a sealed rubber gasket, and a tough polycarbonate display window to protect the large LCM from dust and moisture. Internal assemblies use corrosion-resistant mounting materials and terminals, while optional stainless-steel holder/support bases and immersion protection holders provide robust, chemical-resistant mounting for demanding water and wastewater environments. Sensor-facing consumables such as membranes, electrolyte components, and the auto-clean kit are made from chemically resistant polymers to ensure long-term stability and compatibility with WTW TriOxmatic and Mettler Toledo InPro sensors.

◎ Rugged IP65 Enclosure

◎ Protected LCM Keypad

◎ Isolated Sensor Electronics

FAQ

What is the Aquarium Dissolved Oxygen Analyzer IP65 96x96mm and where is it best used?

It is a compact panel-mounted dissolved-oxygen (DO) monitor designed for continuous measurement and display of DO in aquaculture and water systems. Typical applications include home and public aquariums, hatcheries, fish farms, filtration systems, aquaponics/hydroponics, research tanks, and other small- to medium-scale aquatic installations where stable oxygen levels are critical to animal health and process control.

How should I mount and install the 96x96mm DO analyzer in my control panel or aquarium area?

The analyzer is designed for panel mounting so install it in a dry, accessible location with the display visible. Use the correct panel cutout and securing clips or screws supplied by the manufacturer, route sensor and power cables through appropriate cable glands, and keep wiring away from high-voltage lines to reduce interference. Although the front enclosure is IP65-rated, avoid immersing the analyzer or exposing its rear connections to direct water jets—place it where it’s protected from heavy splashes and direct sunlight. Always follow the manufacturer’s wiring diagram and grounding recommendations.

How do I calibrate the dissolved oxygen probe and how often should I do it?

Calibration procedures depend on the probe type (optical or electrochemical). A common approach is an air-saturation (one-point) calibration using clean air, and for some probes a two-point calibration (air and zero) is supported. Optical probes usually require less frequent calibration (monthly or longer), while polarographic/galvanic probes often need calibration more frequently (weekly to monthly) and may require membrane replacement or electrolyte replenishment. Calibrate after initial installation, after sensor cleaning, and at a regular interval based on probe type, water conditions, and criticality of measurements.

What routine maintenance is required to keep readings accurate and the probe working reliably?

Rinse the probe with fresh water after use, remove biofouling or deposits promptly (gentle brushing or approved cleaning solution), replace membranes or electrolyte for polarographic sensors per the manufacturer’s recommendation, and inspect cables and connectors for damage or corrosion. Perform periodic recalibration and keep a maintenance log. For long-term storage follow the sensor’s storage instructions (some probes require wet storage). Regular maintenance prevents drift and extends sensor life.

The analyzer is IP65 — can it be used outdoors next to ponds or pools?

IP65 means the front enclosure is dust-tight and protected against low-pressure water jets from any direction, so it’s suitable for humid or splash-prone indoor environments such as pump rooms or poolside cabinets. However, IP65 is not a protection against immersion; avoid submerging the instrument or exposing the rear wiring and connectors to direct jet washing or sustained outdoor weather. For fully exposed outdoor installations, additional enclosures or weatherproofing are recommended.

Can this DO analyzer be connected to alarms or an automation/SCADA system?

Yes — these analyzers are commonly used with external controllers and alarm systems. Many models offer configurable alarm outputs (relays), analog outputs (e.g., 4–20 mA) and digital interfaces (such as RS485/Modbus) to integrate with PLCs, data loggers, and SCADA. Check the specific model’s manual for available outputs, wiring diagrams, and communication protocols. You can set high/low DO alarm thresholds to trigger pumps, aerators, or notifications as part of your automation strategy.
