Ceramic Hollow-Fiber Submerged Ultrafiltration Membrane 0.01um
Pore Size Ceramic Hollow Fiber Submerged Ultrafiltration Membrane

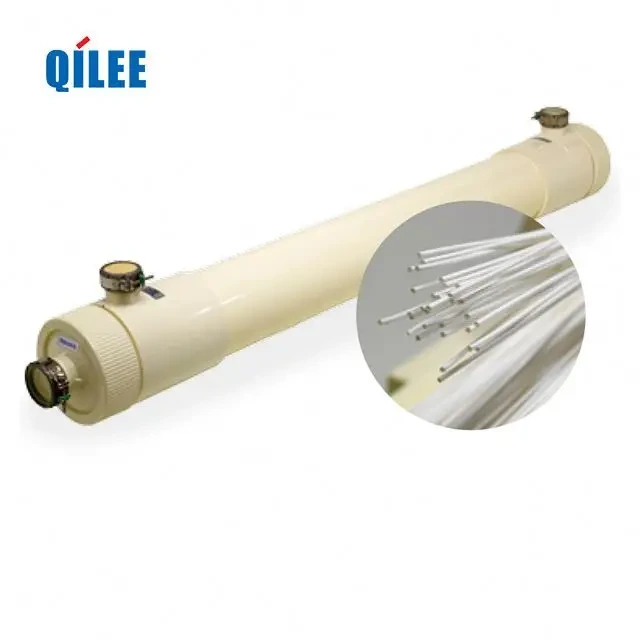

Toray Pressurized Hollow Fiber Submerged Ultrafiltration Membrane Modules
The material of Toray's Hollow Fiber (HF) Pressurized Ultrafiltration (UF) modules is PVDF (Polyvinylidene fluoride). This best grade HF membrane material provides high mechanical strength and chemical resistance (oxidation, pH).
The filtration mode is an Outside – in & Dead-End Filtration. This filtration method offers simple operating control and low energy consumption.
The possibility of the filtration of Ground Water, Surface Water, Sewage Secondary Effluent and Seawater allows a wide range of different applications:
Drinking Water Production
Tertiary Treatment of Sewage Water
RO Pretreatment in Seawater Desalination
Industrial Water Production
Reuse of Industrial Waste Water
Toray's Pressurized Series have been certified as an acceptable filtration technology for compliance with the following Certificates.
♦ AMST (Association of Membrane Separation Technology of Japan)
♦ ANSI / NSF STANDARD 61
♦ CDPH (California Department of Public Health - Drinking Water Program)
♦ KWWA (Korea Water and Wastewater Works Association)
Hollow Fiber Submerged Ultrafiltration Membrane Main Product List
Series | HFU Series | HSU Series | ||
Filtration Method | Pressured | Submerged | ||
Model | HFU-2020N | HFU-1020N | HSU-1515 | |
Molecular Weight Cut Off | 150,000 Da | |||
Nominal Pore Size | 0.01 micrometer | |||
Membrane Surface Area [Outer Surface] | 72 m² (775 ft²) | 29 m² (312 ft²) | 20 m² (215 ft²) | |
Design Flow (m³/hour) | 2.6 - 8.0 | 1.1 - 3.2 | 0.4 - 1.4 | |
Dimensions |
Diameter | 216 mm (8.50 inches) | 216 mm (8.50 inches) | 147 mm (5.79 inches) |
Length | 2,160 mm (7.087 ft.) | 1,120 mm (3.675 ft.) | 1,327 mm (4.35 ft.) | |
Weight | 110 kg (Full of water) 67 kg (After draining) | 60 kg (Full of water) 40 kg (After draining) |
18 kg (Wet conditions) | |
Material | Membrane | PVDF (Polyvinylidene uoride) | ||
Potting | Epoxy Resin or equivalent | |||
Others |
Casing : Polyvinyl chloride | Cap : ABS Protective Cylinder : Polyethylene | ||
Connection | Feed & Filtrate nozzles : Housing type joint 80A Backwash water outlet nozzle : Housing type joint 65A |
IDF/ISO Clamp Union Fitting 1.5s | ||
Max. Inlet Pressure | 300 kPa (44 psi) |
| ||
Max. Filtrating Trans-Membrane Pressure | 200 kPa (29 psi) | 100 kPa (15 psi) | ||
Operating Temperature Range | 0 - 40 degree C | |||
pH range | 1 - 10 at Filtration 0 - 12 at Chemical cleaning | |||
*Specifications subject to change without notice.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
