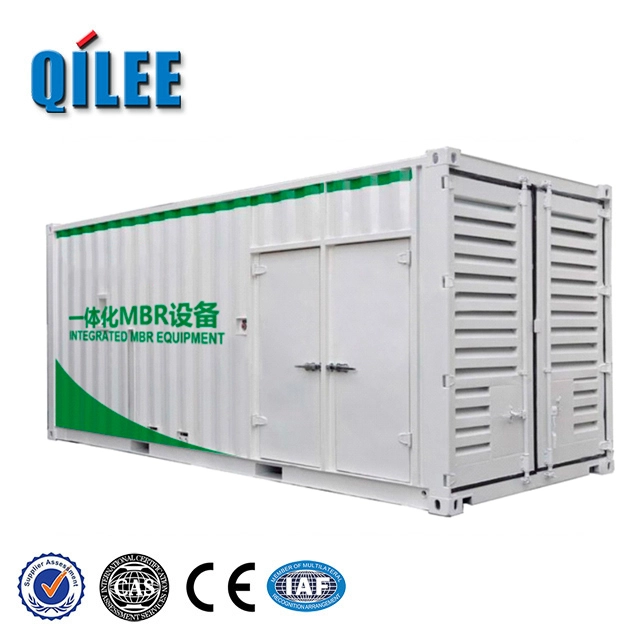

Compact MBR Sewage Plant 200L/h 1yr Warranty RO & Filtration

Compact MBR Sewage Plant 200L/h is a small, easy-to-fit wastewater unit that treats up to 200 liters per hour using membrane bioreactor (MBR) tech with built-in RO and filtration for very clean output. Selling points: high-quality MBR + RO purification, compact footprint for simple siting and install, low-odor and low-maintenance operation, energy-efficient and cost-saving, plus a 1-year warranty for peace of mind. Ideal for homes, small offices, remote sites or temporary projects that need safe water reuse and lower sewage costs.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(units):50(days),>1(units):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Occupy Area(m2)

6.0

Total Weight(tons)

5.5

Disinfection Tank(m3)

0.6

Secondary Clarifier Surface Load(m3/m2h)

1.2

Contact Oxidation Tank(m3)

Primary Clarifier

1.8

Equipment Nm

Disposal Capacity(m3/h)

Processing Type

Reverse Osmosis, Softening, desalination, Filtration

Power(W)

3 kW

Product name

Mbr Sewage Treatment Plant

Voltage

220 V, 380 V

weight (kg)

900

productivity

200L/Hour

warranty

1 Year

place of origin

Shanghai, China

Compact Efficient Reliable Filtration

Mbr Package Wastewater Treatment delivers reuse-ready, low-BOD and low-SS effluent using submerged flat-sheet membranes for reliable municipal, commercial, and industrial wastewater handling. The compact, single-reactor style with PES membranes offers high flux, low fouling, easy maintenance, and energy-efficient operation to minimize footprint and labor. Packaged in standard export cartons with 3–20 day delivery and backed by a 1yr warranty, it combines RO & filtration-grade quality with simple installation and dependable performance.

Compact MBR 200L/h Filtration

The Compact MBR Sewage Plant 200L/h is an Mbr Package Wastewater Treatment solution combining a submerged membrane biological reactor with integrated RO and filtration modules, offering a compact footprint and a 1-year warranty while using PES flat-sheet membranes for high-flux, low-fouling performance. It delivers consistent, high-quality effluent by retaining high MLSS to remove BOD, SS and fecal coliforms for reuse, reduces sludge volume and operating costs, and simplifies operation with a single-reactor design. Its stacked flat-sheet membrane elements and dedicated aeration block enable efficient air-scouring and upward cleaning to prevent clogging, ensure stable permeate production and easy retrofit or maintenance for municipal, commercial or industrial wastewater streams.

Compact 200L/h MBR Filtration

The Compact MBR Sewage Plant (200 L/h) with a one-year warranty pairs a submerged membrane biological reactor and RO/filtration to deliver high-quality treated water for discharge and reuse, offering reliable Mbr Package Wastewater Treatment for municipal, commercial, and industrial needs. Flat-sheet polyethersulfone (PES) membranes provide high flux and low fouling while retaining activated sludge at elevated MLSS to remove BOD, suspended solids and fecal coliforms more effectively than conventional systems. The compact element-and-aeration block design saves footprint and cost, simplifies maintenance and operation, and suits applications from sewage and livestock wastewater to organic effluents where energy and manpower savings are prioritized.

◎ Compact High-Flux Membrane

◎ Efficient Low-Energy Operation

◎ Reliable Low-Sludge Output

Compact Efficient Reliable Filtration

Built by a specialist team using compact membrane bioreactor technology, this Compact MBR Sewage Plant 200L/h combines rugged construction with user-friendly installation based on decades of water-treatment expertise. As a high-efficiency Mbr Package Wastewater Treatment solution, it integrates RO and multi-stage filtration to deliver reliable 200L/h throughput, a compact footprint, automated controls and a 1-year warranty for consistent effluent quality. Key advantages include energy-efficient operation, modular scalability, low maintenance with long-lasting membranes, rapid start-up and compliance-ready discharge, making it ideal for small communities, hotels and industrial pilots.

Material introduction

The Mbr Package Wastewater Treatment employs stacked flat-sheet membranes made from polyethersulfone (PES), with each membrane mounted on spacers and linked via permeate tubing to a central permeate header to deliver reuse-quality water. PES provides a hydrophilic surface, low contact angle and uniform pore distribution for high flux and low fouling, while the flat-sheet layout prevents sludge entanglement and allows efficient air-scour cleaning. Element and aeration blocks are built for compactness and durability, using robust module construction and serviceable components to minimize maintenance and extend operational life.

◎ PES Flat-sheet Membranes

◎ Spacer-supported Module Elements

◎ Structural & Aeration Components

FAQ

What is the Compact MBR Sewage Plant 200L/h with RO & Filtration and what waste streams can it treat?

It is a small membrane bioreactor (MBR) wastewater treatment unit rated for about 200 liters per hour, combined with post-filtration and an RO stage. It is intended for domestic and light commercial sewage (blackwater and greywater) such as from homes, small guesthouses, remote camps, restaurants or construction site facilities. It is not designed for heavy industrial effluent containing strong solvents, toxic chemicals, or very high concentrations of oils and solids without appropriate pre‑treatment.

In which application scenarios is this unit most suitable?

Typical uses include single-family estates, small hotels/guesthouses, remote worker camps, village or resort decentralised treatment, and reuse systems for toilet flushing, laundry or irrigation (subject to local regulations). It also works well for upgrading septic tank effluent where land for discharge is limited or higher effluent quality is required. Avoid locations with frequent large surges of industrial waste unless pre-treatment is provided.

What are the main installation and site requirements?

The unit needs a level, stable base (indoor or sheltered outdoor location), access to influent sewer connection, power supply and a discharge or holding point for treated effluent. Provide a pumped or gravity feed within the manufacturer’s inlet specifications; protect the unit from freezing and direct sunlight; ensure ventilation for mechanical/electrical components. A grease trap and coarse screen are recommended upstream of the unit if kitchen wastes are present.

What routine maintenance and consumables should operators plan for?

Routine tasks include periodic inspection of pumps, checking control alarms, cleaning or replacing pre-filters (frequency depends on load), membrane backwash cycles, and chemical clean-in-place (CIP) of the MBR and RO membranes per the manual. Expect cartridge filters and dosing chemicals (if used) to be replaced on a schedule, and RO membranes typically replaced every 2–5 years depending on feed water quality. Sludge or bio-solids removal will be required periodically (typically every few months to a year depending on loading).

What effluent quality and reuse options can be expected from the MBR + RO system?

The MBR stage produces very low suspended solids and greatly reduced BOD/COD and pathogens compared with conventional treatment; the added RO and fine filtration stage further reduces dissolved salts, organics and microorganisms. Treated water from the MBR may be suitable for non-potable reuse (toilet flushing, irrigation, laundry) and, after RO plus final disinfection and verification to meet local standards, may be suitable for higher-grade uses. Always confirm compliance with local regulations and perform periodic lab testing before reuse.

What does the 1‑year warranty cover and what are common troubleshooting steps?

The one-year warranty typically covers manufacturing defects in materials and workmanship; it normally does not cover fouling, misuse, improper installation, freeze damage or routine consumables (filters, membranes worn through normal use). Common issues include pump failure (check power and fuses), high tank levels (check inlet blockages or pump operation), increased transmembrane pressure or reduced flow (indicates membrane fouling—perform backwash/CIP), and RO performance drop (check pre-filters and pressure). Contact the supplier for fault diagnosis and service guidance, and keep records of maintenance to support any warranty claims.
