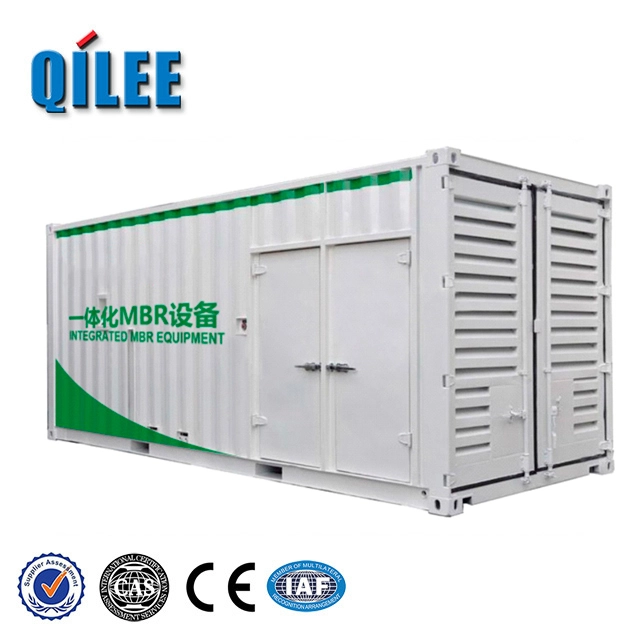

Containerized Small Industrial MBR+RO WTP 200L/h 1yr.

Picture a sturdy steel box parked at the edge of your site, humming softly as crystal-clear water flows out — this containerized MBR+RO unit turns rough feed into pure water at 200 L/h. Inside, smart membranes and tough pumps move in quiet rhythm, a small plant that works like a clean-water hero for your crew and gear. Compact, fast, and backed by 1-year support, it brings calm, safe water to any scene, day after day.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(units):30(days),>1(units):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Occupy Area(m2)

6.0

Total Weight(tons)

5.5

Disinfection Tank(m3)

0.6

Secondary Clarifier Surface Load(m3/m2h)

1.2

Contact Oxidation Tank(m3)

Primary Clarifier

1.8

Equipment Nm

Disposal Capacity(m3/h)

Processing Type

Reverse Osmosis, Softening, desalination, Filtration

Power(W)

3 kW

Product name

Containerized Water Treatment Plant

Voltage

220 V, 380 V

weight (kg)

970

productivity

200L/Hour

warranty

1 Year

place of origin

Shanghai, China

Containerized Turnkey Reliable Purification

Mbr Package Wastewater Treatment provides reuse-quality effluent at 200 L/h with a compact containerized MBR+RO system that minimizes footprint and operating costs. The containerized, modular block design houses stacked flat-sheet PES membranes and industrial RO modules for high flux, low fouling, and reliable BOD/SS removal. Industrial-grade construction, a user-friendly control layout, standard export carton packing for accessories, and a one-year warranty ensure durable, easy maintenance and fast 3–20 day delivery.

Compact Containerized MBR-RO Unit

The Containerized Small Industrial MBR+RO WTP 200L/h 1yr is a modular Mbr Package Wastewater Treatment system combining a submerged flat-sheet PES membrane biological reactor with downstream RO polishing to deliver 200 L/h of high-quality permeate in a compact containerized footprint. Its membrane retains high MLSS to efficiently remove BOD and suspended solids while the RO stage lowers turbidity and dissolved contaminants, providing reuse-ready water with reduced sludge, lower energy consumption and simplified controls for low operation and maintenance costs. Built as two integrated blocks—stacked membrane elements and an aeration module—the rugged container design enables easy installation, minimal site area, low fouling and straightforward cleaning, suitable for municipal, commercial, livestock and organic wastewater applications.

Compact Containerized MBR+RO System

The containerized Small Industrial MBR+RO water treatment plant (200 L/h) is a compact, skid-mounted system that combines membrane biological reactor treatment with reverse osmosis polishing to produce high-quality effluent for discharge and reuse. Mbr Package Wastewater Treatment employs submerged flat-sheet polyethersulfone (PES) membranes with high flux and low fouling to retain activated sludge at high MLSS, effectively removing BOD, suspended solids and pathogens while minimizing footprint and simplifying maintenance. Modular element and aeration blocks enable easy installation and operation across sewage, municipal, commercial, livestock and organic wastewater applications, with one-year support for reliable performance.

◎ Compact Containerized Solution

◎ Submerged MBR Performance

◎ RO Polishing Assurance

Compact Efficient Reliable Purification

Developed by veteran engineers and backed by a quality-focused brand, the Containerized Small Industrial MBR+RO WTP 200L/h 1yr. combines compact design and rugged containerized construction to deliver reliable onsite Mbr Package Wastewater Treatment for small industrial sites. Its integrated MBR and RO stages provide high-efficiency biological treatment and membrane polishing to produce reusable water at 200 L/h, while plug-and-play containerization, automated controls, and a one-year warranty simplify installation, operation, and service. Key features include corrosion-resistant housing, low-energy aeration and RO modules, remote monitoring, easy membrane maintenance, and modular scalability—offering a small footprint, stable effluent quality, reduced operating costs, and rapid deployment.

Material introduction

The Containerized Small Industrial MBR+RO WTP 200L/h is housed in a corrosion-resistant steel container with epoxy coating and insulated composite panels, while internal tanks, supports and process piping are fabricated from stainless steel for chemical and mechanical durability. Filtration is based on hydrophilic polyethersulfone (PES) flat-sheet membranes in the Mbr Package Wastewater Treatment module, with chemically resistant permeate headers and fittings to minimize fouling and protect membrane life. Auxiliary equipment—pumps, valves and dosing lines—uses cast iron or SS316 and PTFE/HDPE components as appropriate, and RO stages employ thin-film composite elements for reliable permeate quality.

◎ Membrane Module Materials

◎ Structural & Housing Materials

◎ Auxiliary & Wear Parts Materials

FAQ

What is the "Containerized Small Industrial MBR+RO WTP 200L/h 1yr." and what technologies does it use?

It is a compact, containerized water treatment plant combining a Membrane Bioreactor (MBR) for biological and solids separation with a Reverse Osmosis (RO) system for dissolved solids removal. The unit is rated to produce about 200 liters per hour of treated water and comes with a one‑year warranty.

What application scenarios is this unit best suited for?

It is designed for small industrial and decentralized reuse needs: factories and workshops (process water, cleaning, cooling), remote worksites and camps, small food or beverage plants, laboratories, car washes, construction sites, pilot plants, and emergency/disaster response where compact, transportable high-quality water treatment is required.

What kinds of feed water or wastewater can this system handle?

Typical feeds include low‑to‑moderate strength industrial wastewater, municipal sewage or greywater, surface water, and many types of non‑highly corrosive or high‑salinity industrial effluents. The MBR stage handles solids and biodegradation; the RO reduces dissolved salts and organics—very high strength or oily/chemical-laden waste may need special pre‑treatment.

What quality of water does the system produce and what can the permeate be used for?

Combined MBR+RO treatment yields high‑quality permeate suitable for non‑potable reuse such as process make‑up, cooling tower feed, equipment washing, irrigation, or sanitary uses. With appropriate post‑treatment (e.g., disinfection, remineralization) it can also be made suitable for potable applications where local regulations and approvals permit.

How easy is it to install and operate the containerized unit on site?

The system is largely plug‑and‑play: delivered in a ready‑to‑operate container, it requires connection to feed and discharge piping, a power supply, and basic site leveling. Commissioning is typically quick; operation is semi‑automated but benefits from a trained operator for routine checks, parameter adjustments, and troubleshooting.

What are the routine maintenance needs, consumables, and warranty terms?

Routine maintenance includes periodic membrane cleaning (RO chemical cleaning and MBR backwash/air scouring), replacement of RO and MBR membranes as they age, and upkeep of pumps, filters, and dosing systems. Consumables include chemicals for cleaning and disinfection, pre‑filters, and occasional spare parts. The product includes a 1‑year warranty (parts and labor) with optional extended service and spare parts agreements recommended for continuous operation.
