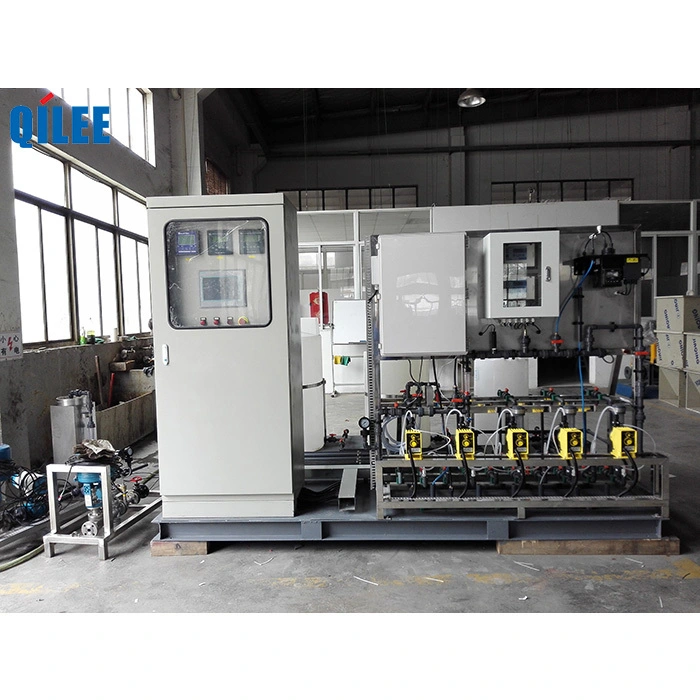

Detergent Circulation Water Volumetric Dosing System, Auto 1

Detergent Circulation Water Volumetric Dosing System, Auto 2

Detergent Circulation Water Volumetric Dosing System, Auto 3

Detergent Circulation Water Volumetric Dosing System, Auto 4

Detergent Circulation Water Volumetric Dosing System, Auto 5

Detergent Circulation Water Volumetric Dosing System, Auto 6

Detergent Circulation Water Volumetric Dosing System, Auto

The Detergent Circulation Water Volumetric Dosing System, Auto is a compact automatic metering unit that injects precise volumes of detergent into recirculating water loops. It uses volumetric pumps and programmable control to deliver repeatable doses, reducing chemical waste and ensuring consistent cleaning performance. The system is designed for easy integration with existing circulation tanks and PLCs, with simple settings, flow monitoring, and low maintenance.

Usage scenarios:

- Ideal for automated parts washers and CIP (clean-in-place) systems in food, beverage, and pharmaceutical plants where consistent detergent concentration is critical.

- Suited to commercial laundries, car washes, and institutional dishwashing lines to maintain uniform cleaning strength and reduce overuse of chemicals.

- Useful for water treatment and recirculation systems in HVAC or industrial cooling circuits where periodic dosing of cleaning agents or biocides is required.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):60(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

size

2000*1000*1700

Suitable for medicament

Electronic control

0,1

Maximum number of instruments

Pump type

Diaphragm pump

Pump qty

4sets

Maximum flow rate

1000LPH

Processing Type

desalination

Power(W)

3 kW

Product name

Volumetric Dosing System

Voltage

220 V, 380 V

weight (kg)

100

productivity

500L/Hour

warranty

1 Year

place of origin

Shanghai, China

core components

Motor

machinery test report

Provided

video outgoing-inspection

Provided

Precise Reliable Compact Dosing

QWDS Polymer dosing system delivers automated volumetric chemical dosing with precise screw- or diaphragm-pump control and online monitoring of pH, residual chlorine and sludge concentration to cut chemical waste and ensure regulatory compliance. Its compact, modular skid shape and stainless-steel construction, plus safety fittings like back-pressure and relief valves, filters and diaphragm gauges, simplify installation and minimize maintenance downtime. Packaged in standard export cartons and offered in configurable 2/4/6-pump styles, it enables fast delivery, easy DCS integration and reliable long-term operation for wastewater treatment and sludge dewatering.

Precision Circulating Detergent Dosing

The QWDS Polymer dosing system is a volumetric detergent circulation water dosing platform that delivers precise, automatic metering of acids, alkalis, PAC, PAM, carbon sources, nutrients and demulsifiers for coagulation, regulation and sludge dewatering processes. Built with selectable high-capacity screw or diaphragm metering pumps and safety-focused accessories such as back-pressure and safety valves, filters, diaphragm pressure gauges and cleaning pipelines, it supports online monitoring of pH, residual chlorine, DO, suspended solids and sludge concentration and enables automatic pump switching. Its modular model options and DCS integration allow dynamic dosage matching to total water volume and process concentration, reducing chemical use, improving process stability and simplifying maintenance.

Automatic Detergent Dosing System

The QWDS Polymer dosing system is a volumetric detergent circulation water dosing solution designed for wastewater treatment processes such as regulation, coagulation and sludge dewatering, enabling automatic addition of chemicals including acids, alkalis, PAC, PAM, carbon sources and demulsifiers. It offers options for imported screw or diaphragm metering pumps, automatic pump switching, online monitoring of parameters like pH, residual chlorine, DO and suspended solids, and safety components such as back-pressure and safety valves, filters and diaphragm pressure gauges. The system can link to on-site DCS to automatically match dosage to total water volume and process concentration and is available in multiple pump configurations to meet varying flow requirements.

◎ product nicety 1

◎ product nicety 2

◎ product nicety 3

Accurate, Efficient, Automated Dosing

Built by a team with decades of process engineering experience, the QWDS Polymer dosing system combines stainless-steel construction and precision volumetric pumps to deliver a durable Detergent Circulation Water Volumetric Dosing System, Auto optimized for consistent performance. It automates accurate polymer dosing and detergent circulation with closed-loop control, real-time flow metering, self-priming capability and programmable schedules to minimize waste and simplify maintenance. Key features include auto-calibration, corrosion-resistant wetted parts, touchscreen interface, remote monitoring and safety interlocks, offering reduced chemical consumption, improved process stability, lower labor costs and rapid ROI.

Material introduction

The QWDS Polymer dosing system features a robust construction combining corrosion-resistant stainless steel frames and housings with chemical-grade HDPE or FRP storage tanks to withstand acids, alkalis and polymer flocculants. Fluid-contact components use solvent- and abrasion-resistant materials—PVDF/PVC piping, PTFE or EPDM diaphragms and Viton seals—while screw and diaphragm metering pumps employ stainless or specialty-coated wetted parts for long service life. Standard safety and process parts such as back-pressure valves, filters, diaphragm pressure gauges and cleaning pipelines are specified in compatible materials to ensure stability and seamless integration with onsite DCS and automated dosing controls.

◎ Stainless Steel Frames

◎ material introduction 2

◎ PVDF PTFE HDPE

FAQ

What is a Detergent Circulation Water Volumetric Dosing System, Auto and where is it typically used?

It is an automated dosing system that measures and injects precise volumes of detergent into circulation water systems using volumetric metering (flow meters or positive displacement pumps). Typical applications include industrial laundries, food and beverage CIP lines, breweries, pharmaceutical cleaning, car washes, and any process requiring consistent detergent concentration in recirculating wash or cleaning water.

How does the volumetric dosing function work in circulating water systems?

The system uses a flow meter or a calibrated volumetric pump to deliver a set ratio of detergent per volume of water circulated. It monitors water flow or time and injects detergent proportionally, maintaining a target concentration automatically as water flow or cycle length changes. Some systems add feedback from conductivity or concentration sensors for closed-loop control.

What types of detergents and chemicals are compatible with this system?

Most alkaline, acidic, and neutral liquid detergents formulated for CIP and process cleaning are compatible, provided their chemical compatibility matches the pump, seals, tubing, and materials of construction (typically PE, PP, PVDF, PTFE, and stainless steel). Avoid undiluted solvents, highly viscous pastes, or solids without confirming manufacturer compatibility and viscosity limits.

How is the system installed and integrated into existing circulation lines?

Installation usually involves mounting the dosing pump and control module near the circulation loop, connecting the dosing line to the return or injection point, and linking the water flow signal or flow sensor to the controller. Electrical power, a suction line from the chemical tank, and optional concentration sensors, alarms, and remote communications are also connected. Commissioning includes setting dosing ratios and verifying injection points to ensure proper mixing.

What routine maintenance and calibration does the automatic volumetric dosing system require?

Regular tasks include checking and cleaning strainers/filters, inspecting and replacing pump tubing or diaphragms at recommended intervals, verifying and calibrating flow meters and volumetric pumps, checking for leaks, and verifying concentration using conductivity or sampling. Follow manufacturer schedules for preventive maintenance to retain accuracy and extend component life.

What common problems occur and how can they be troubleshooted?

Common issues: underdosing from air in suction lines, clogged suction filters, worn pump tubing, or incorrect flow meter signals — remedy by priming lines, cleaning filters, and replacing tubing. Overdosing may be caused by misconfigured dosing ratios or sensor errors — check controller settings and sensor calibration. Alarms for low tank level, pump fault, or communication errors usually indicate supply or electrical issues; inspect tank level switches, wiring, and connectors. If unsure, consult the system manual or vendor support.
