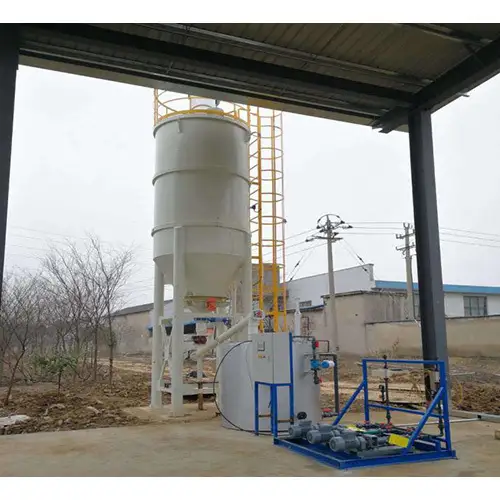

Potassium Permanganate Dosing System

Product Introduction
The potassium permanganate dosing system is a fully automatic complete set of dosing systems that mix potassium permanganate powder with water at a certain concentration and accurately add it to water
Equipment.
The main workflow is to use a water injector to absorb the material, store and dissolve it in a closed storage tank, and add it to a reasonable point using a metering pump to purify the water quality.

Details
Feeding module: integrated with water injector, centrifugal pump, suction pipe, supporting pipelines, valves, etc.
Function: Implement the feeding, mixing, and dissolution of potassium permanganate powder.
Storage module: integrated storage tank, transparent level pipe, ultrasonic level gauge, electric ball valve, manual butterfly valve, sampling valve, etc.
Function: Storage of prepared medications.
Feeding module: adopting an integrated pry device, the metering pump, pulsation damper, safety valve, back pressure valve, Y-shaped filter, flowmeter, valve, pipeline, control box, etc. are installed on the same bracket.
Function: Accurate dosing.
Control module: integrates control cabinet, touch screen, PLC and other equipment.
Function: Automated control of the entire system.

●Adopting modular design, each module is interconnected and independent into blocks, and the equipment is arranged uniformly and aesthetically on site;
●Water jet feeding, dissolution and dilution are completed in one step, simple and reliable;
●Advanced equipment, equipped with digital metering pumps to achieve precise dosing;
● It can achieve fully automated feeding and unmanned operation;
●The medicine should be stored in a sealed environment, and the site should be clean and tidy.
