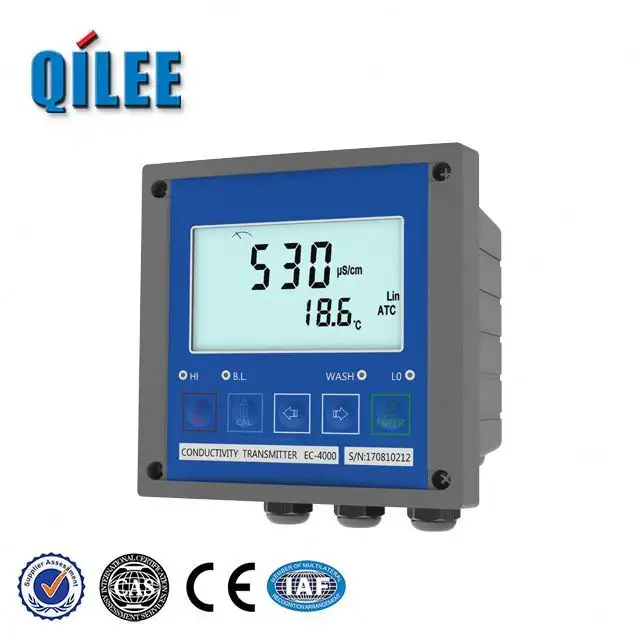

Online resistivity conductivity meter for water

Resolution:

0.001/0.01/0.1μS/cm, 0.01/0.1ms/cm

Measuring range:

0μS/cm~1999ms/cm

Model Number:

EC-4000

Product name:

conductivity meter

Inquiry

Write a Review

QILEE QILEE stands out from others for its practical and aesthetic design.

Overview

Relay Output:Hi/Lo contact and hysteresis programmable

Analog Output:2 sets of isolated 4~20mA output corresponding to EC, temp. setting

Serial Interface:RS-485 Modbus

Ambient Temperature:-20~60℃

Power Supply:88~265V AC, 50/60Hz; or 24V DC

Dimensions:144mm x 144mm x115mm (H x W x D)

Place of Origin:Shanghai, China

Brand Name:QILEE

Model Number:EC-4000

Product name:conductivity meter

Measuring range:0μS/cm~1999ms/cm

Resolution:0.001/0.01/0.1μS/cm, 0.01/0.1ms/cm

Accuracy:±1%±1Digit

Supply Ability

Supply Ability:100 Set/Sets per Month conductivity meter

Packaging & Delivery

Packaging Details:Online resistivity conductivity meter for water is packed in standard export packing

Port:shanghai

Online resistivity conductivity meter for water

Product Description

Conductivity meter Features:

144 x 144 mm microprocessor conductivity/resistivity transmitter

Waterproof design, suitable for wall/panel/pipe mounting

Large LCD to display working status

Compatible with 2-or 4-electrode cell

Manual/automatic temperature compensation

Switch measuring range automatically/manually

Combination keys to access Setting and Calibration mode to improve parameter protection

Conductivity meter Application:

Widely used in surface water, pure water, city water, circulation water and reclaimed water systems etc.; and fields like electroplating, electronics, chemical industry, food industry and pharmaceuticals fields etc.

Conductivity meter Specifications:

Model		EC-4000
Measuring range	Conductivity	0μS/cm~1999ms/cm
	Resistivity	0.00~19.99MΩ.cm
	Temp.	-30.0~130.0℃
Resolution	Conductivity	0.001/0.01/0.1μS/cm, 0.01/0.1ms/cm
	Resistivity	0.01MΩ.cm
	Temp.	0.1℃
Accuracy	Conductivity	±1%±1Digit
	Resistivity	±1%±1Digit
	Temp.	±0.2℃±1Digit
Temperature Compensation		Linear/Non-linear selectable; Automatic compensation with Pt1000/NTC30K; or manual adjustment
Cell Constant		2-eletrode 0.05cm-1, 4-electrode 0.3000cm-1; User freely selectable 0.001~19.99cm-1
Relay Output		Hi/Lo contact and hysteresis programmable
Wash contact		ON:0~999sec./OFF: 0~999hours/hysteresis: 0~99sec. Time interval programmable
Analog Output		2 sets of isolated 4~20mA output corresponding to EC, temp. setting
Serial Interface		RS-485 Modbus
Ambient Temperature		-20~60℃
Power Supply		88~265V AC, 50/60Hz; or 24V DC
Dimensions		144mm x 144mm x115mm (H x W x D)
Cut off Dimensions		138mm x 138mm (H x W)
Installation		Wall or Panel or Pipe mounting
Ingress Protection		IP65
