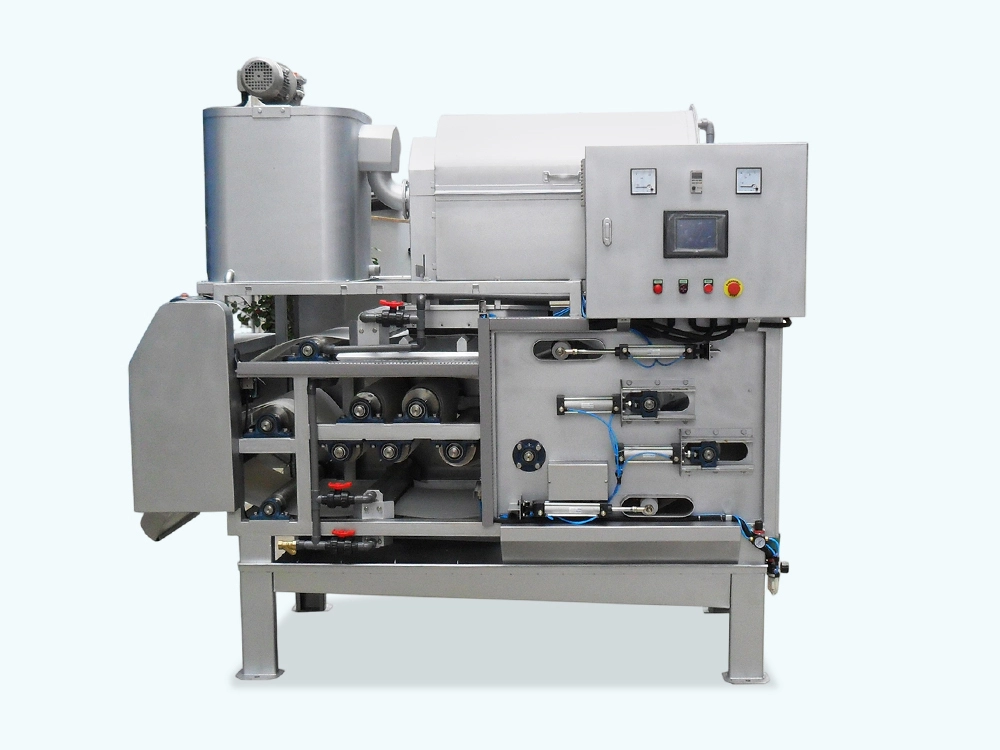

QTB Slugde Dewatering Machine
Features:
● Material of the main structure.
● Belt: imported from America and has a long service life.
● Low power consumption,slow-speed of revolution and low noise, the level of noise is no more than 75dB(A).
● Adjustment of belt: pneumatic regulated,ensures the stability of the machine.
● Multi-point safety detection and emergency stop device: improve the safety of operation.
● The design of the system is obviously humanized and provides conveniencein operation and maintenance.
● Material of the main structure.
● Belt: imported from America and has a long service life.
● Low power consumption,slow-speed of revolution and low noise, the level of noise is no more than 75dB(A).
● Adjustment of belt: pneumatic regulated,ensures the stability of the machine.
● Multi-point safety detection and emergency stop device: improve the safety of operation.
● The design of the system is obviously humanized and provides conveniencein operation and maintenance.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application
● Sludge dewatering of various industrial waste water.
● Sludge dewatering of butchery, husbandry.
● Slurry and water separation in food& beverage industry, chemical industry, mining and other industries.
● Sludge dewatering of city sewage, excretion, water purifying industries.
Technical Data & External Dimensions Of Belt Presses
| Model Spec. |
QTB-500 | QTB-750 | QTB-1000 | QTB-1250 | QTB-1500 | QTB-1500L | QTB-1750 | QTB-2000 | Remark | |
| Belt Width(mm) | 500 | 750 | 1000 | 1250 | 1500 | 1500 | 1750 | 2000 | ||
| Treating Capacity(m³/hr) Inlet Consistency(s.s.1.5~2.5%) |
3.0~5.2 | 4.5~7.5 | 6.5~10.5 | 7.5~12.5 | 9.5~16 | 12~20.5 | 15~24.5 | 18~30 | (depends on the slurry feature) | |
| D.S. (kg/hr) Dried Sludge |
45~78 | 68~113 | 98~158 | 113~188 | 143~240 | 180~308 | 225~368 | 270~450 | (depends on the slurry feature) | |
| Water Contents Rate(%) | 75~84.5 | 75~84.5 | 75~84.5 | 75~84.5 | 75~84.5 | 75~84.5 | 75~84.5 | 75~84.5 | (depends on the slurry feature) | |
| Power Consumption (HP) |
Driving Motor | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 | |
| Disposal Agitator Motor | 1/4 | 1/4 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | 1 | ||
| Drum Thickener | 1/4 | 1/4 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | ||
| Lower Collecting Tray for Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | None | None | ||
| External Dimensions | L | 2600 | 2600 | 2600 | 2600 | 2700 | 3300 | 3300 | 3400 | Pls ask the actual Dimension before ordering. |
| W | 1050 | 1300 | 1550 | 1800 | 2150 | 2150 | 2400 | 2650 | ||
| (Reference)(mm) | H | 2150 | 2350 | 2350 | 2350 | 2500 | 2500 | 2500 | 2600 | |
| Base Dimension L1XW1(mm) | 2100x830 | 2100x1080 | 2100x1330 | 2100x1580 | 2100x1830 | 2450x1860 | 2580x2110 | 2580x2360 | ||
| Reference Weight(kgs) | 830 | 1000 | 1210 | 1450 | 1850 | 2200 | 2450 | 2850 | ||
| Remark:Our company will reserve the modifying right of the above specifications. | ||||||||||
Sludge Dewatering Allocation Schema For Peripheral Equipment
Treatment Flowchart
Sludge Dewatering Examples
Food Factory
Chemical Plant
Winery
Dairy Plant
Pharmaceutical Factory
Slaughtering Plant
New Field
