Test liquid meter aquarium ph ec controller
The product has been checked at every stage of production under the supervision of professional quality inspector to ensure the superior quality.
Overview
Resolution:0.01pH
Accuracy:0.01pH±1Digit
Ingress Protection:IP65
Serial Interface:RS-485 Modbus
Ambient Temperature:-20~60℃
Dimensions:144mm x 144mm x 115mm
Place of Origin:Shanghai, China
Brand Name:QILEE
Model Number:PC-1000RS
Type:Aquarium ph ec controller
Measuring Ranges:-2.00~16.00 pH
Installation:Wall or Panel or Pipe mounting
Cut off Dimensions:138mm x 138mm
Supply Ability
Supply Ability:100 Set/Sets per Month
Packaging & Delivery
Packaging Details:Test liquid meter aquarium ph ec controller is packed in standard export packing
Port:shanghai
Lead Time :Shipped in 10 days after payment

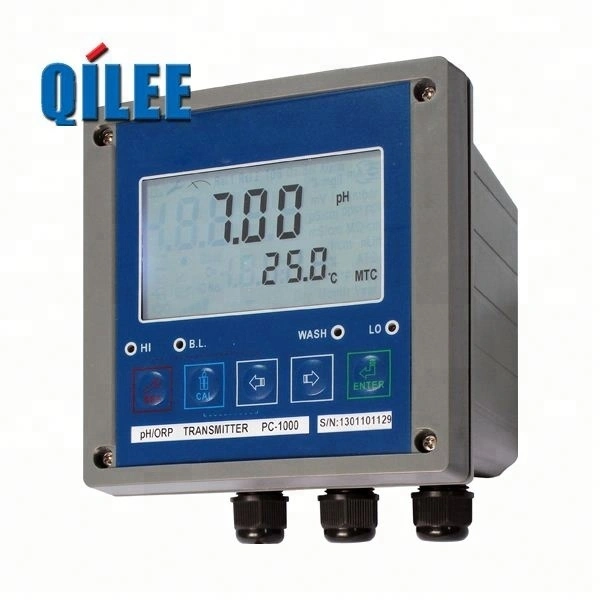

Test liquid meter aquarium ph ec controller1
Quarium ph ec controller Features:
144 x 144 mm microprocessor pH/ORP transmitter
Waterproof design, suitable for wall/panel/pipe mounting
Large LCD to display working status
Time washing function with programmable time interval
Automatic calibration; automatic/manual temperature compensation
Provide solution grounding function to eliminate electricity disturbance on sample
Combination keys to access Setting and Calibration mode to improve parameter protection
Aquarium ph ec controller Applications:
Widely used in environment-protection water treatment, surface water, pure water and circulation water systems etc.;as well was electroplating, electronics, printing and dyeing, chemical industry, food industry and pharmaceuticals fields; perform excellent in wastewater treatment, pollution source monitoring and industry processes etc.
Product Technical Parameters:
| Model | PC-1000 | PC-1000RS | |
|---|---|---|---|
| Measuring Ranges | pH | -2.00~16.00 pH | |
| ORP | -1999~1999 mV | ||
| Temp | -30.0~130.0℃ | ||
| Resolution | pH | 0.01pH | |
| ORP | 1mV | ||
| Temp | 0.1℃ | ||
| Accuracy | pH | 0.01pH±1Digit | |
| ORP | 1mV±1Digit | ||
| Temp | 0.2℃±1Digit | ||
| Temperature Compensation | Automatic temperature compensation with Pt1000/Pt100 dual mode | ||
| Manual adjustment | |||
| Relay Output | Hi/Lo contact and hysteresis programmable | ||
| Wash Contact | Programmable time control; compatible with Hi/Lo | ||
| Analog Output | 2 sets of isolated 4~20mA output corresponding to pH/ORP/temp. setting | ||
| Serial Interface | – | RS-485 Modbus | |
| Solution Grounding | Eliminate electrical disturbance on solution | ||
| Ambient Temperature | -20~60℃ | ||
| Power Supply | 88~265V AC, 50/60Hz; or 24V DC | ||
| Dimensions | 144mm x 144mm x 115mm (H x W x D) | ||
| Cut off Dimensions | 138mm x 138mm (H x W) | ||
| Installation | Wall or Panel or Pipe mounting | ||
| Ingress Protection | IP65 | ||
