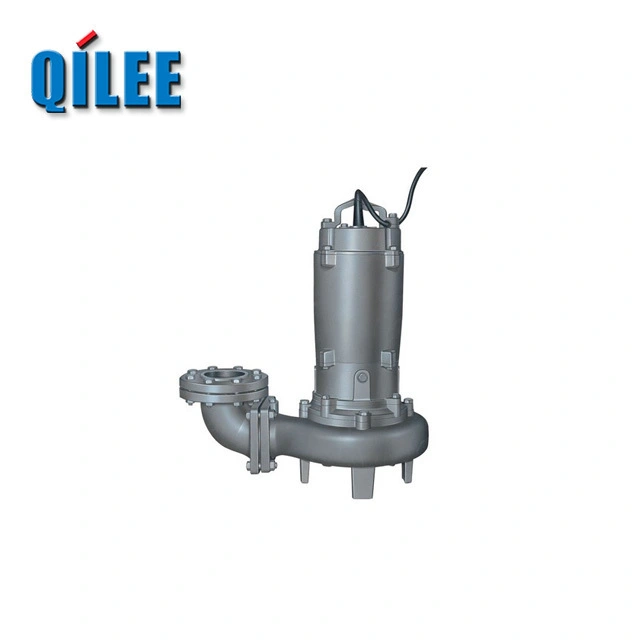

Water Sewage Acid Resistant Submersible Pump

Pressure:

High Pressure

Model Number:

PS65-2.2

Structure:

submersible pump

Brand Name:

QILEE

Inquiry

Write a Review

The quality standards of this offered products maintain consistent with adequate testing facilities.

Overview

Capacity(m3/h): 23

Head(m): 15

Eff.(%): 60

Motor power(kw): 2.2

Outlet(mm): 65

Weight(kg): 70

Installation seat: NO

Usage: Water

Application: Submersible

Brand Name: QILEE

Model Number: PS65-2.2

Place of Origin: Shanghai, China

Pressure: High Pressure

Structure: submersible pump

Product name: Submersible Water Pump

Speed(r/min): 1450

Power: Electric

Fuel: Diesel

Supply Ability

Supply Ability:10 Piece/Pieces per Month Submersible Water Pump

Packaging & Delivery

Packaging Details:High Pressure 5 Hp Submersible Water Pump is packed in standard export packing

Port:Shanghai

Product Description

Submersible Water Pump Feature:

MOTOR

Squirrel cage, induction motors are F class insulation. motor protection grade is IP68.

NON-CLOG IMPELLER

Well statically & dynamically balanced Non-Clog impeller is designed to allow sizable spherical solids to pass the plow passage easily without clogging.

It adopts rigorous technics so that vibration and noise can be farthest reduced.

SEAL MECHANISM

The cable assembly is formed to one piece . The mechanical seals protect the motor from contacting the pumping liquids.

Two ways of the seal are in serieswith each other and individually work to provide the motor with a dual protection.

AUTO-SETTER

To allow pump for easy installation, maintenance & reparation, as it is no need to empty the tank first.

LEAKAGE DETECTOR

Built-in leakage detector in the oil chamber can dectet leakage from the damage of the mechanical seal.

(The power lower than 15KW is optional,not lower than 15KW is standard accessories.)

Built-in leakagedetector in the wiring box can check if a leak in it,The leakage detector offers pump anautomatic protection.

(Not stamdard accessories, the power not lower than 18.5KW is optional)

HEAT-DETECTOR

Built-in heat protector in motor, it secures the protection of motor against burning out.

(The power lowerthan 15KW is optional,not lower than 15KW is standard accessories.)

Overload & overheating to Built-in heat protector in bearing, when the bearing is abnormal and the temperature rises to disconneting temperature, the protector automatically cat off power supply to protect the bearing.(options)

Submersible Water Pump Application:

Wastewater lift station;

Municipal wastewater treatment plant;

Building wastewater treatment system; Animal & poultry farm wastewater treatment system;

Hospital, school, community etc. Wastewater treatment system; Food, paper, mining, textile,leather, chemical industry etc. wastewater treatment system.

Water purification system.

Submersible Water Pump Construction:

Submersible diesel pump selection of models:

Model	Speed (r/min)	Capacity (m3/h)	Head (m)	Eff.(%)	Motor power (kw)	Outlet (mm)	Weight (kg)
PS50-0.75	2900	10	10	58	0.75	50	30
PS50-1.5	2900	18	15	60	1.5	50	33
PS50-2.2	2900	15	22	53	2.2	50	50
PS50-2.2A	2900	6	25	30	2.2	50	52
PS50-3.7	2900	18	30	50	3.7	50	62
PS50-5.5	2900	15	40	43	5.5	50	68
PS65-3.7	2900	30	22	62	3.7	65	66
PS65-5.5	2900	28	30	58	5.5	65	70
PS65-7.5	2900	25	40	45	7.5	65	120
PS80-5.5	2900	35	22	55	5.5	80	88
PS80-7.5	2900	38	30	53	7.5	80	128
PS80-11	2900	45	40	60	11	80	180
PS80-15	2900	50	45	51	15	80	210
PS100-11	2900	65	30	66	11	100	219
PS100-15	2900	80	30	58	15	100	220
