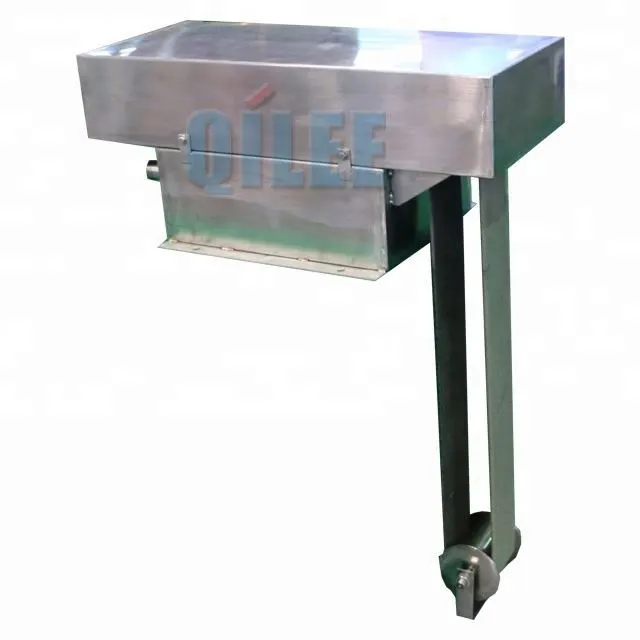

220V Floating Disc Oil Skimmer Scum Recovery, 1yr Warranty 1

220V Floating Disc Oil Skimmer Scum Recovery, 1yr Warranty 2

220V Floating Disc Oil Skimmer Scum Recovery, 1yr Warranty 3

220V Floating Disc Oil Skimmer Scum Recovery, 1yr Warranty 4

220V Floating Disc Oil Skimmer Scum Recovery, 1yr Warranty 5

220V Floating Disc Oil Skimmer Scum Recovery, 1yr Warranty 6

220V Floating Disc Oil Skimmer Scum Recovery, 1yr Warranty

The 220V Floating Disc Oil Skimmer is a compact, easy-to-install device that removes floating oil, grease, and scum from tanks and sumps. Its spinning discs attract thin oil films and lift them onto a collection trough for removal, running continuously on a 220V power supply with low energy use. Built for durability and simple maintenance, it comes with a 1-year warranty for peace of mind.

Usage scenarios:

- Ideal for machine tool coolant reservoirs and metalworking sumps to keep coolants clean and extend fluid life.

- Useful in wastewater and oil-water separator systems to remove surface oil before discharge or further treatment.

- Works well in food processing, marine bilges, and stormwater catch basins to recover free oil and reduce disposal costs.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):30(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Powder(w)

Belt width(mm)

400

Recycling Capacity(L/h)

180-500

External Dimensions(mm)

800*785*524

Processing Type

desalination

Power(W)

1 kW

Material

SUS304

Weight(kg)

110

Product name

Oil Skimmer Floating

Voltage

220 V, 380 V

weight (kg)

productivity

500L/Hour

warranty

1 Year

place of origin

China

Compact Floating, Reliable Recovery

The 220V Oil Skimmer floating-disc system rapidly removes surface scum and recovers high-purity oil from reservoirs, coolant tanks and flotation pools, cutting maintenance costs and extending fluid life. Its disc-style floating design, directional flocking fibre belt and SUS304 stainless construction deliver exceptional recycling capacity, anti-abrasion/anti-corrosion durability and secondary separation for cleaner, longer-lasting recovered oil. Packaged in standard export cartons for compact, easy mounting, it ships in 3–20 days and is backed by a 1-year warranty for reliable, low-maintenance operation.

220V Reliable Oil Recovery

The 220V Floating Disc Oil Skimmer for scum recovery combines a floating disc drive with a directional flocking fibre belt that traps oil in inter‑fibre spaces, delivering up to four times the recycling capacity of conventional steel belts. Constructed from corrosion‑resistant SUS304 with an anti‑abrasion belt, non‑contact scraper and secondary separation, it maximizes recovered oil purity while minimizing wear and maintenance and includes a 1‑year warranty for dependable industrial use. Available in multiple belt widths and compact footprints, the unit runs on standard 220V power and offers adjustable capacity models for continuous, high‑efficiency oil recovery and easy installation.

Efficient 220V Scum Recovery

The 220V Floating Disc Oil Skimmer with a 1-year warranty uses a directional flocking fibre belt and SUS304 construction to deliver up to four times the oil recycling capacity of comparable steel belts. Its anti-abrasion, anti-corrosion belt design and scraper arrangement minimize wear while a secondary separation stage boosts recovered oil purity for long service life. Available in multiple belt widths and capacities for reservoirs, cooling systems, air flotation pools, machine tool cutting fluid tanks and cleaning baths, this compact skimmer provides flexible scum recovery for industrial applications.

◎ product nicety 1

◎ product nicety 2

◎ product nicety 3

Efficient, Reliable Oil Recovery

Built by a specialist team focused on industrial fluid handling, the 220V Floating Disc Oil Skimmer Scum Recovery is crafted from durable, corrosion-resistant materials and backed by a 1-year warranty for dependable performance. This Oil Skimmer continuously removes surface oils and floating scum with adjustable disc speed and low-power 220V operation, providing efficient separation for tanks, sumps, and wastewater applications. Key features and advantages include easy installation, low maintenance, compact footprint, high recovery rates with durable floating discs, and cost-saving operation that reduces downtime and environmental risk.

Material introduction

Built mainly from SUS304 stainless steel, the 220V Floating Disc Oil Skimmer offers robust corrosion resistance and long-term durability for industrial scum recovery. Its directional flocking fibre belt, made from interlaced long and short fibres, creates ample oil storage space and delivers superior anti-abrasion and anti-corrosion performance with about four times the recycling capacity of an equivalent steel belt. The scraper is designed to avoid direct contact with the belt to minimize wear, and the unit’s secondary separation stage improves recovered oil purity while extending component service life.

◎ material introduction 1

◎ material introduction 2

◎ material introduction 3

FAQ

What is the 220V Floating Disc Oil Skimmer and how does it work?

The 220V Floating Disc Oil Skimmer is a surface skimming device that uses a rotating series of hydrophobic discs to attract and lift free-floating oil and scum from the water surface. As the discs rotate through the oil layer, oil adheres to them and is scraped off into a collection trough and discharge hose for recovery or disposal. It is designed for continuous, low-energy removal of free (non-emulsified) oils and floating contaminants.

What kinds of applications and environments is this skimmer best suited for?

It is commonly used in metalworking coolant sumps, oil/water separators, wastewater treatment tanks, fuel/oil spill containment, pump stations, and industrial process ponds where free-floating oil or scum accumulates. It is ideal when the oil layer is continuous and not heavily emulsified — for emulsions or dissolved oils you may need pretreatment like coalescers or demulsifiers.

What are the installation and power requirements?

The unit requires a compatible 220V power supply — check the product label or manual to confirm single- or three-phase configuration before connecting. Installation typically involves mounting the floating frame or edge bracket so the discs sit on the liquid surface, connecting the collection trough and discharge hose to a recovery container, and securing electrical connections to a properly rated circuit. Ensure a level mounting position and correct immersion depth per the manufacturer’s instructions.

How do I maintain the skimmer to keep it operating efficiently?

Regular maintenance includes cleaning or replacing discs if they become saturated or fouled, inspecting and tensioning belts or chains, lubricating bearings where applicable, and clearing the discharge hose and collection trough. Check motor operation and electrical connections periodically. Frequency of service depends on operating hours and contamination level; inspect weekly for heavy-use applications.

What should I do if the skimmer is recovering less oil than expected?

First check that the discs are clean and not oil-saturated, and that the skimmer discs are positioned correctly on the surface with proper rotation speed. Low recovery can be caused by emulsified oil (needs pretreatment), too thin or patchy oil layers, damaged discs or scraper blades, clogged discharge lines, or incorrect mounting height. Address these items and consult the supplier with photos or videos if the issue persists.

What does the 1-year warranty cover and how do I make a claim?

The 1-year warranty typically covers defects in materials and workmanship under normal use for one year from the date of purchase. It generally excludes normal wear parts (e.g., discs, scraper blades, belts), damage from misuse, improper installation, chemical attack outside specified compatibility, and unauthorized repairs. To make a claim, retain your purchase receipt, contact the seller or manufacturer with the unit serial number, description of the issue, and supporting photos; they will advise on repair, replacement, or return authorization per their warranty procedure. Always review the specific warranty terms provided with your unit for full details.
