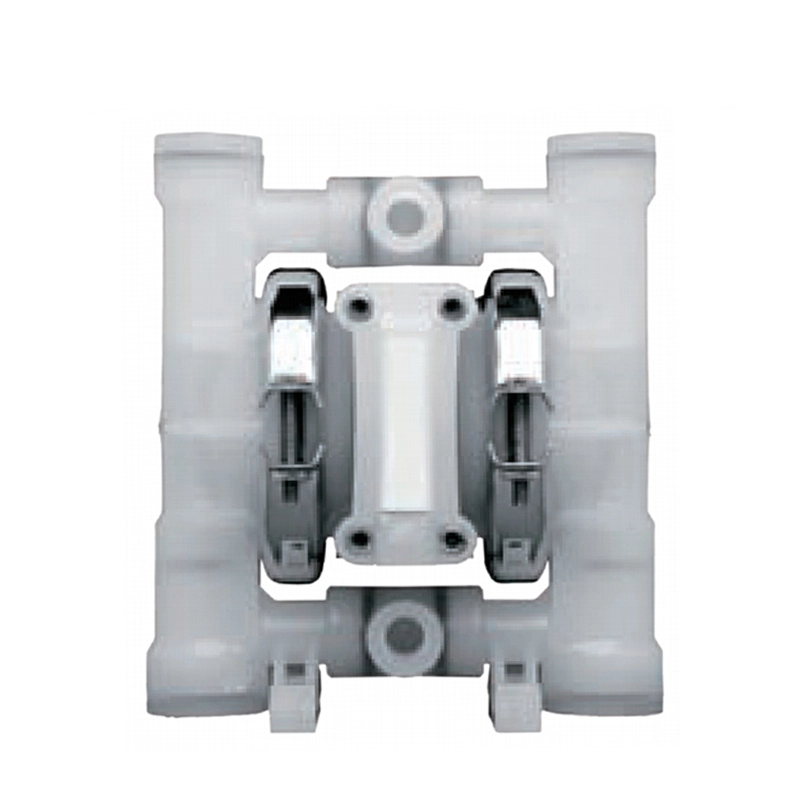

Industrial Movable Small Air Driven Pneumatic Diaphragm Pump
This product is thoroughly checked by the team of quality experts to refuse flaws.
Product Specifications:
Maximum flow:18.9LPM (5 GPM)
Import size:1/4″(6MM)
Air inlet size:1/8″(3MM)
Maximum outlet pressure:8.8BAR (127PSI)
Maximum particle diameter:1/64″(0.4MM)
Diaphragm material: PTFE,Santoprene,EPDM
Weight:PP1.5KG/PVDF1.5KG
Brand Name:QILEE
Model Number:GT025
Place of Origin:Shanghai, China
Power Source:Pneumatic
Pressure:8.8BAR
Structure:Diaphragm Pump
Outlet Size:18.9LPM (5 GPM)
Certification: ce
Product name:Pneumatic Double Diaphragm Pump
Packaging & Delivery
Selling Units:Single item
Single package size: 1X1X1 cm
Single gross weight:1.000 kg
Package Type:Industrial Movable Small Air Driven Pneumatic Diaphragm Pump is standard export packaging
Lead Time :Quantity(Sets) : 1 – 1 >1
Est. Time(days): 12 To be negotiated
Application:
Drinking water treatment, Food and Beverage Industry, Pharmaceutical industry, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment
Product Description
Industrial Movable Small Air Driven Pneumatic Diaphragm Pump
