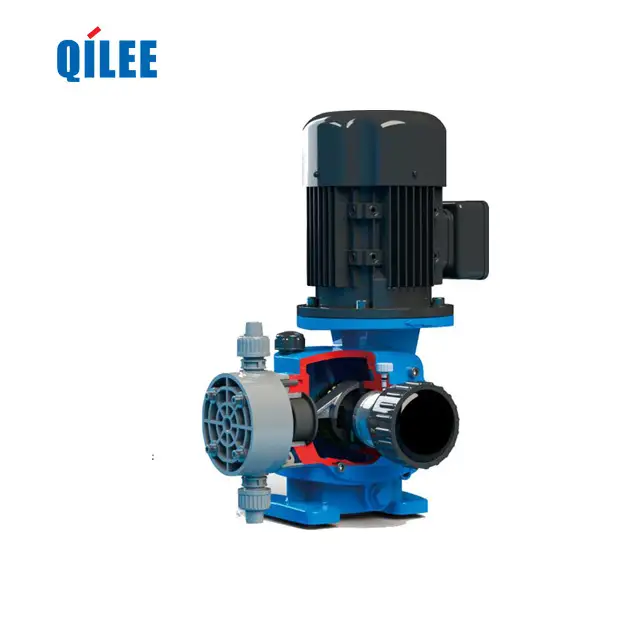

Metering Small Chemical Pool Automatic Dosing Pump

Overview

Structure:Diaphragm Pump

Product name:Automatic Dosing Pump

Speed(spm):37

Flow rate(L/h):2.4

Ma106x.discharge pressure(bar):10

Diaphragm head materials:PVC

Brand Name:QILEE

Model Number:MB0002

Place of Origin:Shanghai, China

Application:wastewater treatment, Metering

Power Source:Electric

Motor Power:0.25kw

Packaging & Delivery

Selling Units:Single item

Single package size: 40X30X50 cm

Single gross weight:19.000 kg

Package Type:Metering Small Chemical Pool Automatic Dosing Pump is packed in standard export packing

Lead Time :

Product Description

Metering Small Chemical Pool Automatic Dosing Pump

Automatic Dosing Pump widely used in water treatment process such as  municipal tap water, swimming pools, urban sewage, industrial effluent and kinds of chemical dosing,etc

Typical Applications

·pH adjustment

·Flocculating

·Polymer

·Hypochlorite disinfectants

·Dyes and ink

·catalyst

Technical Specification

·Flow rate:2~4900L/h

·Max.discharge pressure:10 Bar

·Turndown Ratio:10:1

·Stability accuracy:±2%

·Max.suction lift head:3m

·Max.suction pressure:2 Bar

·Max.liquid temperature:45°C

·Max.viscosity:up to 1200cP

Liquid End Features

·LE material:PP;PVC;PVDF;316SS

·Diaphragm material:PTFE

·Ball check material:Glass;Ceramic;316SS

·Special designec valve seat to ensure no leakage wether the pump running or stopping

·Variety of critical applications of pump head configuration:

 High viscosity,pulp,concentrated sulfuric acid,sodium hypochlorite,etc.

·Self-cleaning check valve structure

Drive Unit Features

·Variable eccentric adjustment stroke length to smooth pulsation impact of flow rate.

·Robust structure design suitable for pulse impact and harsh operating conditions

·Sliding bearing and high intensity wearable worm gear ensure stable long-term operation.

Adjustment Options

Manual Adjustment:wethwer the pump running or stopped

·Minimum adjustment scale is 1%

Electric Stroke Controlller:external control signal adjust stroke length

·Power Supply:220V-50Hz,1 phase

·Input Signal:4-20mA

·Output Signal:4-20mA/1-5V feedback signal.

Frequency Inverter:external control signal,adjust stroke speed

·220V-50Hz,1phase/380V-50Hz,3phase

·Input Signal:4-20mA

Automatic Dosing Pump’s code and performance

Automatic Dosing Pump outline drawing

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to

production season and order quantity.
