Advanced Wastewater Treatment Processes Company

Product Overview

1) Product overview

Product Features

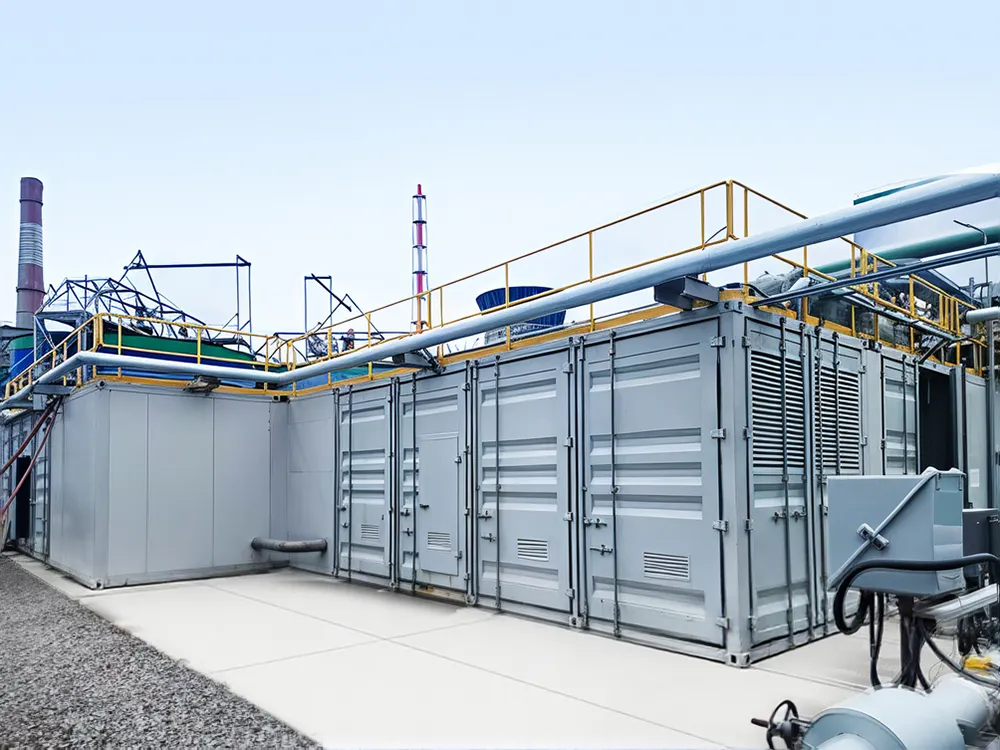

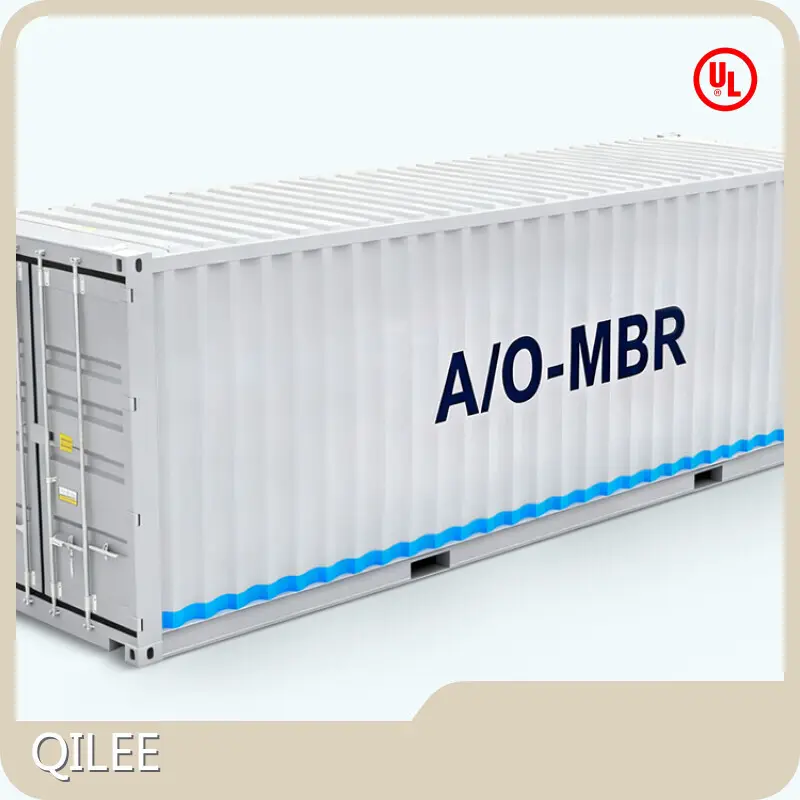

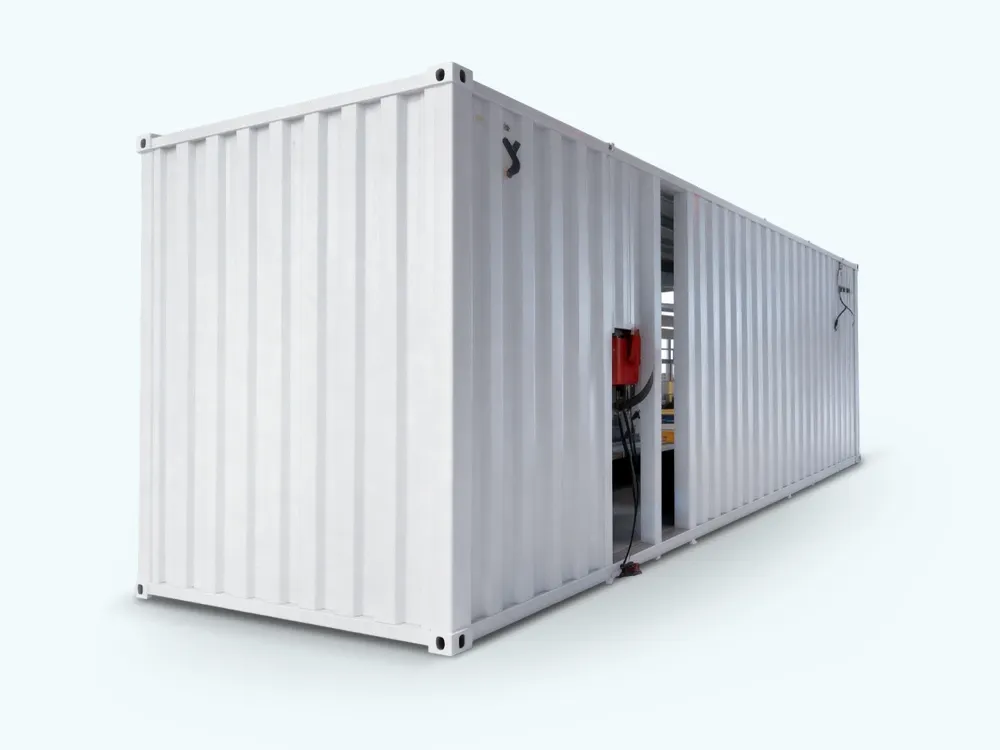

- QILEE Advanced Wastewater Treatment Processes (QL-AOMBR) is a containerized, integrated AO-MBR (anoxic/oxic with membrane bioreactor) system engineered for municipal-strength wastewater and suitable industrial pre-treatment.

Product Value

- Offered in modular, factory-assembled units (QL-AOMBR-5 to QL-AOMBR-200) to serve capacities from 5 to 200 m³/day with peak handling and 20–40 ft container formats for rapid field deployment.

Product Advantages

2) Product features

Application Scenarios

- Submerged PVDF hollow-fiber ultrafiltration membranes delivering very low turbidity and near-zero suspended solids.

- Integrated A/O biological process for simultaneous BOD, NH3-N and total nitrogen removal.

- High-MLSS MBR operation for enhanced process stability and shock-load resistance.

- Fully assembled, piped, wired and factory-tested “plug-and-play” units to shorten on-site construction time.

- PLC-based centralized control with touchscreen HMI and optional IoT remote monitoring; energy-efficient rotary-lobe blowers and branded pumps with standby sizing.

- Durable containerized construction with anti-corrosion coatings.

3) Product value

- Produces high-quality effluent suitable for non-potable reuse and strict discharge limits, enabling water recycling and regulatory compliance.

- Reduces civil works and site area (up to ~60% footprint reduction vs. conventional activated sludge) and accelerates project timelines from months to weeks.

- Robust operation lowers operational risk (resilience to shock loads, seasonal swings) and supports predictable performance and maintenance planning.

- Modular design supports scalable deployment and rapid response for temporary or emergency needs.

4) Product advantages

- Guaranteed effluent performance (examples: COD ≤50 mg/L, BOD5 ≤30 mg/L, SS ≤10 mg/L, NH3-N ≤8 mg/L, TN ≤15 mg/L, TP ≤0.5 mg/L, turbidity ≤0.2 NTU) meeting China Class 1A and strict international standards.

- True plug-and-play turnkey delivery (pre-assembled, pre-tested) reducing installation complexity and labor.

- Advanced membrane barrier for absolute solids removal and consistent disinfection-like clarity.

- Automated control and optional remote intelligence for simplified operation and remote troubleshooting.

- Proven, industry-grade components (PVDF membranes, rotary-lobe blowers, reputable pumps) and flexible model range to match project scale.

5) Application scenarios

- Decentralized municipal sewage treatment for small towns, suburban communities and remote settlements.

- Wastewater treatment and reuse at tourist resorts, hotels, ski resorts and campsites.

- Industrial pre-treatment for food processing, beverage, poultry and similar industries.

- Temporary or emergency treatment for construction camps, military bases and disaster-relief sites.

- Retrofit and upgrade projects to increase capacity or improve effluent quality at existing plants.
