Integrated Modular Systems Chemical Treatment Integrated System Wholesale

Product Overview

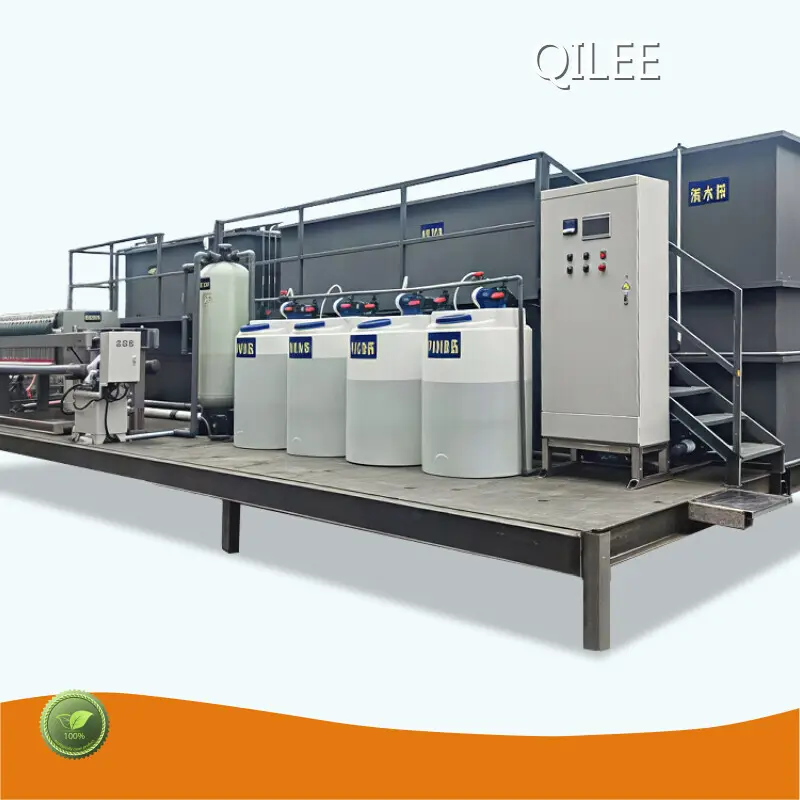

- Containerized, modular dissolved air flotation (DAF) based chemical treatment system for removal of non‑soluble pollutants (suspended solids, colloids, FOG).

- Models cover 5–30 m³/h (QL-DAF-5 to QL-DAF-30) in standard 20ft/40ft container formats; designed for continuous 24‑h average and peak flows.

- Typical guaranteed effluent targets: SS ≤50 mg/L, turbidity ≤10 NTU (polishing filtration can achieve ≤2 NTU), FOG ≤15 mg/L.

- Factory-tested and export‑ready for fast on‑site start-up (connect utilities and operate within ~24 hours).

Product Features

- Physico‑chemical treatment train: inline chemical dosing (coagulants/flocculants), static mixer, paddle‑agitated flocculation, microbubble DAF separation, sludge hopper and optional dewatering.

- Polishing multi‑media filtration to remove residual flocs and meet low turbidity targets.

- Compact containerized construction (20ft/40ft), corrosion‑resistant material options (CS + epoxy/polyurethane, 304/316L stainless, FRP).

- PLC with HMI, automatic dosing and sludge control, remote monitoring via MODBUS/PROFINET; diagnostic alerts included.

- Pre‑commissioned with simulated wastewater and configurable piping, dosing, and electrical options for export markets.

Product Value

- Rapid deployment and minimal civil works reduce project lead time and installation cost.

- Significant footprint savings (up to ~60% less space versus conventional sedimentation tanks) and lower labor/energy demands reduce operating expenses.

- Consistent, adjustable effluent quality to meet international standards (EU, US EPA, GB) improving regulatory compliance and reuse potential.

- Integrated sludge concentration (3–5% dry solids) and optional dewatering reduce downstream sludge handling and disposal costs.

- Modular design and customization options lower logistics cost and simplify scaling or relocation.

Product Advantages

- Fully integrated process package simplifies management and reduces interfaces between equipment and contractors.

- True plug‑and‑play containerization: export‑compatible, stackable 20ft units and standard handling for 40ft units.

- Robust materials and coatings for marine transport and corrosive environments, with selectable higher‑grade metallurgy where needed.

- Intelligent automation enables stable performance, dosing optimization and remote central control for multiple sites.

- Low O&M design features: self‑cleaning sludge discharge, compact layout and factory testing to reduce commissioning and operational risks.

Application Scenarios

- Municipal wastewater pre‑treatment and advanced treatment stages.

- Industrial wastewater treatment: food & beverage, pulp & paper, chemical, mining, textile, electroplating, and similar sectors.

- Raw water purification for surface/ground/lake sources.

- Reclaimed water treatment for industrial reuse, irrigation and landscape applications.

- Emergency and temporary water treatment (disaster relief sites, temporary construction or remote installations).
