Activated carbon powder dosing device

Activated carbon powder dosing device

Product Introduction

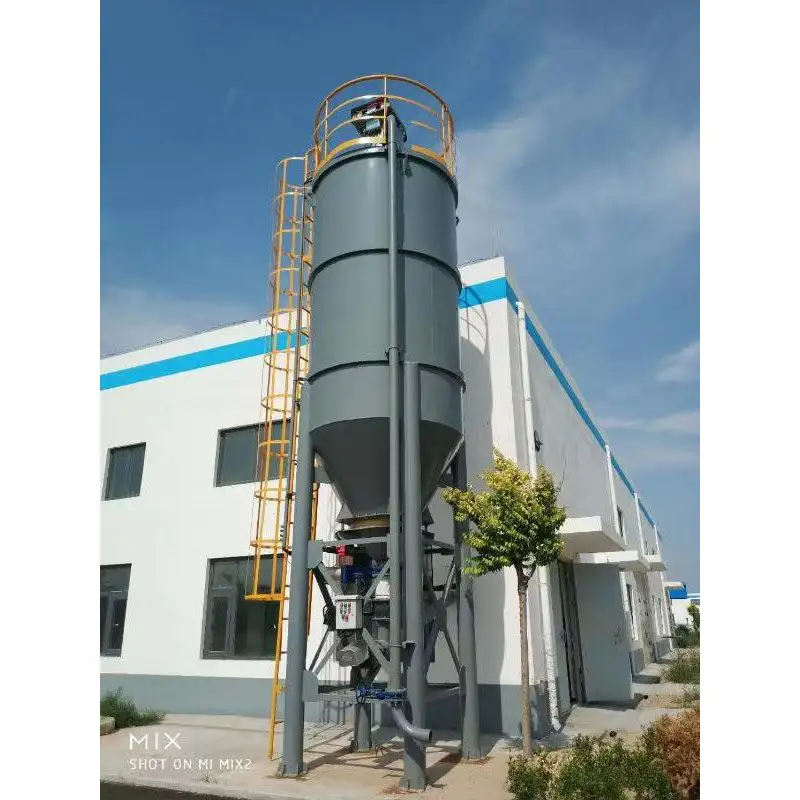

The activated carbon powder dry powder feeding device measures the powder carbon and mixes it with water in a mixing tank to prepare a mixture of activated carbon and water in a considerable proportion. Then, a pump is used to add the powder carbon mixture to the feeding point. The feeding performance is stable, with a wide range of adaptability and low requirements for on-site conditions. Currently, it is used in major water plants, and the market occupies a dominant position.

Detailed Introduction

Characteristics of the activated carbon powder dry powder feeding device:

Adopting high-precision feeding machine to ensure precise feeding

Efficient arch breaking, effectively preventing powder bridge

Equipped with pipeline flushing and dilution devices, effectively preventing blockage;

Unique conveying system design for monitoring closed conveying pipelines;

Fully automatic operation reduces manual operation costs and adopts PLC for remote operation control.

Dissolution process of activated carbon powder dry powder dosing device:

The preparation process of powder solution is gradually completed through the grading of each solution tank, and the solution tanks are separated to ensure the reaction time and constant concentration in each solution tank, avoiding any direct pathway between the prefabricated tank and the drug storage tank.

The automatic control system is connected to the liquid level controller on the storage tank. Once the liquid level reaches the middle level, the inlet solenoid valve is triggered to open, and the drying machine starts to obtain accurate concentration. When the liquid level rises, this cycle process stops, and the mixer continues to work intermittently according to the set time.
