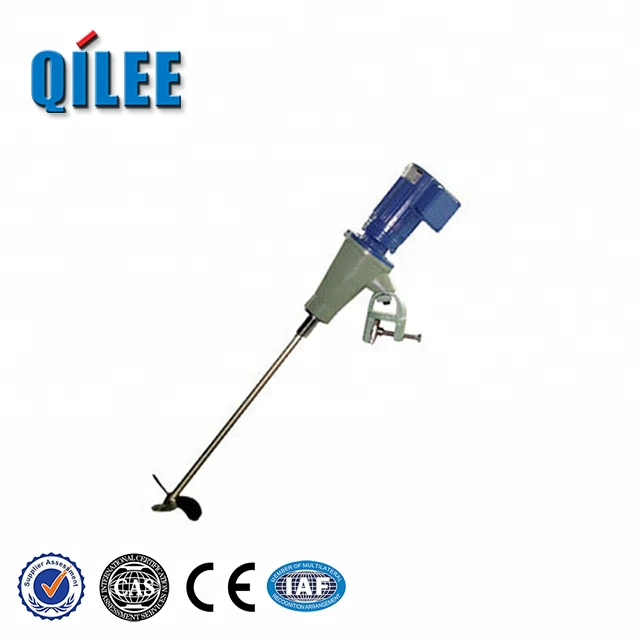

Automatic SUS304 Chemical Liquid Propeller Agitator, Milling 1

Automatic SUS304 Chemical Liquid Propeller Agitator, Milling 2

Automatic SUS304 Chemical Liquid Propeller Agitator, Milling 3

Automatic SUS304 Chemical Liquid Propeller Agitator, Milling 4

Automatic SUS304 Chemical Liquid Propeller Agitator, Milling 5

Automatic SUS304 Chemical Liquid Propeller Agitator, Milling 6

Automatic SUS304 Chemical Liquid Propeller Agitator, Milling

Under bright lab lights, the Automatic SUS304 Chemical Liquid Propeller Agitator glides to life, its polished propeller blades whispering through vats of liquid. Built from SUS304 stainless steel with precision milling action, it disperses, churns, and refines mixtures into smooth, uniform blends. Easy to set up and quietly reliable, it turns demanding work into a calm, efficient rhythm that impresses operators and improves product quality.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):30(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Rarefied Liquid

10000L

Medium Viscosity

3000L

Diameter of Blade

400mm

Diameter of shaf

28mm

Length of shaft

1500mm

Material

SUS304

Capacity

5 L

key selling points

Automatic

Power (kW)

1.5 kW

dimension(l*w*h)

Customized

additional capabilities

Milling

product type

Liquid

material processed

Chemicals

mixer type

Agitator

voltage

220/380V

Power

1.5KW

Product name

Chemical Liquid Propeller Agitator

weight (kg)

warranty

1 Year

place of origin

Shanghai, China

Durable SUS304, Precise Mixing

The SUS304 Portable mixer delivers durable, corrosion‑resistant agitation for chemical and industrial liquids, with optional SUS316 or rubber coating and ex‑proof motor options for harsh or hazardous media. Its compact, mini‑agitator style and cycloid geared speed‑reduction motor (0.1–1.5 kW) with multiple shaft lengths and blade diameters handle medium‑low speed mixing across a wide viscosity range. Supplied in standard export carton packing with 3–20 day lead times, the easy‑to‑install, portable design reduces downtime and simplifies on‑site maintenance and transport.

SUS304 Automatic Propeller Mixer

The Automatic SUS304 Chemical Liquid Propeller Agitator is a compact, corrosion-resistant propeller-type portable mixer made from SUS304 (with optional SUS316 or rubber coating) and driven by a cycloid geared speed-reduction motor in the 0.1–1.5 kW range, delivering medium-low speed agitation with a wide reduction ratio to suit rarefied to medium-viscosity liquids. It provides value through efficient milling, dispersion and homogenization—adjustable blade diameters, shaft lengths and torque settings optimize shearing and dewatering performance while offering electric or pneumatic drives and explosion-proof motor options for safe operation in chemical environments. The modular shaft-and-blade structure supports vertical, side-entry or portable mixer configurations for easy installation, maintenance and rapid redeployment between tanks, making it a versatile mini-agitator for labs and production lines.

Automatic SUS304 Chemical Agitator

The Automatic SUS304 Chemical Liquid Propeller Agitator is a compact, high-performance Portable mixer for chemical plants, providing medium–low speed agitation through a cycloid geared speed reduction motor with power options from 0.1 to 1.5 kW. It is offered in vertical, portable and side-entry configurations with selectable shaft lengths and blade diameters to handle low-density to medium-viscosity liquids and milling applications. Constructed in SUS304 (with optional SUS316 or rubber coating) and compatible with electric or pneumatic drives and explosion-proof motors, the unit delivers corrosion resistance, customizable accessories, and fast delivery.

◎

Automatic Stainless-Steel Precision Mixing

Built by a specialist industrial-mixing brand with decades of process engineering experience, the Automatic SUS304 Chemical Liquid Propeller Agitator is crafted from milled SUS304 stainless steel with tight-tolerance machining to deliver corrosion resistance, sanitary surfaces, and long service life. This Portable mixer performs rapid, uniform dispersion, emulsification, and suspension of chemical liquids through a precision propeller and variable-speed automatic control, while compact bearings and sealed motors ensure safe operation in harsh environments. Highlights and advantages include easy-to-clean construction, adjustable mounting and speed, energy-efficient torque delivery, low noise, simple maintenance, reliable milling capability, and consistent batch-to-batch reproducibility for lab and production use.

Material introduction

SUS304 stainless steel is used for the wetted components of this Automatic Chemical Liquid Propeller Agitator, providing excellent corrosion resistance, easy cleaning and reliable chemical compatibility for industrial mixing tasks. For aggressive or abrasive media, the agitator can be upgraded to SUS316 construction or fitted with a rubber-coated impeller and shaft to improve chemical and wear resistance. The Portable mixer configuration pairs these material choices with a robust cycloid geared drive and sturdy shaft sizing per model to ensure durable, easy-to-move performance across tanks and sites.

◎ SUS304

◎ SUS316

◎ Rubber-coated

FAQ

What is an Automatic SUS304 Chemical Liquid Propeller Agitator and where is it commonly used?

An Automatic SUS304 Chemical Liquid Propeller Agitator is a stainless-steel (SUS304) mixing device with a propeller-type impeller and automatic controls for speed and runtime. It’s designed to mix, blend, and maintain homogeneity of liquids in tanks and reactors. Common applications include chemical processing, wastewater treatment, paints & coatings, food & beverage (non-highly corrosive), cosmetics, laboratory and pilot plants, and light pharmaceutical mixing—especially where moderate corrosion resistance, sanitary cleaning and automated operation are needed.

Which chemicals and liquid types is a SUS304 propeller agitator suitable for, and when should I choose a different material?

SUS304 is compatible with many aqueous solutions, mild acids, alkalis, and organic solvents at moderate concentrations and temperatures. It’s suitable for low- to medium-viscosity liquids and processes that don’t require extreme corrosion resistance. If you’re handling strong chlorides, hydrochloric acid, concentrated sulfuric acid, sea water at elevated temperature, or highly corrosive/brine-based media, consider SUS316/316L, higher alloys, lined tanks, or specialty coatings. Always check chemical compatibility charts and consult suppliers for aggressive chemistries.

Can this propeller agitator perform milling or particle size reduction?

A propeller agitator can disperse solids into liquids and perform coarse milling or homogenization for suspensions and emulsions, especially with high-speed operation and optimized impeller design. However, it is not a substitute for dedicated milling equipment (e.g., bead mills, rotor-stator mixers, colloid mills) when you need fine particle size reduction or nano-scale dispersion. For best results, use the propeller for bulk mixing and pre-dispersion, and switch to specialized mills for ultra-fine milling.

What are the important installation and operating considerations to ensure effective mixing?

Key factors include correct impeller sizing and placement (typically some distance above the tank bottom and centered), appropriate motor power and speed range, use of baffles for large tanks to prevent vortexing, proper sealing (mechanical seal or gland packing) to prevent leaks, and a variable frequency drive (VFD) if you need precise speed control. Match impeller type and speed to liquid viscosity—propellers work best for low-to-medium viscosity. Ensure mounting hardware, shaft length, and alignment meet tank and process requirements.

What routine maintenance and cleaning practices are recommended?

Regularly inspect seals, bearings, shaft alignment, and coupling for wear and leakage. Lubricate bearings per manufacturer guidance. Clean wetted parts after use—SUS304 is generally cleanable with standard CIP (clean-in-place) detergents; for sanitary applications use appropriate food- or pharma-grade cleaning agents. Periodically passivate stainless steel surfaces if required to restore corrosion resistance. Replace worn mechanical seals promptly. Keep a simple maintenance log with intervals based on operating hours and chemical exposure.

What safety and compliance issues should I consider when using this agitator with chemicals?

Evaluate process hazards (flammability, toxicity, pressure) and select explosion-proof motors and controls if flammable solvents are present (look for ATEX/IECEx or regional equivalents). Ensure proper grounding and bonding to prevent static buildup. Use secondary containment and leak detection for hazardous liquids. Provide personal protective equipment and training for operators. Confirm material certificates, sanitary or pharma certifications if needed, and ensure electrical and machine safety compliance (CE, UL, or other applicable standards) for your jurisdiction and industry.
