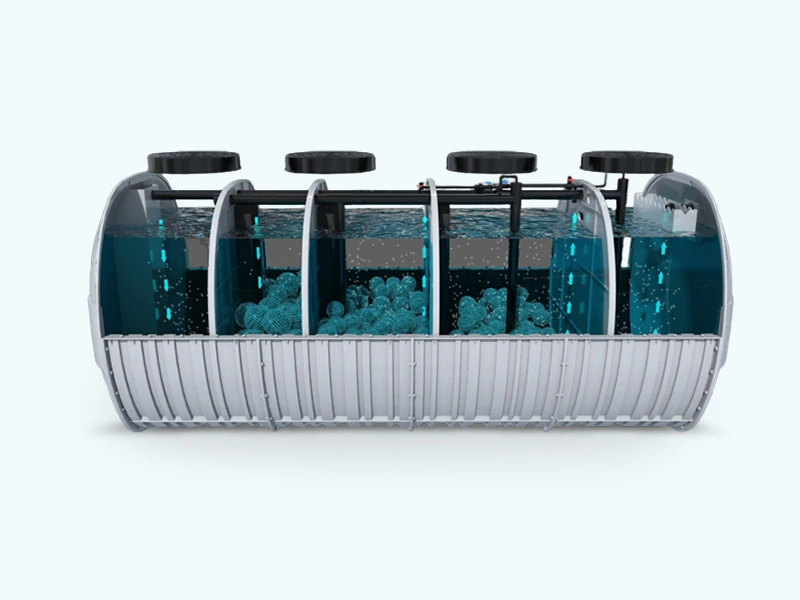

Decentralized Packaged Bio Plant

Decentralized Packaged Bio Plant is a highly efficient sewage purification treatment equipment with a tank body made of SMC (Sheet Molding Compound) and adopts the A²/O (Anaerobic-Anoxic-Oxic) process as its core technology.

Product Process Description

Domestic sewage (including kitchen sewage,toilet ﬂushing sewage and laundry sewage, among which the kitchen sewage needs to pass through grease trap to separate oil and toilet ﬂushing sewage must be deposited in a septic tank ) is collected through the pipe network and then enters biological system. Through the anaerobic, anoxic and aerobic effects of microorganisms, most of the pollutants in the sewage are removed and then discharged. Use a suction truck to pump out part of the sludge and sediment at the bottom of the sedimentation chamber every 3-6 months.

Inquiry

Write a Review

Product Features

Stable & Standardized Mass Production

The product is manufactured in a standardized and large-scale manner, ensuring stable and reliable quality.

High-Grade Raw Material

The tank adopts DSM resin (Netherlands), featuring high structural strength and excellent corrosion resistance, with a service life of up to 30 years in underground environments.

Patented Water Distribution System

Unique patented water distribution and re-distribution system eliminates dead zones and short-circuit flow, maximizing effective volume.

Patented Corrugated Reinforcement Design

The patented surface corrugated reinforcement technology provides high structural strength, suitable for use in frozen soil areas in northern China.

Patented Composite Filling Technology

Creates an ideal habitat for microorganism growth and colonization.

Enhanced Biological Nutrient Removal

Equipped with specialized bio-augmented denitrifying and phosphorus-accumulating bacteria, enabling fast system startup, strong shock load resistance, and low sludge production.

Easy Installation, Operation & Maintenance

The system is easy to install, operate and maintain, and supports remote operation and monitoring.

Specifications

Model	Capacity (m³/d)	Dimensions (mm)	Manholes (mm)	Power (W)	Voltage (V)	Material
QILEE-2	1–2	2150×1150×1650	φ630×2	55	220	SMC
QILEE-5	5	2420×2010×2000	φ630×2	110	220	SMC
QILEE-8	8	3420×2010×2000	φ630×3	110	220	SMC
QILEE-10	10	4420×2010×2000	φ630×4	170	220	SMC
QILEE-15	15	5420×2010×2000	φ630×5	220	220	SMC
QILEE-20	20	7420×2010×2000	φ630×6	350	220	SMC
QILEE-25	25	8420×2010×2000	φ630×6	470	220	SMC
QILEE-30	30	10420×2010×2000	φ630×6	470	220	SMC

*Note: Daily output is calculated based on 20 hours of operation.

Working Principle

Rural domestic sewage (including kitchen wastewater, toilet flushing wastewater and laundry wastewater) is collected through pipe networks and enters the digestion tank.

● Kitchen wastewater shall be treated by an oil interceptor in advance.

● Toilet flushing wastewater must be pre-treated by a septic tank for sedimentation.

● The pollutants in the sewage are mostly removed through anaerobic, anoxic and aerobic reactions of microorganisms before being discharged.

● Sludge and sediment at the bottom of the sedimentation tank should be pumped out by a fecal suction truck every 3–6 months.

Our Cases

图片8 (3)

图片7 (4)

图片6 (2)

图片5 (3)

图片4 (3)

图片3 (3)

Tell Us More About Your Project !

If you have any questions about water treatment systems, please feel free to contact QILEE.

Stable equipment

Mature technology

Automated operation

Simple operation

Do You Have any Questions? Welcome to Leave Us a Message.

No.	Item	Indicator	Standard Value	Unit	Remarks
1	Chemical Oxygen Demand	CODCr	≤ 100	mg/L	—
2	Biochemical Oxygen Demand	BOD₅	≤ 30	mg/L	—
3	Suspended Solids	SS	≤ 30	mg/L	—
4	Ammonia Nitrogen	NH₃-N	≤ 25 (30)	mg/L	30 mg/L when water temperature ≤ 12℃
5	Total Nitrogen (as N)	TN	—	mg/L	Not specified in Class II standard
6	Total Phosphorus (as P)	TP	≤ 3.0	mg/L	For plants constructed after Jan 1, 2006
7	Anionic Surfactant	LAS	≤ 2.0	mg/L	—
8	Animal and Vegetable Oil	—	≤ 5.0	mg/L	—
9	Petroleum Products	—	≤ 5.0	mg/L	—
10	pH Value	pH	6 – 9	—	Dimensionless
11	Chromaticity	—	≤ 40	dilution times	—
12	Fecal Coliform	—	≤ 10,000	CFU/L	—
