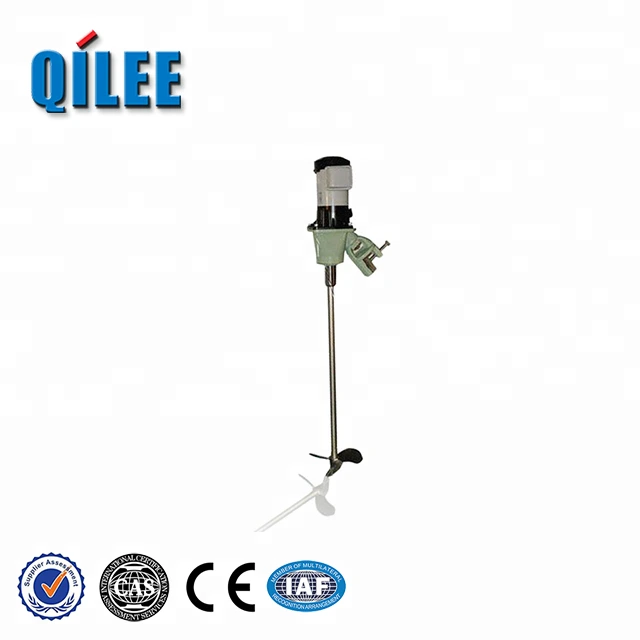

Industrial Liquid Agitator Mixer - Cycloid Geared 0.1-1.5 kW

Picture a hushed production hall at dawn, where the Cycloid Geared Industrial Liquid Agitator (0.1–1.5 kW) slips into motion and turns still liquids into lively, perfectly blended batches. Its whisper‑quiet cycloidal gearbox delivers smooth, powerful torque and precise control from gentle stirring to heavy-duty agitation, giving you repeatable, confident results every cycle. Compact, robust, and energy‑savvy, it becomes the dependable heart of your process — engineered so you can focus on craft while it masters the mix.

brand name:

HANWA

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Place of Origin:

China

Inquiry

Write a Review

Diameter of shaft

19mm

Local Service Location

Malaysia

After Warranty Service

Online support

Type

agitator mixer

Max. Loading Volume (L)

600 L

barrel volume (l)

200 L

Certification

CE ISO

Max. Loading Capacity

600L

Warranty

1YEAR

After-sales Service Provided

Online support

Power(W)

100

Diameter of Blade

200 mm

Length of shaft

800 mm

Material

SS304 / SS316

key selling points

Automatic

Power (kW)

0.1 kW

dimension(l*w*h)

customize

additional capabilities

agitator mixer

product type

Paint

mixer type

Agitator

voltage

220or380

Power

100W

Application

Chemicals Processing, Liquid, liquid mixer

Showroom Location

Malaysia

Applicable Industries

Construction works

Condition

New

weight (kg)

100 KG

place of origin

Shanghai, China

Compact, Corrosion-Resistant, Efficient, Reliable

This Portable mixer, built around a cycloid‑geared 0.1–1.5 kW drive, delivers dependable medium‑low speed agitation and high torque for viscous sludges to achieve fast, uniform mixing and reduced downtime. Compact, corrosion‑resistant stainless steel construction, modular shaft and blade styles, and secure packaging make units easy to transport, install and sanitize on site. Customizable materials (SUS304/SUS316, rubber coating), explosion‑proof motor options and choice of vertical, side‑entry or portable mounting let you match quality, safety and style to your process needs.

Robust Cycloid Agitator Mixer

This industrial liquid agitator mixer uses a cycloid-geared speed reduction motor with power from 0.1 to 1.5 kW to provide stable, medium–low speed agitation and a wide range of reduction ratios for handling low- to high-viscosity liquids, and is offered as a Portable mixer as well as vertical or side-entry configurations. Value-wise it delivers high mixing efficiency and strong low-speed torque for sludge treatment, dewatering and chemical dosing applications, with configurable materials (standard SUS304, optional SUS316 or rubber coating) and motor options (including explosion‑proof or pneumatic drives) to suit media and site requirements. Structurally the compact mini-agitator features cycloid gearing, selectable shaft lengths and blade diameters, robust corrosion‑resistant construction and straightforward mounting and maintenance, enabling tailored model selection by tank dimensions and process conditions.

Precision Cycloid Geared Mixer

The industrial liquid agitator mixer uses a cycloid geared speed reduction motor with output power from 0.1 to 1.5 kW, offering reliable medium–low speed agitation and a wide reduction ratio for handling viscous liquids. Its compact, popular mini-agitator design is available in vertical, side-entry and Portable mixer configurations and can be made in SUS304 (with SUS316 or rubber coating on request) and supplied with electric or pneumatic drives including ex-proof motors. Models are chosen based on the mixing media, tank dimensions and special application requirements to ensure optimal performance.

◎

Efficient, Quiet, Durable, Precise

Built by a heritage engineering brand, the cycloid-geared Industrial Liquid Agitator Mixer (0.1–1.5 kW) was engineered with precision machining and robust materials to deliver dependable, low-speed high-torque mixing for chemical, food, and pharmaceutical applications. Key features and advantages include a compact cycloidal gearbox for smooth, low-vibration operation, modular mounting and shaft options, sealed bearings and IP-rated housings for corrosion resistance, and simple maintenance for reduced downtime. As a Portable mixer solution, it enables quick installation, adaptable propeller choices and variable-speed control to maximize mixing efficiency, energy savings and consistent batch quality.

Material introduction

The industrial liquid agitator mixer uses corrosion-resistant SUS304 stainless steel for shafts and blades as standard, with SUS316 available for more aggressive chemical environments. For abrasive or sticky slurries, wetted parts can be rubber-coated while the cycloid geared gearbox and motor housings are made from robust steel alloys and precision-machined components to reliably handle 0.1–1.5 kW outputs. This Portable mixer balances durable, selectable materials to suit medium- to low-speed agitation across a range of viscosities and media.

◎ SUS304 Standard Construction

◎ SUS316 Corrosion Upgrade

◎ Rubber Coated Protection

FAQ

What kinds of industries and processes is an Industrial Liquid Agitator Mixer with a cycloid gearbox (0.1–1.5 kW) suitable for?

These mixers are widely used in chemical processing, water and wastewater treatment, paints and coatings, adhesives and resins, pharmaceuticals, food and beverage (non-aseptic applications), and general industrial blending. The cycloid/geared drive provides high torque at low speeds, so it is especially good for homogenizing, dissolving powders, suspending solids, gentle mixing, and handling moderate-to-high viscosity liquids typical in these industries.

What liquid properties and tank sizes can this 0.1–1.5 kW range handle?

Power and gearbox selection should match viscosity, density and tank geometry. As a guideline: for low-viscosity liquids (<100 cP) this power range covers small-to-medium tanks (tens to a few thousand liters); for medium viscosities (100–10,000 cP) expect useful performance in small-to-medium process vessels; for high-viscosity fluids (>10,000 cP) the top end (near 1.5 kW) may handle low-volume batches or very slow, high-torque mixing. Always confirm with supplier sizing: impeller diameter, shaft length, and speed need to be matched to tank diameter (typical impeller D ≈ 1/3–1/2 of tank diameter) and required mixing time.

What mounting, shaft and impeller options are typical, and how do I choose?

Common mounts are top-mounted (flange or bracket), side-mounted or portable/stand-mounted. Shaft lengths and bearings are selected to reach desired fluid depth with minimal deflection. Impellers include axial (pitch-blade, propeller) for bulk flow, radial (paddle, turbine) for high-shear mixing, and helical ribbons or anchors for high-viscosity fluids. Choose axial for low-viscosity bulk circulation; radial/turbine for dispersing and shearing tasks; ribbons/anchors for viscous, near-solid paste mixing. Discuss tank geometry and baffles with the vendor to pick the right combination.

Why use a cycloid (cycloidal) gearbox for an agitator, and what speed/torque behavior should I expect?

Cycloid gearboxes deliver high reduction ratios in a compact form, providing high output torque, smooth operation, low backlash, and long life under continuous loads—ideal for slow, torque-demanding mixing. With 0.1–1.5 kW motor input, output shaft speeds typically range from very low RPM up to a few hundred RPM depending on gearbox ratio and motor speed; many applications operate in the 50–600 RPM window. The gearbox enables stable low-speed mixing without overheating or stalling under load.

What materials, seals, and environmental protections are available for chemical compatibility and safety?

Housings and rotating wetted parts are often available in stainless steel (304 or 316), carbon steel with coatings, or special alloys for corrosive media. Shaft seals include mechanical seals for demanding or hygienic applications and lip seals for simpler services; IP/ingress ratings and ATEX/explosion-proof motors can be supplied for hazardous atmospheres. Specify temperature range, chemical compatibility, and any sanitary or regulatory (e.g., FDA) requirements up front so appropriate materials and seals are selected.

What routine maintenance, common issues, and spare parts should I plan for?

Routine checks include lubrication of the cycloid gearbox per manufacturer intervals, inspection/replacement of shaft seals or bearings, alignment checks for mountings, and monitoring for unusual vibration or noise. Common issues are seal leakage (fix by replacing seals), cavitation or vortexing (adjust speed/impeller or add baffles), and overheating of the gearbox or motor (check load and ventilation). Keep critical spares on hand: mechanical seals, gasket kits, bearings, coupling elements and a gearbox service kit to minimize downtime.
