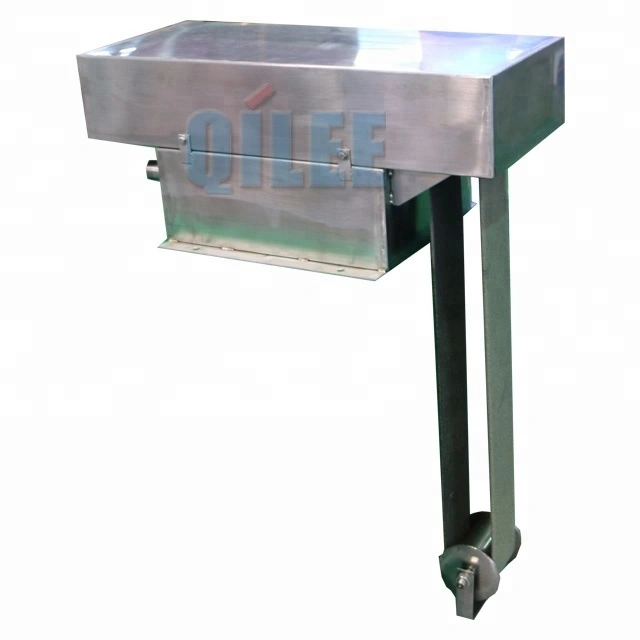

Manufacturer Oil Skimmer Machine, SUS304 Belt, 35-500 L/h

Compact industrial oil skimmer with a corrosion‑resistant SUS304 stainless‑steel belt, built by the manufacturer to recover oil at rates from 35 to 500 L/h. Key selling points: wide capacity range for small to medium systems, durable food‑grade stainless construction, easy installation and low maintenance, adjustable speed for precise oil removal. Benefits: extends coolant and wastewater life, cuts disposal costs and downtime, and provides continuous automated oil recovery for cleaner, safer processes.

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):30(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Powder(w)

Belt width(mm)

100

Recycling Capacity(L/h)

35-110

External Dimensions(mm)

300*480*268

Processing Type

desalination

Materials

SUS304

Power(W)

1 kW

Weight(kg)

Application

Oil recycling in air floatation separation pool

Product name

Skimmer machine

Voltage

220 V, 380 V

weight (kg)

productivity

500L/Hour

warranty

1 Year

Stainless, Compact, Efficient Oil-Skimming

The Oil Skimmer with a SUS304 belt and directional flocking fibre design recovers 35–500 L/h of floating oil, delivering fast, cost-saving separation with anti-corrosion, anti-abrasion durability. A built-in secondary separation stage and non-contact scraper minimize contamination and wear for higher-purity oil recovery and longer service intervals across reservoirs, cooling systems, and cutting-fluid tanks. Compact belt-style shape ships in standard export cartons with a 3–20 day lead time for easy installation, low maintenance, and reliable on-site performance.

Efficient SUS304 belt skimmer

The Oil Skimmer combines SUS304 stainless construction with a directional flocking fibre belt and a rated recovery range of 35–500 L/h, giving high oil retention, corrosion resistance and extended service life. Its scraper-without-direct-contact design and secondary floating-oil separation stage maximize recovered-oil purity while greatly reducing belt wear and maintenance. Offered in multiple belt widths and compact footprints, the unit lowers disposal costs, improves coolant and wastewater quality in reservoirs and cutting-fluid tanks, and provides simple installation and low operating power.

SUS304 Oil Skimmer 35-500L/h

The Oil Skimmer machine with SUS304 construction features a directional flocking fibre belt that provides superior oil storage and delivers a recycling capacity of 35–500 L/h compared with conventional steel belts. Its anti-abrasion, anti-corrosion belt design and a secondary floating oil slick processor ensure long service life and higher purity of recovered oil. Suitable for reservoirs, cooling and flotation pools, machine cleaning tanks, steel emulsion and cutting fluid pools, the compact QL-OS-10 to QL-OS-40 models offer various belt widths and capacities to match industrial needs.

◎ High Recovery Efficiency

◎ Durable Stainless Construction

◎ Enhanced Oil Purity

Efficient Stainless Oil Removal

Our manufacturer-built Oil Skimmer combines SUS304 stainless steel belt construction and precision engineering to deliver reliable removal of free oil at capacities from 35 to 500 L/h, backed by a heritage of durable industrial fluid-handling equipment. Designed for continuous operation, it features a corrosion-resistant SUS304 belt, adjustable flow control, low-maintenance drive and energy-efficient motor to separate and recover oil while protecting cutting and cooling fluids. Key advantages include high oil recovery efficiency, scalable capacity, easy installation and maintenance, and long service life to reduce downtime and operating costs.

Material introduction

The Oil Skimmer is built with durable SUS304 stainless steel for the frame and key components, offering strong corrosion resistance and long service life in harsh industrial liquid environments. Its directional flocking fibre belt uses long and short fibres to form ample oil-storage pockets, delivering significantly higher recovery capacity while keeping abrasion to a minimum. Together with a secondary separation stage, the SUS304 construction and specialized belt material ensure reliable oil recycling performance across the 35–500 L/h model range.

◎ Product overview

◎ SUS304 stainless body

◎ Directional flocking belt

FAQ

What is the Manufacturer Oil Skimmer Machine, SUS304 Belt, 35–500 L/h used for?

This oil skimmer is designed to continuously remove free-floating oil, light hydrocarbons and floating solids from liquid surfaces. Typical applications include machining and metalworking coolant tanks, industrial wastewater basins, oil-water separators, ship bilges, fuel storage sumps, refinery or petrochemical process tanks, and other small- to medium-sized tanks or ponds where surface oil must be recovered or removed.

What kinds of oils and contaminants can it handle, and what are its limitations?

It works best on free-phase oils and light, non-emulsified hydrocarbons (lubricants, cutting oils, diesel, light crude, hydraulic oils) and can collect some floating solids that adhere to the belt. It is not intended to remove dissolved oil or very stable emulsions without pretreatment (coalescers or chemical demulsifiers). Very heavy tars or highly viscous residues may reduce efficiency and require special handling.

What does “SUS304 belt” mean and why is this important?

SUS304 refers to 304-grade stainless steel. A SUS304 belt gives the skimmer good corrosion resistance, mechanical strength, and wear life in many industrial environments — especially where water and moderate chemical exposure occur. This makes the machine durable, easy to clean, and suitable for many food, chemical, and metalworking settings. Note: SUS304 is not immune to attack by strong acids, chlorides at high concentrations, or certain aggressive chemicals; choose compatible materials if your fluids are highly corrosive.

The capacity is listed as 35–500 L/h — how do I choose the right model for my needs?

Select a model based on the average oil accumulation rate and the volume of liquid to be treated. Use the lower capacity models (around 35–100 L/h) for small sumps, machining coolants, or light leaks; mid-range models (100–300 L/h) for moderate industrial tanks and workshops; and higher-capacity units (300–500 L/h) where larger surface spills or continuous oil ingress occurs. Also consider tank size, desired recovery frequency, and whether the skimmer will work alone or upstream/downstream of other treatment equipment.

How should I install and operate the skimmer for best performance?

Position the skimmer so its intake surface contacts the liquid free-surface where oil accumulates (calm surface areas are best). Keep the approach free of strong turbulence, aeration, or heavy solids. Adjust belt speed and scraper angle (if provided) to optimize oil pick-up versus carry-over of water. Provide a stable mounting and level support, connect the oil discharge to a collection drum or recovery tank, and ensure power and any control wiring meet local electrical codes. For continuous high-performance, run the unit steadily rather than short, frequent bursts.

What routine maintenance and troubleshooting should I expect?

Regular maintenance keeps performance high: inspect and clean the SUS304 belt and scraper to remove trapped solids, check drive motor, bearings and tension for wear, and empty the oil collection tank as needed. Replace worn scrapers, seals, or belts per the manufacturer’s recommendation. If recovery drops, check for increased surface turbulence, belt contamination, misalignment, or heavy emulsification — address these (reduce turbulence, clean or replace belt, add pretreatment) to restore efficiency. Follow the manufacturer’s safety and service instructions for repairs and spare parts.
