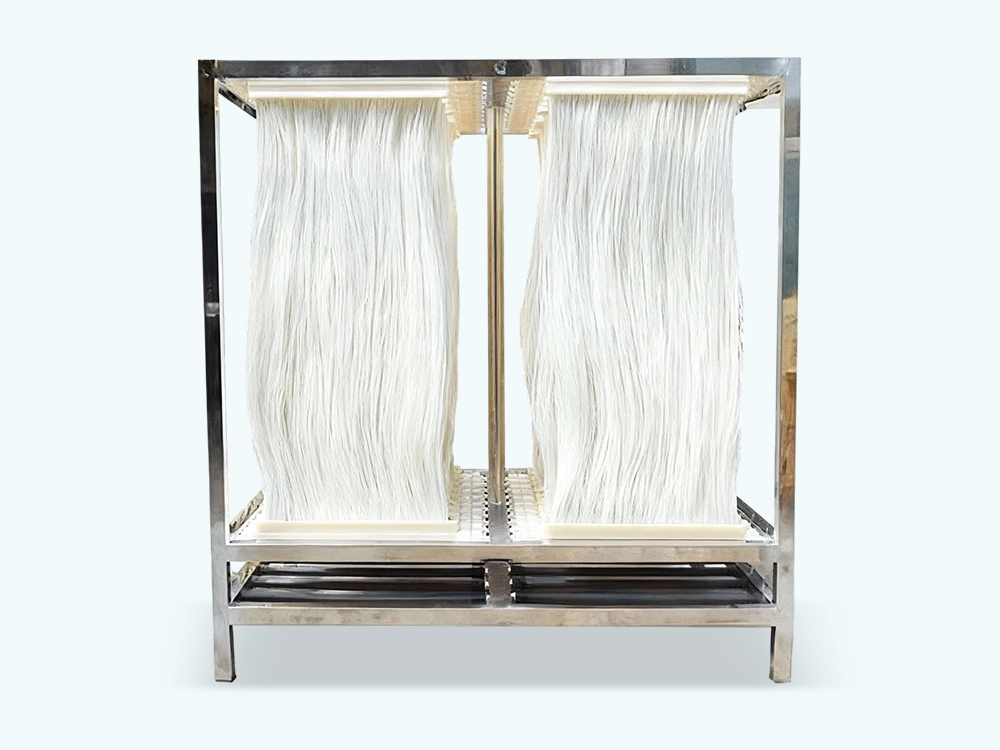

QILEE advanced hollow fiber MBR membranes 1

QILEE advanced hollow fiber MBR membranes 2

QILEE advanced hollow fiber MBR membranes 3

QILEE advanced hollow fiber MBR membranes

QILEE advanced hollow fiber MBR membranes represent the pinnacle of membrane bioreactor technology, engineered for superior performance and reliability in wastewater treatment applications. Our membranes feature a robust PVDF separation layer on a PET support base, combining exceptional filtration capabilities with outstanding mechanical strength. The innovative evenly-spaced fiber arrangement and optimized pore structure ensure consistent, high-quality effluent while significantly reducing fouling potential. With enhanced chemical resistance and durable construction, QILEE membranes deliver long-term stable operation across diverse wastewater conditions, from municipal sewage to complex industrial streams.

Inquiry

Write a Review

MBR Separate Curtain Membrane Product Characteristics

Large Flux

Design flux is 10 - 30LMH

Good Universality

Installation same as the public version of membrane shell on the market.

Strong Anti-Pollution Ability

Antimicrobial PVDF hydrophilic alloy membrane pore is uniform and fine, which makes anti-pollution ability is stronger.

Good Seal

Four - layer sealing technology membrane adopts four package to eliminate water leakage of membrane sealing shell.

Strong Anti-Pollution Ability

Socket structure design, offline cleaning more convenient

High Integral Strength

The integral strength of membrane shell is higher than the general membrane shell on the market, pressure - bearing performance is better.

Key Technology Features

Optimized Pore Structure & High Flux

0.05μm uniform pore distribution with high porosity delivers 25% higher flux than conventional membranes while maintaining excellent anti-fouling properties.

Enhanced Mechanical Strength

Tensile strength >150N and peel strength >3N withstand intensive backwashing operations, ensuring extended service life.

Advanced Anti-fouling Design

Automated hot-melt adhesive spacing creates evenly distributed fiber arrangement, effectively preventing sludge trapping and reducing cleaning frequency.

Energy-efficient Operation

QILEE pulse aeration technology reduces aeration consumption by 40% compared to continuous aeration, with air-to-water ratio below 5:1.

Flexible Operation Modes

Capable of operating with or without backwashing, enhancing water production efficiency and reducing operational costs.

Product Specification Model

QILEE MBR Membrane Skid Specifications

Parameter	QL-MBR-400	QL-MBR-1440	QL-MBR-875	QL-MBR-2520	QL-MBR-1800
Total Membrane Area	400 m²	1440 m²	875 m²	2520 m²	1800 m²
Number of Elements	20	72	25	72	60
Arrangement Style	Single Row	Double Row	Single Row	Double Row	Single Row
Skid Dimensions (L×W×H)	1961×729×2147 mm	3241×1280×2253 mm	2301×961×2845 mm	3145×1725×2890 mm	3360×1610×2700 mm
Aeration Method	Pulse Aeration	Pulse Aeration	Pulse Aeration	Pulse Aeration	Pulse Aeration

Note: Average flow rate is based on 24 hours of operation. All systems are designed to handle peak flows.

Membrane Element Parameters	QL-MEM-20	QL-MEM-35	QL-MEM-30
Effective Membrane Area	20 m²	35 m²	30 m²
Membrane Material	Support: PET / Separation: PVDF	Support: PET / Separation: PVDF	Support: PET / Separation: PVDF
Membrane Type	External Pressure Hollow Fiber	External Pressure Hollow Fiber	External Pressure Hollow Fiber
Nominal Pore Size	0.05 μm	0.05 μm	0.05 μm
Fiber Outer Diameter	2.6/2.0 mm	2.6/2.0 mm	2.6/2.0 mm
Element Dimensions	572×50×1560 mm	824×46×2200 mm	1250×30×2000 mm
Interface Size	Φ27	DN32	Φ24

Operational Parameters	Values
Recommended TMP	0-35 kPa
Maximum Backwash Pressure	70 kPa
Operational Flux	15-30 L/m²·h @25°C
Backwash Flux	20-60 L/m²·h
Operating Temperature	5-40°C
Operating pH Range	2-10
Aeration Intensity	Pulse: 50-75 Nm³/h
	Perforated: 80-120 Nm³/h
Chemical Cleaning pH Range	1-12
