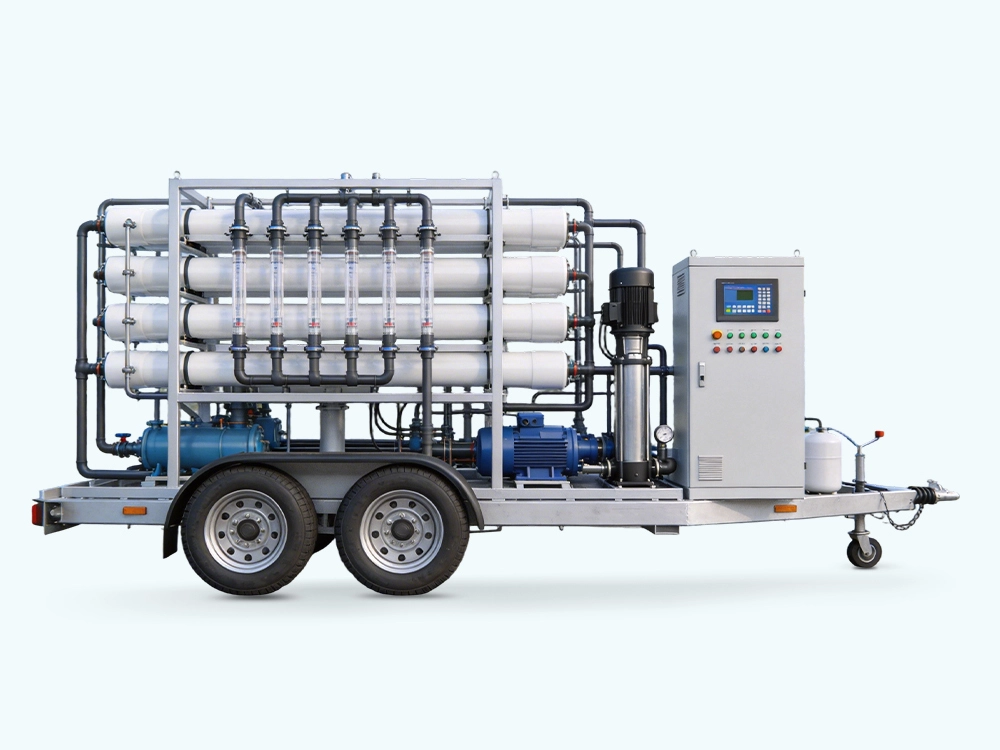

Trailer Mounted Seawater Reverse Osmosis
● Equipment and Material Supply as per specified in the Equipment List
● All Instrumentation and wiring materials within package
● Local Control Panels.
● Operating and Maintenance Manuals for our supplied package system
● Process design and system engineering
● Manufacturing, procurement and system performance
● Package Installation and commissioning
● Off-site training
Scope of Supply/Works by Others (Not Limited to Mentioned Items)
● Authority Submission and Professional Engineering Documents submission
● Access out of construction battery
● Site interconnection for multiple equipment.
● Incoming power supply from grid switch room / transformer
● Civil, Building and Plinth for Package system
● Building M&E
● Excavation outside our treatment plant battery limit
● Pipe, fittings, valves outside our treatment plant battery limit
● Additional cost will be incurred for other specific safety requirements by customer
● All QA/QC special test certificate for all equipment
● Horticulture, road, paving, carpark, street lights and any other landscaping additional requirement
● City water supply c/w piping to each location points
● Clean Dry Air (CDA) c/w piping and air regulator and air regulator to each location points.
NOTE: Not limited to above mentioned items
Design Basis
Construction Capacity
The construction capacity of Trailer Mounted Water Maker System designed as values shown in Table 2 below.
Process Description
Automatic Sand Filter
Media filters clarify water by removing sediment, turbidity, iron, unpleasant tastes, odors, suspended particles, and unwanted color; all of which are commonly found in surface water. They can be used in a variety of services including industrial, municipal, and institutional applications.
Automatic backwashing media filter system is designed to provide the highest quality in water filtration equipment while covering a wide variety of commercial and industrial applications including turbidity reduction, iron & manganese removal, and chlorine removal. A broad range of filter media and component options are offered to fit your exact specifications.
Ultra Filtration (Uf) System
Ultrafiltration (UF) membranes are an excellent filtration technology for the treatment of surface and ground water to potable or process water standards and for effective effluent polishing. The hollow fibre membranes on the inside provide superior separation performance and effectively reject bacteria and viruses. Each module with a membrane surface area of 64m3 or 55m3 is installed vertically and connected directly to feed and filtrate headers.
Avangard Membrane ultrafiltration membranes an inside-out flow configuration with two modes of operation: dead end flow or recirculation flow. Recirculation flow is applied to increase the turbulence on the membrane surface. Both modes of operation are discontinuous with alternating filtration (production) and backwash (cleaning) steps. In the filtration step feed water is forced through the fibres, and in the backwash step some of the filtrate is forced back through the membranes to remove any solids. The inside-out configuration offers a high performance (flux/TMP) at a low energy and chemical consumption compare to outside-in where foot print is smaller.
Compact Ultra Filtration System
● Yields substantial savings in space, cost and energy
● Suited to build scalable systems
● Easy to integrate with other processes
● Provides a reliable single barrier for bacteria and viruses
● Low energy consumption
● Fully automated, no operator involvement
● Uses low-cost chemicals
● Minimal maintenance expenses
● Integrity testing
● No operator exposure to fumes or aerosols
● Small footprint
● High removal of organics
● Phosphate removal
Reverse Osmosis (Ro) System
The Avangard Membrane Reverse Osmosis membrane product is primarily used in the oil and gas industry. These membranes are high-performance REVERSE OSMOSIS membranes which are able to selectively remove Ions, thereby reducing the risks of scaling and reservoir souring when seawater is injected into the oil containing reservoirs for secondary oil production in offshore production. The membrane rejects 99.5% of ions while passing other ions, particularly monovalent ions such as chloride and sodium, allowing for low-pressure operations.
They use patented Low Differentially Pressure technology designed to minimize colloidal fouling. AVANGARD MEMBRANE use a 34-mil thickness feed spacer that prevents colloidal fouling and increases the effectiveness of membrane cleaning – resulting in lower differential pressure.
As a result, the AVANGARD MEMBRANE does not need to be cleaned frequently – thus reducing treatment cost – while offering extreme durability and consistent performance.
REVERSE OSMOSIS is globally acclaimed for high ions rejection characteristics in oil and gas seawater injection applications. It significantly reduces operating costs and provides optimum hardness rejection in softening
applications.
Operation Limit
● Maxium Applied Pressure (Recommended): 600 psig (4.14 MPa)
● Maximum Chlorine Concentration: < 0.1 PPM
● Maximum Operating Temperature: 113°F (45°C)
● pH Range, Operation (Cleaning): 3.0 - 9.0 (1.0 – 11.5)
● Maximum Feedwater Turbidity: 1.0 NTU
● Maximum Feedwater SDI (15 mins): 5.0
● Maximum Feed Flow: 75 GPM (17.0 m³/h)
● Maximum Pressure Drop for Each Element: 15 psi
● Typical Seawater Performance†:
● Nominal Permeate Flow: 6,500 gpd (24.6 m³/d)
● Nominal Chloride Rejection: 25%
● Nominal Sulfate Rejection: 97%
2023 Containerised Ro Membrane System 50 m³/Hr
Stable equipment
Mature technology
Automated operation
