QILIEE is a leading manufacturer of MBR Membrane, we are available in providing Flat Membranes‌ and Hollow Fiber Membranes‌ with Frame Skid.MBR membranes come in two main types:
● Flat Membranes‌: Plate-shaped, suitable for small-scale applications.
● Hollow Fiber Membranes‌: Hollow, fibrous structures with large specific surface areas per unit volume, widely used in household water purifiers.

Inquiry

Write a Review

Product Models and Core Parameters

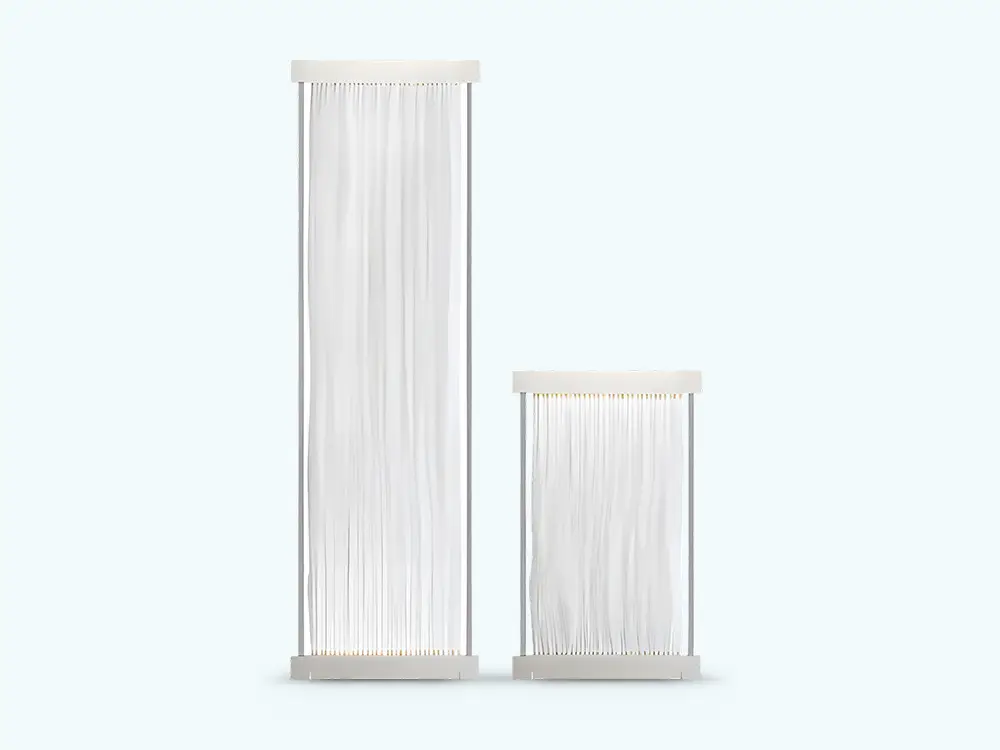

The diagram showcases three MBR membrane curtain products, with model and key information as follows:

MBR Separate Curtain Membrane Product Characteristics:

Large Flux

Design flux is 10 - 30LMH

Good Universality

The size of installation same as the public version of membrane shell on the market.

Strong Anti-Pollution Ability

Antimicrobial PVDF hydrophilic alloy, membrane pore is uniform distribution, the ability of anti-pollution is stronger

Good Seal

Four-layer sealing technology, membrane adopts four package to eliminate water leakage on membrane shell

High Integral Strength

Internal dehulling structure, the overall strength of membrane is higher than the general products on the market

Strong Anti-Pollution Ability

Socket structure design, on-line cleaning, more convenient maintenance

Technical Advantages of MBR Membrane Curtains

MBR (Membrane Bioreactor) technology combines biological treatment with membrane separation. Core advantages include:

Stable Effluent Quality‌

High-precision membrane fibers (narrow pore size distribution) effectively remove proteins, calcium/phosphorus, whey, etc., and have excellent retention of bacteria and microorganisms, with effluent turbidity <0.5NTU.

Strong Anti-Pollution Capability‌

Special anti-pollution designs (e.g., hydrophilic modification, loose structure) reduce sludge accumulation, extend membrane life, and enable fast flux recovery after cleaning, lowering maintenance costs.

Flux and Energy Optimization‌

High-porosity membrane structure with uniform distribution minimizes water resistance, reducing operating energy by 10 - 20% compared to traditional processes.

Broad Process Adaptability‌

Modular design is compatible with industrial, municipal, and drinking water scenarios, with flexible installation and high automation.

Product Specification Model

lQL-MBR-10‌	Membrane curtain length 1000mm, single curtain coverage area 10m², suitable for small-scale water treatment scenarios.
lQL-MBR-15‌	Membrane curtain length 1500mm, single curtain coverage area 15m², balancing treatment efficiency and cost.
lQL-MBR-20‌	Membrane curtain length 2000mm, single curtain coverage area 20m², suitable for large-scale wastewater treatment needs.

Parameter	QL-MBR-400	QL-MBR-1440	QL-MBR-875	QL-MBR-2520	QL-MBR-1800
Total Membrane Area	400 m²	1440 m²	875 m²	2520 m²	1800 m²
Number of Elements	20	72	25	72	60
Arrangement Style	Single Row	Double Row	Single Row	Double Row	Single Row
Skid Dimensions (L×W×H)	1961×729×2147 mm	3241×1280×2253 mm	2301×961×2845 mm	3145×1725×2890 mm	3360×1610×2700 mm
Aeration Method	Pulse Aeration	Pulse Aeration	Pulse Aeration	Pulse Aeration	Pulse Aeration

Note: Average flow rate is based on 24 hours of operation. All systems are designed to handle peak flows.

Membrane Element Parameters	QL-MEM-20	QL-MEM-35	QL-MEM-30
Effective Membrane Area	20 m²	35 m²	30 m²
Membrane Material	Support: PET / Separation: PVDF	Support: PET / Separation: PVDF	Support: PET / Separation: PVDF
Membrane Type	External Pressure Hollow Fiber	External Pressure Hollow Fiber	External Pressure Hollow Fiber
Nominal Pore Size	0.05 μm	0.05 μm	0.05 μm
Fiber Outer Diameter	2.6/2.0 mm	2.6/2.0 mm	2.6/2.0 mm
Element Dimensions	572×50×1560 mm	824×46×2200 mm	1250×30×2000 mm
Interface Size	Φ27	DN32	Φ24

Operational Parameters	Values
Recommended TMP	0-35 kPa
Maximum Backwash Pressure	70 kPa
Operational Flux	15-30 L/m²·h @25°C
Backwash Flux	20-60 L/m²·h
Operating Temperature	5-40°C
Operating pH Range	2-10
Aeration Intensity	Pulse: 50-75 Nm³/h
Aeration Intensity	Perforated: 80-120 Nm³/h
Chemical Cleaning pH Range	1-12

Product Water Quality	Standards
Turbidity	≤0.8 NTU
Suspended Solids	≤5.0 mg/L

Industry Applications and Market Background

MBR membrane curtains are widely used in wastewater treatment, especially suitable for:

● Industrial Wastewater‌: High-concentration wastewater treatment in industries like dairy, chemicals, and dyeing, solving traditional process issues such as "sludge bulking" and "unstable effluent".

● Municipal Wastewater‌: Replacing traditional secondary sedimentation tanks to simplify processes, improve automation, and reduce maintenance difficulty.

● Drinking Water/Concentration Separation‌: Achieving water purification or material concentration through membrane separation to meet specific industry needs.

图片20 (2)

图片21 (2)

Product Selection Suggestions

Selection should be based on scenario needs:

● For small wastewater treatment stations (e.g., communities, small factories), prioritize ‌QL-MBR-10‌ to balance cost and efficiency.

● For medium projects (e.g., town-level treatment plants, medium industrial lines), recommend ‌QL-MBR-15‌ to balance treatment capacity and economy.

● For large projects (e.g., city treatment plants, large industrial parks), choose ‌QL-MBR-20‌ to meet high-load treatment requirements.

For more detailed technical parameters (e.g., material, operating pressure, cleaning cycle), refer to professional supplier materials or industry standards for further confirmation.
