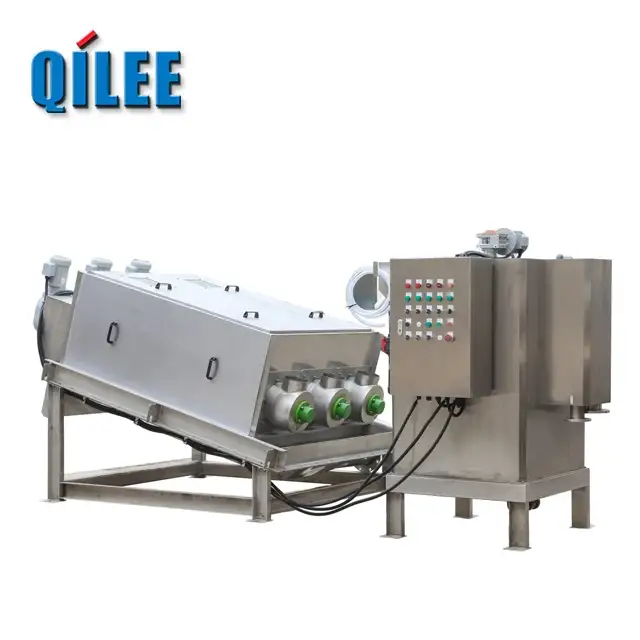

Small Solid-Liquid Screw Press for Ceramic 1yr Core Mtr&PLC 1

Small Solid-Liquid Screw Press for Ceramic 1yr Core Mtr&PLC 2

Small Solid-Liquid Screw Press for Ceramic 1yr Core Mtr&PLC 3

Small Solid-Liquid Screw Press for Ceramic 1yr Core Mtr&PLC 4

Small Solid-Liquid Screw Press for Ceramic 1yr Core Mtr&PLC 5

Small Solid-Liquid Screw Press for Ceramic 1yr Core Mtr&PLC 6

Small Solid-Liquid Screw Press for Ceramic 1yr Core Mtr&PLC

Imagine a sunlit studio where clay and water part like tide and shore — that’s the Small Solid-Liquid Screw Press for Ceramic, quietly turning messy slurry into smooth, ready-to-use body. Compact but mighty, it squeezes out excess liquid with gentle, even pressure, saving time and keeping your forms pure, while a robust core motor and smart PLC control come with a 1-year warranty for peace of mind. Small footprint, big lift — it’s the tidy helper that lets your craft shine, day after day.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):15(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Outlet Position(mm)

495

Water Demand for Cleaning(L/h)

Operating Weight(kg)

1230

Net Weight(kg)

820

Sludge Flow(m3/h)

1~15

Powder Consumption(kw)

0.8

Treating Capacity(kg/h)

30~50

Dimensions(mm)

3255*985*1600

Processing Type

desalination

Power(W)

1 kW

Product name

Sludge Screw Press

Voltage

220 V, 380 V

weight (kg)

100

productivity

500L/Hour

warranty

1 Year

place of origin

Shanghai, China

core components

Motor, PLC

machinery test report

Provided

video outgoing-inspection

Provided

Compact Durable Automated Dewatering

The QLD Dewatering Screw Press delivers continuous, reliable solid‑liquid separation for ceramic and industrial sludge, cutting labor, odor, cleaning-water use, and energy consumption while running quietly. Its compact, enclosed SUS304 construction with an integrated electrical cabinet, disposal tank and slow‑running, anti‑jam screw design simplifies installation, maintenance and footprint requirements. Packaged in standard export cartons with 3–20 day lead times and backed by model selection support plus compatible dosing and pump equipment, it enables fast deployment and dependable operation.

Compact Ceramic Dewatering Press

The QLD Dewatering Screw Press is a compact SUS304 solid-liquid separator tailored for ceramic and industrial sludge dewatering, combining an integrated electrical cabinet, disposal tank and enclosed dehydrator to minimize footprint, control odor, and enable continuous 24-hour automatic operation. Its screw-driven filter assembly with stacked fixed and moving rings (lumen filled with polymer grains) self-cleans gaps to prevent jamming and reliably handles high- and low-consistency sludges while reducing cleaning water, power and noise; core motor and PLC are covered for one year. With adjustable back-pressure plates, slow-running shaft and modular, corrosion-resistant construction, the QLD Dewatering Screw Press simplifies maintenance, lets operators tune capacity and cake dryness, and fits municipal and diverse industrial wastewater applications.

Compact Ceramic Screw Press

The QLD Dewatering Screw Press is a compact solid-liquid separator for the ceramic industry that efficiently dewaters sludge of both high and low consistency while its enclosed design reduces odors and saves installation space. Built from SUS304 stainless steel with an integrated electrical cabinet, tank and dehydrator, it runs automatically 24/7 with a slow-turning screw and moving-ring filter that resists jamming, lowers noise and power use, and uses polymer-assisted filtration to form and extrude dewatered cakes. Available in multiple QLD models to suit a wide range of flow rates, the unit offers adjustable screw speed and back-pressure settings for controlled capacity and cake dryness and is easy to maintain for municipal and industrial wastewater applications.

◎ Compact Enclosed Unit

◎ Durable Stainless Construction

◎ Adjustable Dewatering Performance

Compact Efficient Reliable Automation

Engineered by a specialist ceramic equipment maker with extensive process experience, the QLD Dewatering Screw Press offers compact, reliable solid-liquid separation tailored for small-scale ceramic production and is backed by a one-year core motor and PLC warranty. It combines a robust screw shaft, precision screen basket, and PLC-controlled variable speed to deliver consistent solids capture, low moisture cake, and gentle handling that preserves fragile ceramic bodies. Features and advantages include a compact footprint, energy-efficient motor, easy maintenance, modular assembly for quick installation, and a user-friendly HMI, resulting in higher throughput, reduced water usage, and lower operating costs.

Material introduction

The QLD Dewatering Screw Press is fabricated primarily from corrosion-resistant SUS304 stainless steel, with the screw shaft, fixed and moving rings and enclosure engineered for long-term durability in abrasive ceramic sludge conditions. Polymer grains filling the lumen between the screw and rings enhance filtration performance and protect metal surfaces, while the integrated stainless tanks and electrical cabinet minimize footprint and odor. These material choices ensure low maintenance, extended service life, and reliable continuous operation for solid-liquid separation in ceramic applications.

◎ SUS304 Mainframe

◎ Filtration Ring Assembly

◎ Low-Wear Drive & Components

FAQ

What is a Small Solid-Liquid Screw Press for Ceramic used for?

It is a continuous dewatering machine designed to separate water from ceramic slurries, clay suspensions and other wet ceramic wastes. Typical uses include recovering clay from slip, concentrating slip for reuse, producing filter cake for drying or calcination, treating wash-water from glazing/throwing processes, and reducing waste volume for disposal or recycling.

Which ceramic materials and feed conditions can this press handle?

The press is suitable for common ceramic slurries and soils such as ball clay, kaolin, porcelain and glaze slip, and similar suspensions. It works best when feed solids are already partially concentrated (e.g., 5–40% solids) and does not tolerate very large unbroken lumps or metal contamination. For best results, screen or shred oversized particles before feeding and consult the supplier about abrasive additives or unusually fine/very high-organic slurries.

How do I operate the press and what does the PLC/core motor 1yr feature mean?

Operation is typically continuous: pump or hopper-feed the slurry into the press, the screw applies pressure to discharge a dewatered cake while liquid exits through the screen. The supplied PLC controls start/stop, screw speed, pressure/backflow alarms and basic recipes for different materials; the “1yr Core Mtr&PLC” indicates the core drive motor and PLC are covered by a one-year warranty. Follow the manufacturer’s start-up checklist, set process recipes in the PLC, monitor alarms, and stop/feed as instructed in the user manual.

What performance can I expect (moisture content, throughput, and consistency)?

Performance depends on material properties, feed solids, particle size and machine sizing. Typical small screw presses can reduce moisture to a filter cake in the range of roughly 30–50% wet basis for many ceramic slurries; actual moisture and throughput vary. Throughput and cake dryness improve with higher incoming solids and proper screening. For reliable capacity estimates, provide sample slurry data to the vendor so they can recommend the correct model and expected output.

What routine maintenance and cleaning are required?

Regular tasks include flushing and rinsing the screen and screw after batches, inspecting/clearing the screen for clogging, checking seals and bearing lubrication, and monitoring wear on the screw and screen. Replace wear parts (screw, liner, screen) when worn to preserve efficiency. Establish a daily visual check, weekly cleaning schedule for production environments, and periodic preventive maintenance per the supplier manual. Follow lockout/tagout and safety procedures before maintenance.

Is installation support, spare parts and troubleshooting available?

Yes — most suppliers provide installation guidance, start-up commissioning, operator training and spare parts lists. The one-year coverage on the core motor and PLC typically covers defects; wear parts like screens and screws are usually consumables. For troubleshooting, common checks include feed consistency, screen blockages, motor load/alarm codes on the PLC, and feed-pump operation. Keep contact details for technical support and maintain records of serial numbers, operating parameters and maintenance to speed up service.
