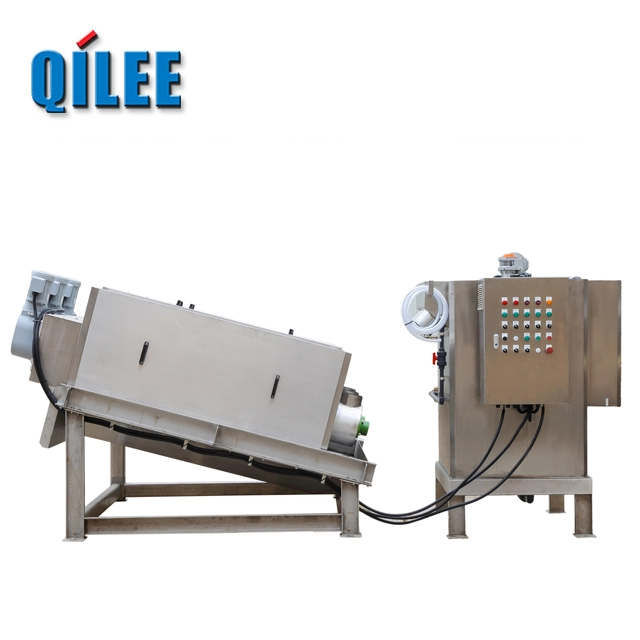

Compact Screw Press Separator for Poultry Manure - Easy Use 1

Compact Screw Press Separator for Poultry Manure - Easy Use 2

Compact Screw Press Separator for Poultry Manure - Easy Use 3

Compact Screw Press Separator for Poultry Manure - Easy Use 4

Compact Screw Press Separator for Poultry Manure - Easy Use 5

Compact Screw Press Separator for Poultry Manure - Easy Use 6

Compact Screw Press Separator for Poultry Manure - Easy Use

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):15(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Outlet Position(mm)

215

Water Demand for Cleaning(L/h)

Operating Weight(kg)

280

Net Weight(kg)

190

Sludge Flow(m3/h)

0.1~1.5

Powder Consumption(kw)

0.2

Treating Capacity(kg/h)

3~5

Dimensions(mm)

1816*756*1040

Processing Type

desalination

Power(W)

1 kW

Product name

Screw Press Separator

Voltage

220 V, 380 V

weight (kg)

100

productivity

500L/Hour

warranty

1 Year

Compact Poultry Manure Waste Dewatering Machine Screw Press Separator for Water Treatment Easy to Use

Product Introduction

Waste Dewatering Machine Compact Poultry Manure Screw Press Separator

Compact Poultry Manure Waste Dewatering Machine Screw Press Separator for Water Treatment Easy to Use

Screw Press Separator Features:

1.Suitable for sludge dewatering of high/low consistency.
2.There is no need to worry about jam up. Reduce the cleaning water consumption.
3.The electrical cabinet, disposal tank and dehydrator are integrated, which reduces the covering area and brings convenience to installment.
4.The dehydrator is enclosed working, which reduces the bad smell and improves the working environment.
5.Automatically working for 24 hours, reducing the labor strength of workers.
6.The slow running speed of screw shaft reduces the power consumption and noise.
7. It is made with stainless, extending the service life.
8. It is convenient for daily maintenance.

Screw Press Separator Structure:

The main part of the dehydrator is a filter device that a screw runs through the stacked fixed rings and moving ring.

The small gaps between fixed rings and moving ring can filter the sludge, and the lumenbetween screw and rings is filled with polymer grains. The moving ring transfers the sludge to the end of the machine with pressure and extrudes sludge cakes.

The running of the screw drives the moving ring to clean the gaps and avoid jam.

Compact Poultry Manure Waste Dewatering Machine Screw Press Separator for Water Treatment Easy to Use

Screw Press Separator Application:

•City mixed raw sewage,Food & beverage industry,Chemical industry,Leather & tannery sewage,Paper & pulp sewage,Elecro-plating sewage,Pringting & dyeing sewage,Power plant,Petrochemical industry

Screw Press Separator Selection of models:

Model	Ds Standard Treating Capacity		Sludge Flow
Model	Low-high consistency		2000mg/L	5000 mg/L	10000 mg/L	20000 mg/L	25000 mg/L	50000mg/L
QLD101	~3kg/h	~5 kg/h	~1.5m3/h	~0.6 m3/h	~0.5 m3/h	~0.25 m3/h	~0.2 m3/h	~0.1 m3/h
QLD131	~5 kg/h	~10 kg/h	~2.5 m3/h	~2 m3/h	~1 m3/h	~0.5 m3/h	~0.4 m3/h	~0.2 m3/h
QLD132	~10 kg/h	~20 kg/h	~5 m3/h	~4 m3/h	~2 m3/h	~1 m3/h	~0.8 m3/h	~0.4 m3/h
QLD201	~16kg/h	~18 kg/h	~4.5 m3/h	~1.8 m3/h	~1.5 m3/h	~0.75 m3/h	~0.6 m3/h	~0.3 m3/h
QLD202	~18 kg/h	~30 kg/h	~9 m3/h	~3.6 m3/h	~3 m3/h	~1.5 m3/h	~1.2 m3/h	~0.6 m3/h
QLD301	~30 kg/h	~50 kg/h	~15 m3/h	~6 m3/h	~5 m3/h	~2.5 m3/h	~2 m3/h	~1 m3/h
QLD302	~60 kg/h	~100 kg/h	~30 m3/h	~12 m3/h	~10 m3/h	~5 m3/h	~4 m3/h	~2 m3/h
QLD303	~90 kg/h	~150 kg/h	~45 m3/h	~18 m3/h	~15 m3/h	~7.5 m3/h	~6 m3/h	~3 m3/h
QLD304	~100 kg/h	~200 kg/h	~50 m3/h	~10 m3/h	~20 m3/h	~10 m3/h	~8 m3/h	~4 m3/h
QLD352	~120 kg/h	~200 kg/h	~60 m3/h	~24 m3/h	~20 m3/h	~10 m3/h	~8 m3/h	~4 m3/h
QLD353	~180 kg/h	~300 kg/h	~90 m3/h	~36 m3/h	~30 m3/h	~15 m3/h	~12 m3/h	~6 m3/h

Screw Press Separator specifications & Operation Conditions:

Compact Poultry Manure Waste Dewatering Machine Screw Press Separator for Water Treatment Easy to Use

Screw Press Separator Flow Diagram:

1.The sludge in the sludge sump is carried to the measuring tank by sludge pump.And the sludge inlet volume can be controlled by adjusting the liquid level tube.
2.Sludge and flocculant will form alum floc in the disposal tank after agitator mixing, the ideal diameter of alum floc is about 5mm.
3.After gravity thickening in the thickening part, large amount of filtrate will discharge from the gaps between rings.
4.The thickened sludge is carried forward by the screw and dehydrated sufficiently under the pressure of the back pressure plate.
5.The dehydrated mud cake is discharged from the gaps between back pressure plates and screw body. The treating capacity of sludge and water content's rate of mud cake can be controlled by adjusting the running speed of screw and gaps between back pressure plates.

Compact Poultry Manure Waste Dewatering Machine Screw Press Separator for Water Treatment Easy to Use

Screw Press Separator Cooperation case:

Compact Poultry Manure Waste Dewatering Machine Screw Press Separator for Water Treatment Easy to Use

FAQ

What’s the application scope of Screw Press Separator ?

It is widely applied in wastewater treatment in industrial, chemical, municipal and so on.

What’s the material of Screw Press Separator ?

It is SUS304.

What’s the equipment used together with Screw Press Separator ?

Sludge pump, polymer dosing pump, washing pump, air compressor.

How to choose the model?

Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
