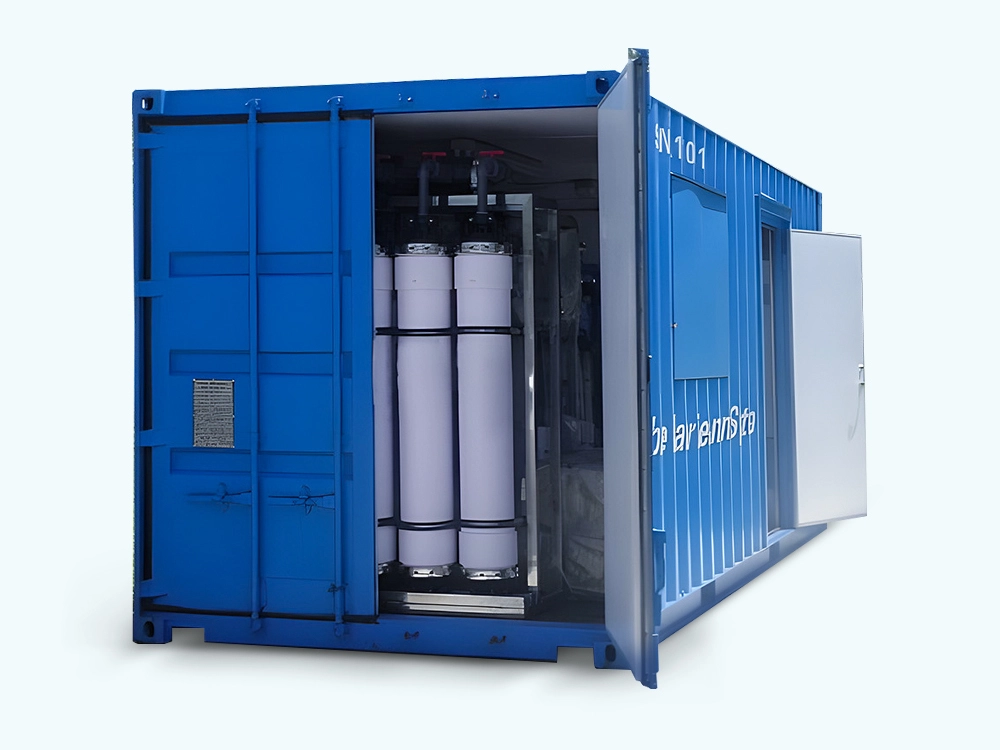

Containerized Boiler Feed Water System
QILEE containerized UF+RO systems are fully integrated, pre-engineered water treatment plants designed for rapid deployment and reliable operation. The systems combine ultrafiltration pretreatment with reverse osmosis desalination to produce high-purity water for various industrial and municipal applications.
Design Capacity Range: 5 m³/h to 50 m³/h
Container Configuration:
5-25 m³/h: 20-foot container
30-50 m³/h: 40-foot container
Application-Specific Process Design & Water Quality
The system targets non-soluble pollutants through physico-chemical processes. Performance is evaluated based on the removal of suspended and colloidal substances.
| Parameter | Raw Water (Surface/Ground) | UF Permeate | RO Permeate | Boiler Standards |
| Hardness | 100-300 mg/L | - | ≤1 mg/L | ≤0.1 mg/L |
| Silica | 10-30 mg/L | - | ≤0.5 mg/L | ≤0.02 mg/L |
| TDS | 300-1000 mg/L | - | ≤10 mg/L | ≤5 mg/L |
| TOC | 2-8 mg/L | 1-4 mg/L | ≤0.5 mg/L | ≤0.2 mg/L |
Process Flow
Raw Water → Multimedia Filter → UF System → RO System → Mixed Bed DI → Boiler Feed
System Features & Automation
● Remote monitoring via IoT
● Predictive maintenance alerts
● Automated chemical cleaning cycles
● RO System: Polyamide composite membranes, energy recovery option
● Pretreatment: Multimedia filtration, activated carbon (optional)
● Post-treatment: UV sterilization, chemical dosing (pH adjustment)
● 12-month performance warranty
● CE certification for electrical components
● ISO 9001 quality management
Applications & Compliance
Primary Applications
Notes
● All performance data based on standard operating conditions with proper pre-treatment
● Removal rates may vary based on specific water characteristics and operating parameters
● Systems designed to meet WHO guidelines and GB 5749-2022 standards
● Chemical cleaning frequency optimized based on feed water quality
● This comprehensive performance table demonstrates QILEE Ultrafiltration Systems' capability to transform challenging water sources into high-quality treated water suitable for various applications, from municipal drinking water to industrial process water.
Stable equipment
Mature technology
Automated operation
