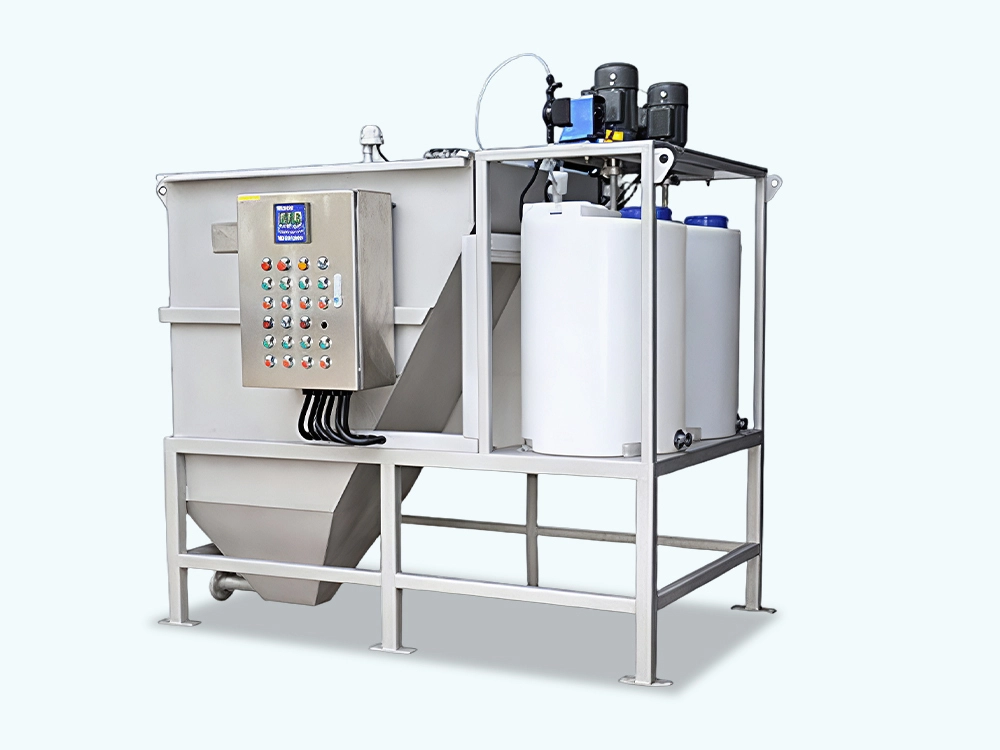

Product Overview: QILEE's integrated containerized sedimentation tank represents a breakthrough in modular water treatment technology. This all-in-one solution combines chemical dosing, flocculation, and high-efficiency lamella (inclined plate) sedimentation within a standard shipping container. Engineered for rapid deployment and superior performance, the system delivers exceptional solid-liquid separation for both industrial and municipal applications where chemical-physical treatment is required.

Inquiry

Write a Review

Technical Specifications

Parameter	Specification
Container Options	20ft, 40ft, 40ft High-Cube
Sedimentation Type	Lamella Inclined Plate Settler
Plate Material	Food-grade PP (Polypropylene)
Plate Inclination	60° for optimal settling
Tank Material	Carbon Steel with epoxy coating / SS304
Flow Distribution	Perforated baffle system
Sludge Collection	Scraper mechanism or sludge hopper

Integrated Sedimentation Tank Working Process

Flocculation Chamber: Slow mixing with paddle agitators for floc formation

Chemical Dosing Pumps: Precision metering for optimal chemical utilization

Lamella Sedimentation Technology

High Surface Area: 5-10x more efficient than conventional settlers

Compact Design: 80% space savings compared to traditional clarifiers

Theoretical Settling Area: Customizable based on inflow SS concentration

Short Retention Time	15-20 minutes for complete settling
High Rise Rate	1.5-3.0 m/h depending on application
Automated Sludge Discharge	Timed or concentration-based control

Chemical Process Flow Chart

Model Number	Treatment Capacity (m³/h)	Container Size	Dimensions (L×W×H)	TSS Removal Efficiency
QL-LST-10	10-15	20ft	5.9m × 2.3m × 2.4m	90-95%
QL-LST-25	25-35	20ft	5.9m × 2.3m × 2.4m	90-95%
QL-LST-50	50-70	40ft	12.0m × 2.3m × 2.4m	90-95%
QL-LST-100	100-130	40ft High-Cube	12.0m × 2.3m × 2.7m	90-95%
QL-LST-200	200-250	Dual 40ft Containers	Custom Configuration	90-95%
QL-LST-500	500-600	Multiple Container Array	Custom Configuration	90-95%

Application Fields

Industrial Wastewater Treatment

● Mining & Mineral Processing: Tailings clarification, process water recovery
● Metal Finishing: Heavy metal precipitation, hydroxide sludge separation
● Chemical Manufacturing: Product recovery, effluent pretreatment
● Textile & Dyeing: Color removal, chemical sludge separation

Municipal & Special Applications

● Water Treatment Plants: Raw water pretreatment, turbidity removal
● Construction Sites: Silt and sediment control from dewatering operations
● Emergency Response: Rapid deployment for spill containment or disaster relief

Chemical-Physical Treatment Applications

● Chemical Precipitation: Heavy metals, phosphorus, fluoride removal
● Coagulation-Sedimentation: Color, organic matter, colloidal particle removal
● Flocculation-Clarification: Oil-water separation, emulsion breaking

System Features & Advantages

Integrated containerized sedimentation tank Advanced Chemical-Physical Water Treatment in a Modular Format 13

Plug-and-Play Design

Fully pre-assembled and factory-tested
Minimal civil works required
Quick connection to inlet/outlet pipelines

Smart Control System

PLC + HMI for automated operation
Chemical dosing optimization algorithms
Remote monitoring and control capability

Integrated containerized sedimentation tank Advanced Chemical-Physical Water Treatment in a Modular Format 15

Low Maintenance Operation

Easy-access lamella plates for cleaning
Corrosion-resistant materials
Automated sludge discharge system

Integrated containerized sedimentation tank Advanced Chemical-Physical Water Treatment in a Modular Format 16

Environmental Benefits

Reduced chemical consumption through precise dosing
Water reuse through efficient solids removal
Compact footprint minimizes site disturbance

Optional Accessories

Chemical Dosing Skid: Integrated coagulant and flocculant preparation
Sludge Thickener: Additional container for sludge volume reduction
Filter Press: For final sludge dewatering
Online Monitoring: Turbidity, pH, sludge level sensors
QILEE Containerized Sedimentation Systems - Clarifying Water, Simplifying Operations
For detailed technical proposals and custom design specifications, contact our engineering team today.
