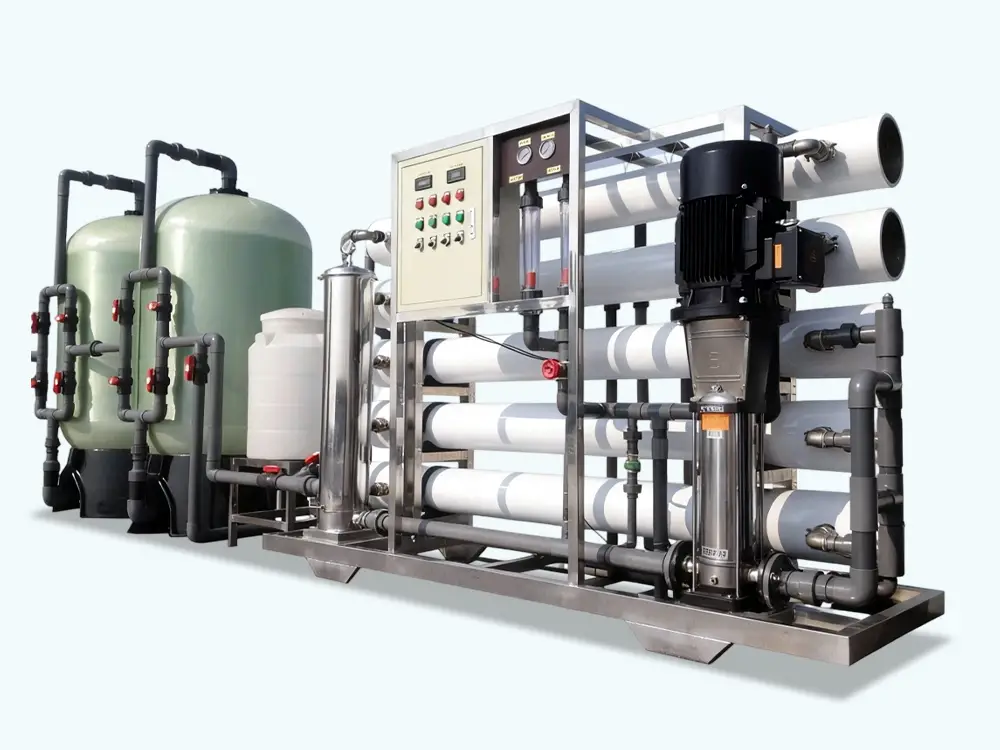

QILEE Containerized RO Skid Systems

High-Efficiency Desalination for Converting Brackish Water to High-Quality Pure Water, which is designed specifically for brackish water with high hardness, high sulfates, or specific contaminants (e.g., Fluoride, Arsenic).
The QILEE QL-BWRO Series is an integrated solution designed for treating brackish water with high salinity and producing high-purity water. It incorporates multi-stage pre-treatment, precision filtration, the core Reverse Osmosis (RO) desalination process, and post-conditioning within a standard container. It effectively removes dissolved salts, ions, heavy metals, and organic pollutants, producing water quality that far exceeds drinking water standards. It is the ideal choice for brackish water regions, industrial parks, and high-purity water applications.

Inquiry

Write a Review

Core Advantages

High-Efficiency Desalination

Employs high-rejection RO membranes, achieving a removal rate of over 98% for Total Dissolved Solids (TDS), easily converting brackish water into pure water.

Efficient & Stable

Optimized system design and high-quality membrane elements ensure stable operation at high recovery rates, reducing operational costs.

Intelligent Integration

Fully automatic control with an integrated membrane cleaning system to effectively prevent scaling and fouling, extending membrane life.

Plug-and-Play

Containerized design, fully assembled and tested before shipment, significantly reducing on-site installation and commissioning time.

Specifications

Model	Active Area ft 2(㎡)	ConcentrateChannel Spacermil	Permeate FlowRate GPD(m 3 /d)	Stabilized SaltRejection (%)	Minimum SaltRejection (%)
BWRO-8040	400(37.2)	28	10500(39.7)	99.6	99.5
BWRO-4040	85(7.9)	28	2500(9.5)	99.6	99.5

QILEE Containerized Single-Pass RO Skid Systems

The QILEE reverse osmosis skid-mounted system uses high-performance BW8040 membrane elements:

QILEE Containerized RO Skid Systems are engineered for efficient brackish water desalination using high-performance BW8040 membrane elements. Each skid is pre-assembled, tested, and optimized for rapid deployment in standard shipping containers, delivering reliable operation with minimal footprint.

Membrane Element Specifications

Model

BW8040 Brackish Water RO Element

Nominal Flux

39.7 m³/d (1.65 m³/h) per element

Salt Rejection

≥99.6%

Active Membrane Area

400 ft² (37.2 m²) per element

Design Parameters & Operating Conditions

● System Recovery: 65-75% (configurable based on feed water quality)

● Operating Pressure: 10-15 bar (145-220 psi) for brackish water

● Flux Rate: 20-30 LMH (L/m²·h)

● Membrane Arrangement: Single-pass, single-stage configuration

● Element Configuration: 6 elements per 8" pressure vessel

1QL-BWRO

Integrated RO configuration and dimension

Model Number	Capacity (m³/h)	Pressure Vessels	Membranes Total	Skid Dimensions (L×W×H)	Container Size
QL-RO-10	10	3V × 6E	18 elements	2.2×1.8×2.1 m	20ft
QL-RO-20	20	6V × 6E	36 elements	3.5×2.0×2.1 m	20ft
QL-RO-30	30	9V × 6E	54 elements	4.8×2.2×2.1 m	20ft

More Details

Container Layout & Space Utilization

20ft Container Configuration

Available Space: 5.8m × 2.3m × 2.3m (internal)
Typical Layout: RO skid + pre-treatment filters + chemical dosing system
Clearance: 0.5m maintenance access around skid

Container Layout & Space Utilization

40ft Container Configuration

Available Space: 11.8m × 2.3m × 2.3m (internal)
Typical Layout: RO skid + multi-media filters + activated carbon + CIP system
Additional Space: For auxiliary equipment and storage

Performance output

Water Quality: Product water TDS < 500 mg/L from 2,000 mg/L feed
Membrane Life: 3-5 years with proper pretreatment and maintenance
System Availability: >98% with appropriate maintenance schedule

For Custom Sizing and Technical Support

Our engineering team can design optimized RO skid configurations based on your specific water analysis and capacity requirements.

Designed Raw Water & Treated Water Quality

This series is designed for treating brackish water with TDS < 10,000 mg/L and can also be used as a polishing stage after conventional purification systems.

Water Quality Indicator	Designed Raw Water Value (Brackish)	Guaranteed Treated Water Value
Total Dissolved Solids (TDS) (mg/L)	＜ 5,000	≤ 500

Treated Water Quality

The effluent stably meets and exceeds the Chinese "Standards for Drinking Water Quality" (GB 5749-2022), making it particularly suitable for applications with strict TDS and specific ion requirements.

Product Applications

● Municipal drinking water treatment

● Industrial process water production

● Hotel and resort water supply

● Agricultural and irrigation water

● Mergency water supply systems

图片21 (2)

图片20 (2)

Tell Us More About Your Project !

If you have any questions about water treatment systems, please feel free to contact QILEE.

Stable equipment

Mature technology

Automated operation

Simple operation

Do You Have any Questions? Welcome to Leave Us a Message.

Maximum Operating Pressure	600 psi(4.14MPa)
Maximum Feed Flow Rate	17.0m3/h
Operating Temperature Range	45 ℃
Maximum Feed SDI 15	5
Free Chlorine Tolerance	0.1mg/L
pH Range, Continuous Operation	3-10
pH Range, Short-Term Cleaning	1-13
Maximum Element Pressure Drop	15psi (0.1MPa)

Model Number	Capacity (m³/h)	Pressure Vessels	Membranes Total	Skid Dimensions (L×W×H)	Container Size
QL-RO-50	50	5V × 6E × 2R	60 elements	5.8×2.3×2.2 m	40ft
QL-RO-75	75	8V × 6E × 2R	96 elements	7.2×2.3×2.2 m	40ft
QL-RO-100	100	10V × 6E × 2R	120 elements	8.5×2.3×2.2 m	40ft
QL-RO-150	150	15V × 6E × 2R	180 elements	10.2×2.3×2.3 m	40ft
