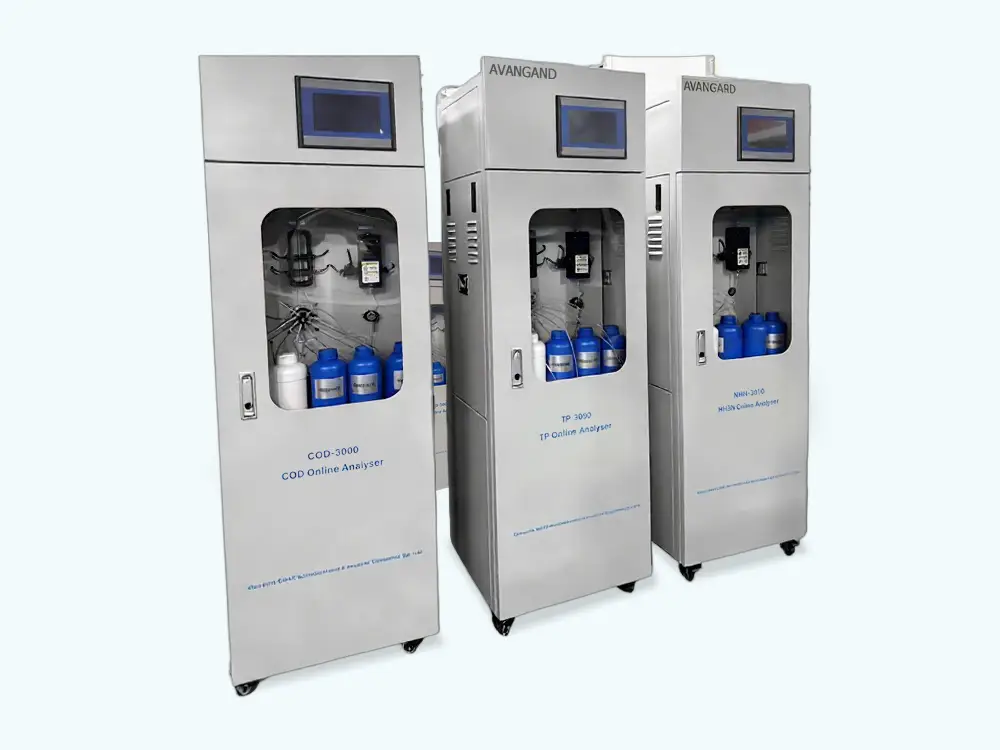

Total Phosphorus Online Automatic Analyzer

The Total Phosphorus Online Automatic Analyzer is a high-precision water quality monitoring instrument developed for real-time and continuous detection of total phosphorus content in water. Compliant with national standards, it integrates advanced sampling, metering, digestion and detection technologies, featuring stable performance, high accuracy and easy maintenance. It is widely used in total phosphorus online monitoring of industrial wastewater and municipal sewage discharge.

Inquiry

Write a Review

Performance Features

Selector Valve Assembly

Precisely controls the reagent sampling sequence, ensuring orderly and efficient execution of the analysis process.

Sampling Assembly

Adopts peristaltic pump for negative pressure suction. There is always an air buffer zone between the reagent and the pump tube, which effectively avoids corrosion of the pump tube and extends the service life of the component.

Reagent Tube

Uses imported new PTFE transparent hoses with an inner diameter of more than 1.5 mm, which significantly reduces the probability of blockage by particulate matter in the water sample and simplifies maintenance work.

Metering Assembly

Realizes precise reagent metering through a visual photoelectric system, which overcomes the quantitative error caused by the wear of the peristaltic pump tube. At the same time, it achieves accurate quantification of trace reagents, with each dose only 1.5 ml, greatly reducing reagent consumption and operational costs.

Sealed Digestion Assembly

Equipped with a high-temperature and high-pressure digestion system, which accelerates the reaction process and ensures complete oxidation of phosphorus in the sample. It also overcomes the corrosion of the equipment caused by the volatilization of corrosive gases in the open system, enhancing the reliability of the instrument.

Typical Applications

Online monitoring of total phosphorus in industrial wastewater and municipal sewage discharge.

Technical Specifications

Item	Specification
Method Basis	National Standard GB11893-89 "Water Quality - Determination of Total Phosphorus - Ammonium Molybdate Spectrophotometric Method"
Measurement Range	0-2mg/L; 0-10mg/L; 0-50mg/L (Extendable)
Indication Error	≤0.5mg/L: ±0.05mg/L; ＞0.5mg/L: ±10%
Repeatability	No more than ±3%
Stability	No more than ±10% within 24 hours
Measurement Cycle	Minimum measurement cycle is 30 minutes; Chromogenic time can be adjusted arbitrarily from 5 to 120 minutes
Sampling Cycle	≤45min
Calibration Cycle	Adjustable at any interval from 1 to 99 days and at any time
Output	4~20mA (2 channels), RS232, RS485
Environmental Requirements	Indoor with adjustable temperature, recommended temperature +5～28℃; Humidity ≤90% (no condensation)
Power Supply	AC220±10% V, 50±10% Hz, 5 A
Dimension	800 mm (H) × 430 mm (W) × 300 mm (D)
Others	1. Abnormal alarm and power failure will not lose data; 2. Touch screen display and command input; 3. After abnormal reset and power recovery, the instrument automatically discharges residual reactants inside and resumes work automatically.

Working Principle

Under neutral conditions, the sample is digested with potassium persulfate to oxidize all phosphorus contained in the sample into orthophosphate. In an acidic medium, orthophosphate reacts with ammonium molybdate. In the presence of antimony salt, phosphomolybdate heteropoly acid is formed, which is immediately reduced by ascorbic acid to form a blue complex. Then, the total phosphorus content in the water sample is measured by photoelectric colorimetry.
