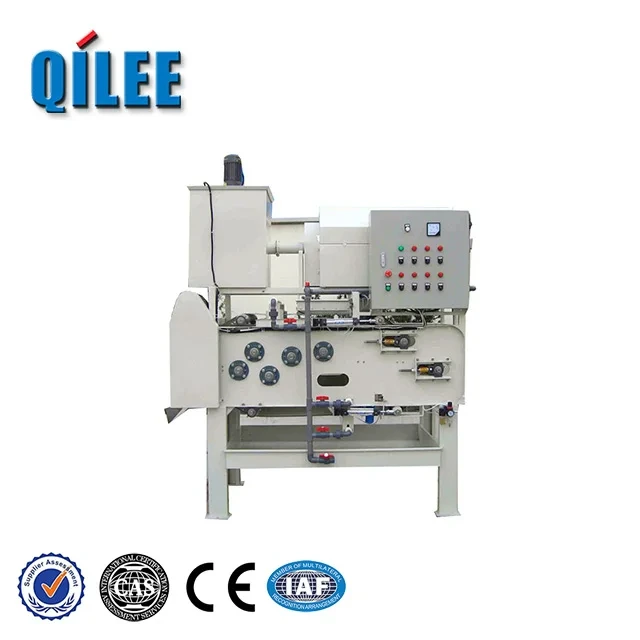

Belt Filter Press for Sugar Mill Sludge, 220V, 1yr MotorCore 1

Belt Filter Press for Sugar Mill Sludge, 220V, 1yr MotorCore 2

Belt Filter Press for Sugar Mill Sludge, 220V, 1yr MotorCore 3

Belt Filter Press for Sugar Mill Sludge, 220V, 1yr MotorCore 4

Belt Filter Press for Sugar Mill Sludge, 220V, 1yr MotorCore 5

Belt Filter Press for Sugar Mill Sludge, 220V, 1yr MotorCore 6

Belt Filter Press for Sugar Mill Sludge, 220V, 1yr MotorCore

This belt filter press dewaters sugar mill sludge, runs on standard 220V power, and comes with a 1-year MotorCore. It delivers fast, high-efficiency solids removal with low energy use for continuous, stable operation. Built tough for heavy-duty use, it’s simple to operate and maintain, saving space, labor, and disposal costs.

brand name:

QILEE

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):15(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Reference Weight(kg)

1100-2480

Water Content's Rate(%)

75~85

Inlet Consistency(%)

6.0-35

Dried Sludge(kg/hr)

35-325

Treating Capacity(m3/hr)

4.7-22.55

Belt Width(mm)

1000-1500

Processing Type

desalination

Power(W)

1 kW

Product name

Sludge Dewatering Machine

Voltage

220 V, 380 V

weight (kg)

2480

productivity

500L/Hour

warranty

1 Year

place of origin

Shanghai, China

core components

Motor

machinery test report

Provided

video outgoing-inspection

Provided

Reliable Efficient Compact Dewatering

The QTAH sludge dewatering machine delivers fast, low-energy sludge-to-cake processing for sugar mills and industrial effluent, producing low‑moisture cakes and stable, safe operation to cut disposal costs and downtime. Built from SUS304 stainless steel with imported Swiss filter cloth, an air‑chamber automatic belt correction and quiet 220V motors (1‑year motor core warranty), it provides durable, low‑maintenance performance with noise under 75 dB(A). Its compact footprint and high‑quality finish ship in standard export cartons with a typical 3–20 day delivery window, enabling rapid installation and reliable onsite operation.

220V Robust Dewatering Solution

The QTAH sludge dewatering machine is a belt filter press constructed from SUS304 stainless steel with Swiss-imported filter cloth, an air-chamber automatic belt alignment device and a durable 220V motor backed by a 1yr MotorCore warranty to ensure corrosion resistance and reliable continuous operation. Designed for sugar mill sludge and broad industrial or municipal wastewater streams, it delivers high throughput, low energy consumption, low noise (≤75 dB(A)), integrated safety monitoring and significantly reduced cake moisture (typically 75–85% water content) for efficient, low-maintenance dewatering. Its structural features—adjustable drum thickener, lower filtrate collecting tray, compatibility with polymer dosing and compact external footprint—provide flexible onsite installation, effective washing and stable belt running for continuous effluent treatment.

Efficient 220V Sludge Dewatering

The QTAH sludge dewatering machine is a robust belt filter press engineered for sugar mill effluent, made from SUS304 stainless steel and fitted with imported Swiss filter cloth for durable, effective separation and washing. It features an air-chamber automatic deviation correction, low energy consumption, safety monitoring and quiet operation (≤75dB(A)), producing low-moisture cake (75–85% water content) across multiple capacity models. Operating on 220V with a 1-year motor core coverage, it easily integrates with sludge pumps, polymer dosing and washing pumps or air compressors for complete processing.

◎ product nicety 1

◎ product nicety 2

◎ product nicety 3

Efficient Reliable High-Capacity Dewatering

The QTAH sludge dewatering machine Belt Filter Press for sugar mill sludge (220V, 1yr MotorCore) is the result of decades of industrial wastewater engineering and rigorous quality control, built with corrosion-resistant materials and precision components to withstand continuous high-load operation. Designed to deliver stable, continuous dewatering, it couples an energy-efficient 220V drive with automated belt tensioning and PLC-assisted control to maximize solids capture, shorten drying times, and simplify onsite maintenance. Key features and advantages include a heavy-duty steel frame, adjustable multi-layer filter belts, low-noise drives, easy-access maintenance panels, high compression zones for superior dryness, reduced disposal volumes and costs, and the assurance of a one-year MotorCore warranty.

Material introduction

The QTAH sludge dewatering machine is constructed primarily from SUS304 stainless steel, giving it high strength, excellent corrosion resistance and a rust-free finish suited to sugar mill environments. Its filtration system features imported Swiss filter cloth for superior separation performance, long service life and easy cleaning. Key contact components and structural parts are engineered for low maintenance and durability, ensuring stable operation and reduced wear in continuous dewatering applications.

◎ SUS304 Main Structure

◎ Swiss Filter Cloth & Air-Chamber

◎ Drive, Trays & Safety Systems

FAQ

What is a Belt Filter Press for Sugar Mill Sludge and is it suitable for my sugar mill’s sludge?

A belt filter press is a mechanical dewatering machine that separates water from sludge by flocculation, gravity drainage and progressive belt squeezing. The “Belt Filter Press for Sugar Mill Sludge, 220V, 1yr MotorCore” is designed to handle organic, fibrous sludge typical of sugar mills (clarifier sludge, juice clarification solids, washwater solids). It reduces sludge volume, recovers filtrate for reuse, lowers transport/disposal costs and helps meet disposal or land-application requirements when properly configured.

What are the electrical and warranty details I should know?

This model is built for a 220V supply (confirm single-phase or three-phase requirement with the vendor for your specific unit). The “1yr MotorCore” indicates the motor core (manufacturing/functional coverage for the motor assembly) is warranted for one year—check the supplier’s warranty document for exact terms, exclusions (consumables, wear, misuse) and claim procedures.

What dewatering performance can I expect (cake solids and throughput)?

Performance depends strongly on feed solids concentration, sludge type (fibrous vs. fine colloidal), pre-thickening, and polymer/flocculant selection. Typical sugar mill results often fall in the range of about 15–30% total solids in the cake under normal conditions; with optimized polymer dosing, pre-thickening and pressure settings, higher solids (toward 30–35%) may be achievable. Throughput varies by unit size—confirm rated capacity with your supplier and provide your sludge flow and solids load for an accurate match.

What ancillary equipment and installation requirements are needed?

Typical installation requires a feed pump and hopper or surge tank, a flocculation/mixing tank with a polymer dosing pump, a level concrete support or steel skid, proper power supply (220V as specified), filtrate plumbing and a cake discharge conveyor or bin. Allow space for operator access, safety guards and routine maintenance. Confirm site utilities (power, water, drainage) and foundation load-bearing requirements with the vendor.

What routine operation and maintenance tasks should my team perform?

Daily: monitor polymer system and dose rates, visually check belt condition, clean soiling and debris off belts, inspect for leaks and check filtrate clarity. Weekly/biweekly: check belt tension/tracking, inspect rollers and bearings, test safety interlocks. Periodically (per manual): replace wear items (filter cloths/belts, scraper blades), lubricate bearings and check motor mounts. Keep a small stock of critical spares (belts, bearings, scraper blades, polymer lines) and follow the manufacturer’s maintenance schedule.

What are common problems in sugar mill applications and how are they resolved?

Common issues include poor cake dryness, belt blinding/clogging, tracking problems and high polymer consumption. Typical fixes: run jar tests to select/adjust flocculant type and dose; increase pre-thickening or surge capacity; clean or replace the filter cloth if blinded; adjust belt speed and press roller pressure; ensure even feed distribution; and verify polymer mixing/delivery equipment works correctly. For persistent mechanical issues, follow the troubleshooting guide in the manual and contact your supplier or technician.
