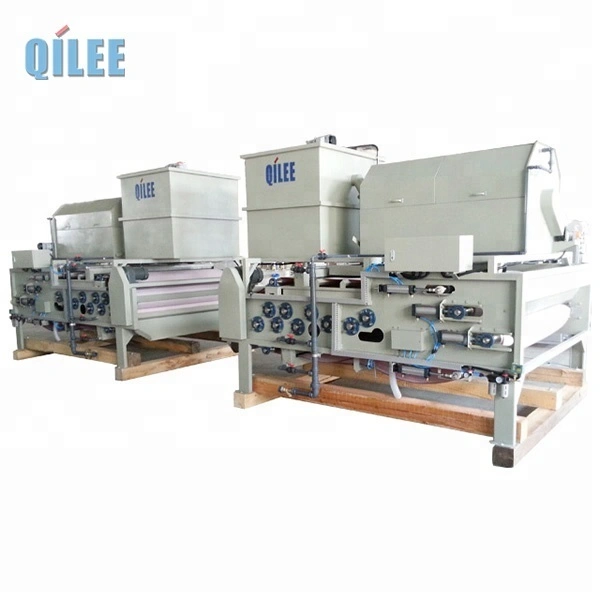

Industrial Wastewater Belt Press Filter - Dewatering, 1yr

The Industrial Wastewater Belt Press Filter is a machine that squeezes sludge to separate water and solids for dewatering. It gives steady, high-capacity performance with low energy use, simple controls, and easy cleaning to cut waste volume and disposal costs. With a one-year warranty and durable parts, it saves space, lowers handling costs, and delivers fast, reliable results.

Shipping:

Support Sea freight

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):30(days),>1(sets):To be negotiated(days)

Place of Origin:

China

Inquiry

Write a Review

Reference Weight(kg)

1210

Powder Consumption(kw)

1.11

Water Content's Rate(%)

75~84.5

Inlet Consistency(%)

1.5~2.5

Dried Sludge(kg/hr)

98~158

Treating Capacity(m3/hr)

6.5~10.5

Belt Width(mm)

1000

Dimensions(mm)

2600*1550*2350

Processing Type

desalination

Power(W)

1 kW

Product name

Dewatering Machine Price

Voltage

220 V, 380 V

weight (kg)

100

productivity

500L/Hour

warranty

1 Year

Efficient Dewatering, Durable Design

Deliver consistent, high‑capacity sludge dewatering with low energy use and reduced operating costs, producing low‑moisture cakes for industrial and municipal wastewater treatment. Built from corrosion‑resistant SUS304 with Swiss filter cloth, automatic cloth deviation and safety monitors, the compact belt design (available in multiple widths) rivals Screw Press systems in reliability, ships in standard export packing and includes a 1‑year warranty. Easy to operate and maintain with low noise and maintenance costs, quick delivery and seamless integration with dosing pumps and sludge handling equipment help you meet discharge standards.

Reliable 1-Year Dewatering System

This Industrial Wastewater Belt Press Filter - Dewatering, 1yr combines a robust SUS304 stainless steel frame, imported Swiss filter cloth and an air-chamber automatic deviation correction device to ensure stable, low-noise (≤75 dB) continuous operation and consistently low-moisture cake discharge. Designed for sludge dewatering and slurry–water separation across industrial, municipal and food sectors, the system delivers high efficiency with low energy consumption, flexible operation, low maintenance costs and a choice of models covering belt widths from 500–2000 mm to match treating capacities and dried sludge rates. Its modular structure integrates belt filter components, adjustable motors, lower filtrate collection trays and optional Screw Press elements for enhanced dewatering performance, while safety monitors and automatic stops protect operators and extend service life.

Industrial Dewatering Belt Press

This industrial belt press filter for wastewater dewatering features SUS304 stainless steel construction, Swiss-imported filter cloth, and an air-chamber deviation correction device for durable, stable operation and low moisture cake. It delivers low energy consumption, quiet performance (≤75dB(A)), automatic safety monitoring and a range of models to handle sludge from industrial, municipal, food, chemical and livestock sources. Optional configurations include a Screw Press and complementary equipment such as belt and screw filter presses, dosing systems and sludge dryers to match specific treatment needs.

◎

Efficient Reliable Durable Low-Maintenance

Backed by decades of wastewater equipment expertise and a one-year warranty, the Industrial Wastewater Belt Press Filter delivers rugged construction and precise engineering for continuous dewatering. A high-efficiency Screw Press mechanism accelerates solids conveyance and lowers cake moisture while integrated PLC controls and corrosion-resistant components reduce maintenance and unplanned downtime. Compact footprint, energy-efficient drives, adjustable belt tensioning, and modular design provide easy installation, scalable throughput, and lower disposal costs for compliant effluent management.

Material introduction

Main structural components are fabricated from SUS304 stainless steel, providing high strength, corrosion resistance and a rust-free finish for prolonged industrial use. The filtration media uses Swiss-imported filter cloth and chemically resistant elastomers in seals and air-chamber parts to ensure durable, high-performance dewatering with low maintenance. The machine is compatible with Screw Press accessories and employs reinforced wear plates and sealed bearings to withstand abrasive sludge and extend operational life.

◎ Main Structure (SUS304 Stainless Steel)

◎ Filtration Media & Mechanical Parts (Swiss Cloth & Reinforcements)

◎ Supporting Systems (Energy, Seals & Safety)

FAQ

What kinds of industrial wastewater and sludge is the Industrial Wastewater Belt Press Filter suitable for?

The belt press is designed for low- to medium-solids sludges typical of many industries: municipal primary and secondary sludge, food & beverage, breweries, pulp & paper, textile, landfill leachate solids, some mining and mineral sludges, and oily or chemical-process sludges after primary separation. It handles feed total solids typically from about 0.5% up to ~8% (higher with upstream thickening). Very fine colloidal or highly viscous slurries may require additional conditioning or alternate technologies.

What pretreatment and conditioning are required for reliable operation?

Typical pretreatment includes screening/grit removal, equalization, pH control, and thickening where needed. Chemical conditioning—cationic or anionic polymers dosed via a flocculation/mixing system—is commonly required to form flocs that drain on the belt. For oily or chemically complex sludges, oil separation, pH adjustment or coagulation may be necessary before the belt press.

What performance can I expect (cake dryness, solids capture, throughput)?

Performance depends on sludge type and conditioning, but common ranges are: cake dryness (solids in discharged cake) roughly 18–35% TS; solids capture (total solids reduction in filtrate) typically 90–98%; throughput varies by model and belt width but is sized to your required dry solids/hour. Exact results require a feed characterization test and pilot or lab trials.

How is the machine operated and controlled in everyday use?

Most units run continuously with automated PLC control: adjustable feed pump rate, polymer dosing, belt speed and tension, and nip/roller pressures. Operators monitor feed quality, polymer usage, belt condition and filtrate clarity. Routine tasks include checking levels, topping polymer system, cleaning belts/scrapers, and confirming alarms. Training for operators is normally provided at start-up.

What maintenance should I plan for during the 1-year warranty period and beyond?

Daily/weekly checks: belt alignment/tension, scraper condition, roller bearings, hydraulic and drive components, polymer system, and general cleanliness. Monthly: inspect wear areas, fasteners, and electrical connections. Belts and scraper blades are wear items and may need replacement depending on duty—keep critical spares (belt, bearings, scraper blades, seals, drive belts). The 1-year warranty commonly covers manufacturing defects; routine wear parts and damage from improper operation are excluded—confirm specifics with your supplier.

Where can the machine be installed and what site requirements should I prepare for?

The belt press can be installed indoors or outdoors (with weather protection), in municipal plants, industrial works, temporary sites, or mobile dewatering stations. Site needs include a level concrete pad or steel frame, adequate power supply, clean water for belt washing, drains for filtrate, space for polymer storage and mixing, and access for maintenance and cake removal. For cold climates, provide freeze protection for chemical systems and wash water. Coordinate with suppliers for foundation, utilities, and lifting/installation requirements.
